Water heater mounting methods

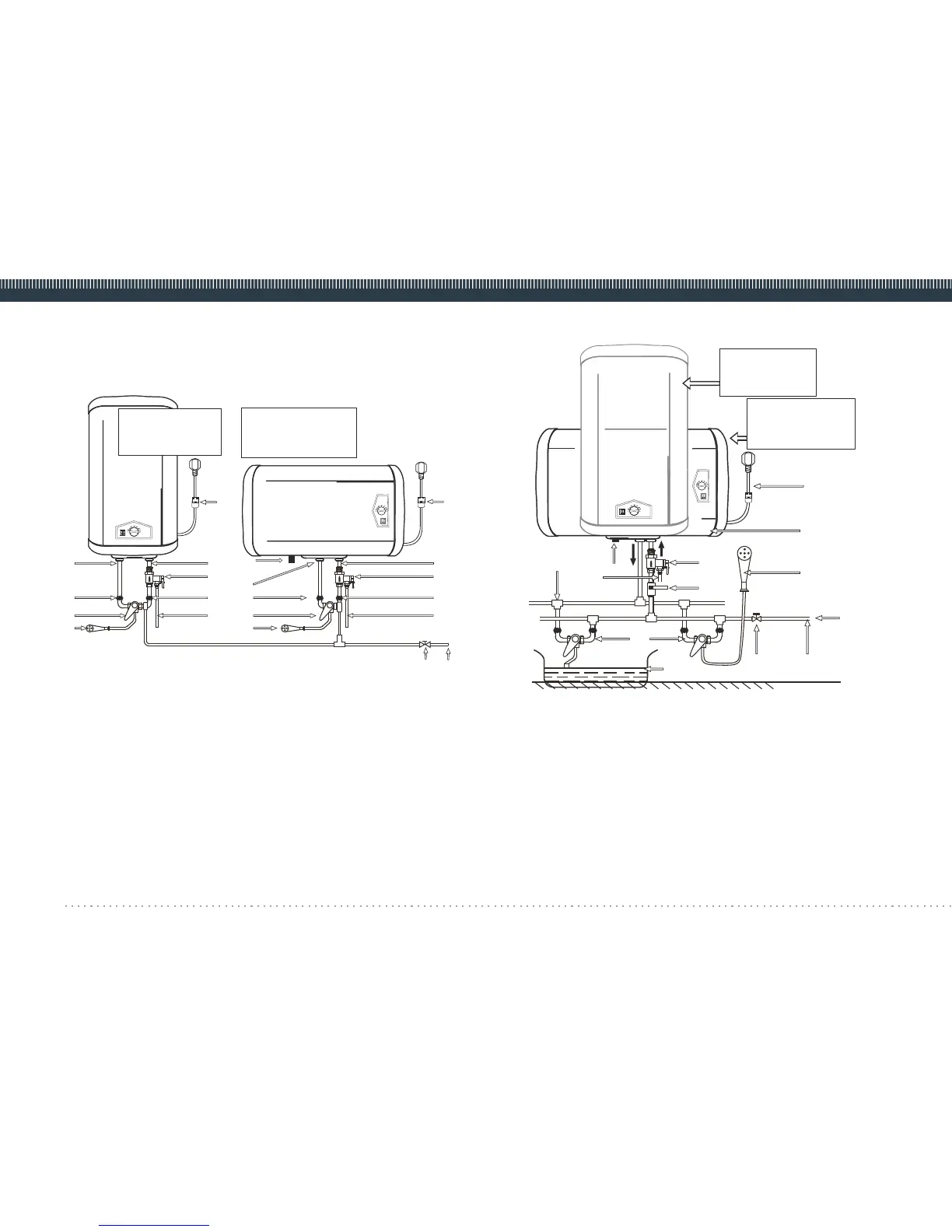

Fig.5 shows the way to mount the water heater for one consumption
point.
Fig. 5
FE1/FS1/FS5
Vertical position
FE2/FS2/FS6
Horizontal position
1. Power cord with GFCI**
2. Water outlet
3. Hot water supply adjustment cock*
4. Mixer*
5. Shower header*
6. Cold water supply adjustment cock*
7. Discharge pipe
8. Composite pressure-relief valve
9. Water inlet
10. Magnesium anode water discharge nozzle
11. Water main shut-off valve
12. Water main
* not included in the delivery set
** Depending on the product batch, GFCI can be located not within the power cable
electric plug.
1
6*
10*
11*
12
9
8
7*
5*
4*
3
2
Fig.6 shows the way to mount the water heater for one consumption point.
water main
FE1/FS1/FS5
Vertical position
FE2/FS2/FS6
Horizontal position
Fig. 6
. Power cord with GFCI**
2. Mounted water heater
3. Composite pressure-relief valve
4. Cold water supply valve*
5. Mixer*
6. Shower header*
7. Water main shut-off valve
8. Discharge pipe
9. Water main
10. Bath*
11. T-joint*
12. Magnesium anode water discharge nozzle
* not included in the delivery set
** Depending on the product batch, GFCI can be located not within the power cable
electric plug.
water drainwater drain
www.timberk.com storage water heater
