7. WATER HEATER CONTROL
1. Handle will be used for temperature setting.
2. Switcher will be used in order to choose power modes.
1. Handle will be used for temperature setting.
2. Switcher will be used in order to choose power modes.
* Color and design of device panels can be revised without any special notice.
Fig. 10
. 11
for series FS2
IMPORTANT!
To provide reliable operation and safe use of the water heater, prior
to the first run check if it is properly connected to the 220V AC
mains. The water heater to be connected must be securely linked
with the earth circuit of your electric mains. If the water heater is not
grounded, then in case of a short circuit GFCI, supplied with the
heater, may not operate. It is dangerous.
1. Connect the cable to the mains, indicator (1) will light up.
2. Press button (2) for testing, voltage will be cut off, indicator (1) will
light down and restart button (3) will go upwards.
3. Press button (3) to restart the appliance, voltage will be restored and
indicator (1) will light up.

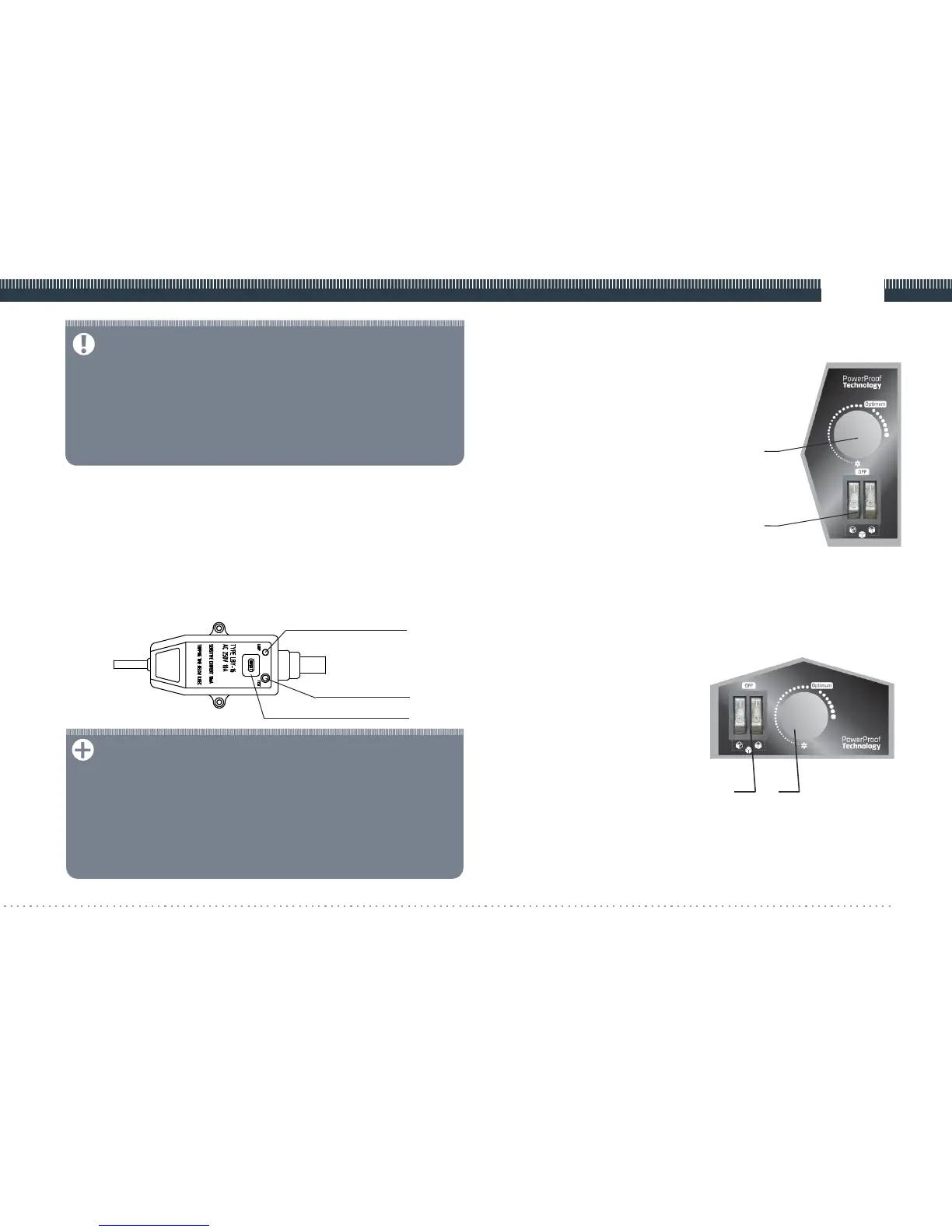

GFCI (Ground Fault Circuit Interrupter) (Fig. 9)
NOTE:
-- if pressing test button (2) voltage is not cut off and/or indicator (1)
continues to be lighted, it means that GFCI safety device is not
operating properly.
- if pressing restart button (3) voltage is not restored and/or indicator (1)
doesn't light up, it means that the water heater is not operating
properly. In both cases disconnect the water heater and call the service
center.
- to reduce the risk of an electric shock, do not disassemble, remove or
fill liquid in this appliance.
Fig. 9
GFCI operation indicator light (1)
TEST button (2)
Restart button (3)
13
