www.timberk.com storage water heater
14
1
2
4
5
3

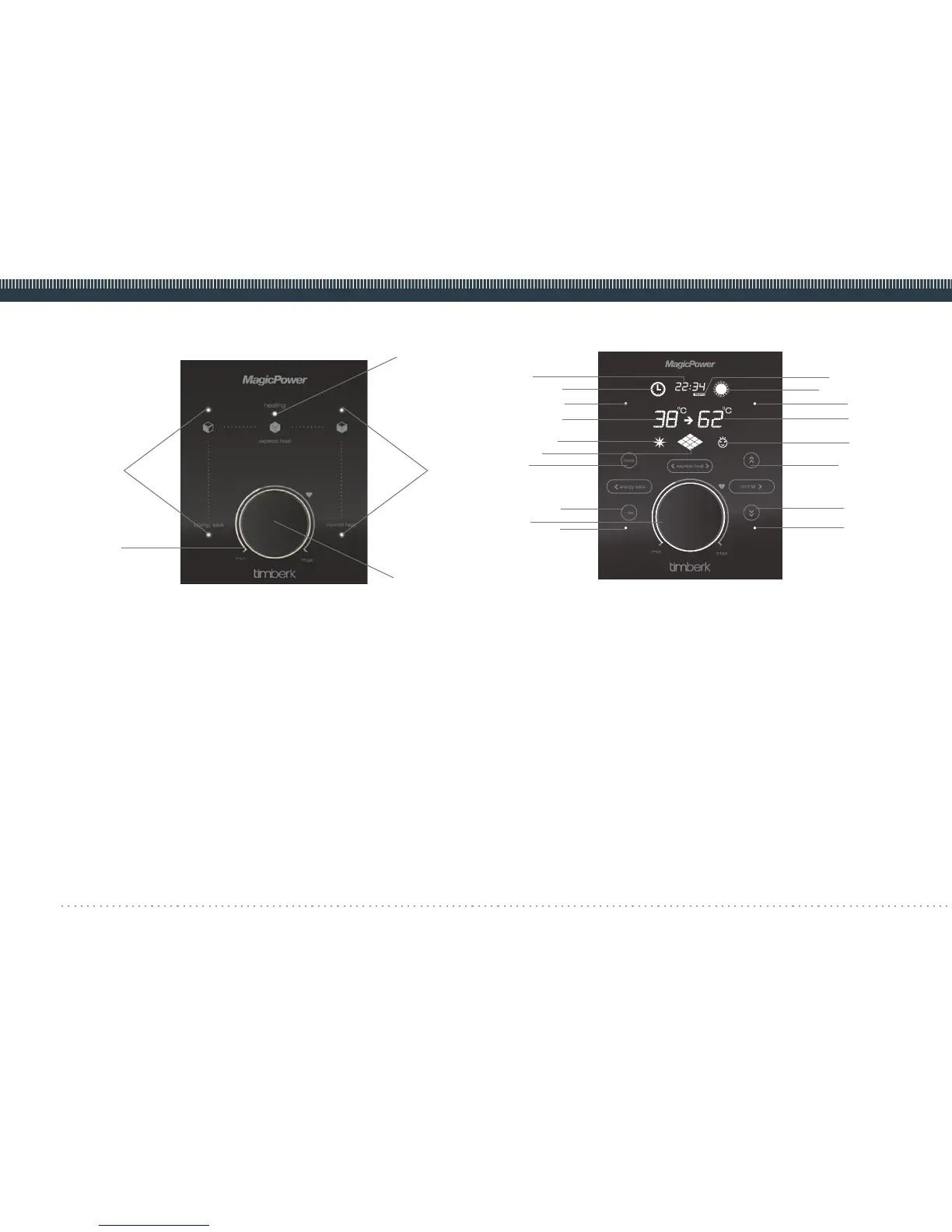

Fig. 12
Control panel (for FE1/FE2 series)
1. Heating indicator
It lights up when heating is on.
2. Energy save indicators
They light up when selecting low heating power (800 W).
3. Normal heat indicators
They light up when selecting medium heating power (1200 W).
4. Temperature indicator lights
They show the current or set water temperature.
5. Temperature controller handle
It is used to switch on/off the appliance, set the desired heating
temperature, as well as select low heating power energy save (800 W),
medium heating power normal heat (1200 W), high heating power
express heat (2000 W).
When pressed, the temperature controller handle also performs the
ON/OFF button function.
Control panel (for FS5/FS6 series)
1
2
3
4
5
6
7
8
9
3
2
10
11
12
13
14
15
11
Fig. 13
1. Time indication
2. Timer activation indicator
It lights up when water heater on/off timer is activated.
3. Energy save indicators
They light up when selecting low heating power (800 W).
4. Water heater water temperature indicator
5. Mode button
It is used to set time and timer, as well as lock the control panel.
6. Night heating activation indicator
7. Heating power indicator
8. Timer button
It is used to activate timer and night heating.
9. Temperature controller handle
It is used to switch on/off the appliance, set the desired heating
temperature, as well as select low heating power energy save (800 W),
medium heating power normal heat (1200 W), high heating power
express heat (2000 W).
When pressed, the temperature controller handle also performs the
ON/OFF button function.
10. Water heating indicator
