7
www.timberk.com Storage water heater
ENGLISH
4. WATER HEATER DESCRIPTION

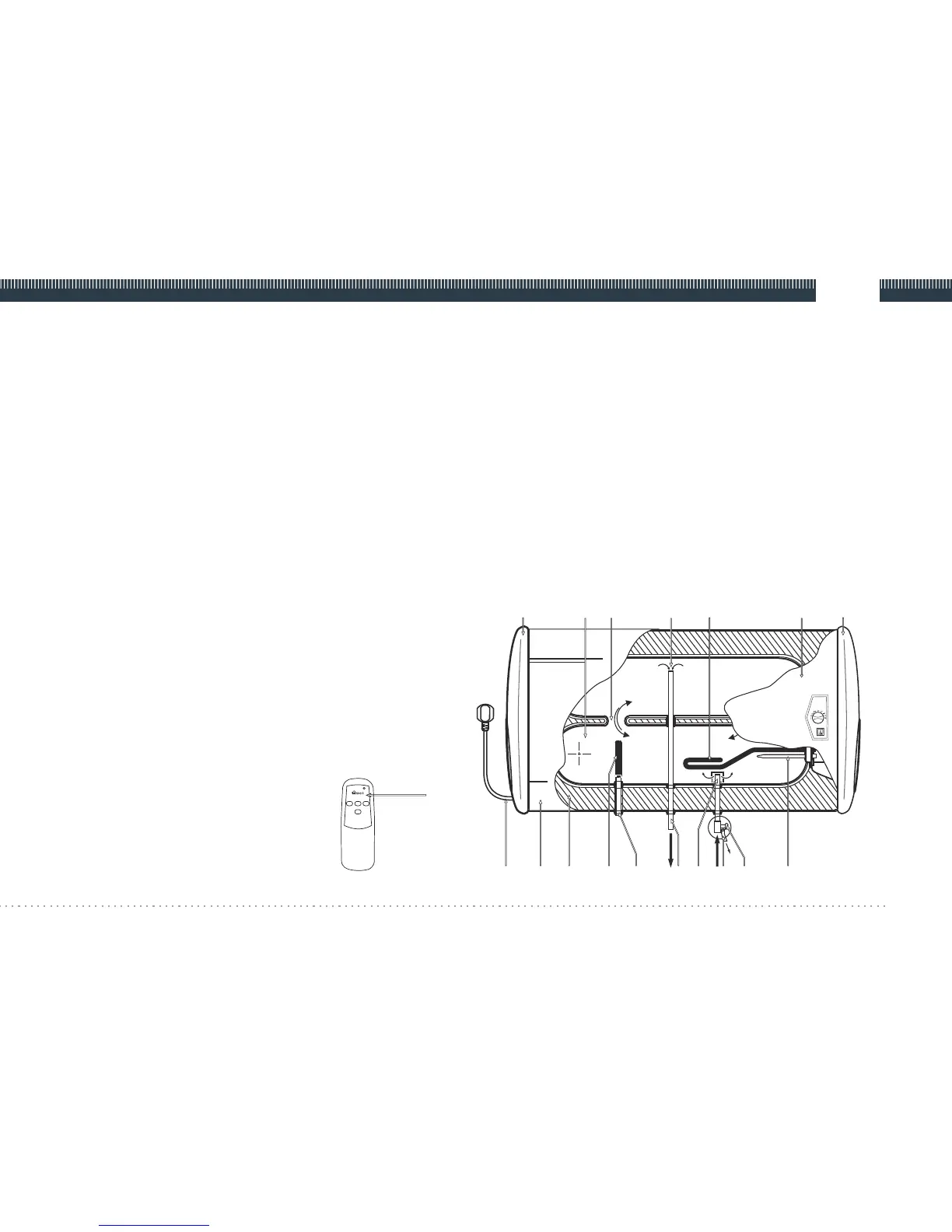

Fig.3 shows the design of the horizontal-type water heater. Example is FS
series.
FS2/FS6/FE2 series
1
2
3 4 5
17
6
17
1 left composite protective cover
2 water containing tanks
3 system of flows between tanks (3 overflows)
4 the upper part of the hot water intake tube
5 heating element
6 right composite protective cover
7 temperature sensor case
8 composite pressure safety valve (be sure to install onto the cold water supply
tube) Pos. A
9 emergency discharge of surplus water pressure (a small water leakage is
possible from the emergency discharge hole when the water heater is operating. It
is normal)
10 inlet nozzle with a splitter
11 hot water outlet nozzle
12 emergency water discharge nozzle (can be used for water discharge during
cleaning of the internal tank surface upon its maintenance and anode
replacement)
13 protective magnesium anode
14 urethane foam heat insulation layer
15 external decorative case
16 power cable with GFCI*
17 remote control (FS6 series)
* Depending on the product batch, GFCI can be located not within the power
cable electric plug.
outlet
inlet
78910111213141516
Fig. 3
