FS1/FS5/FE1 series

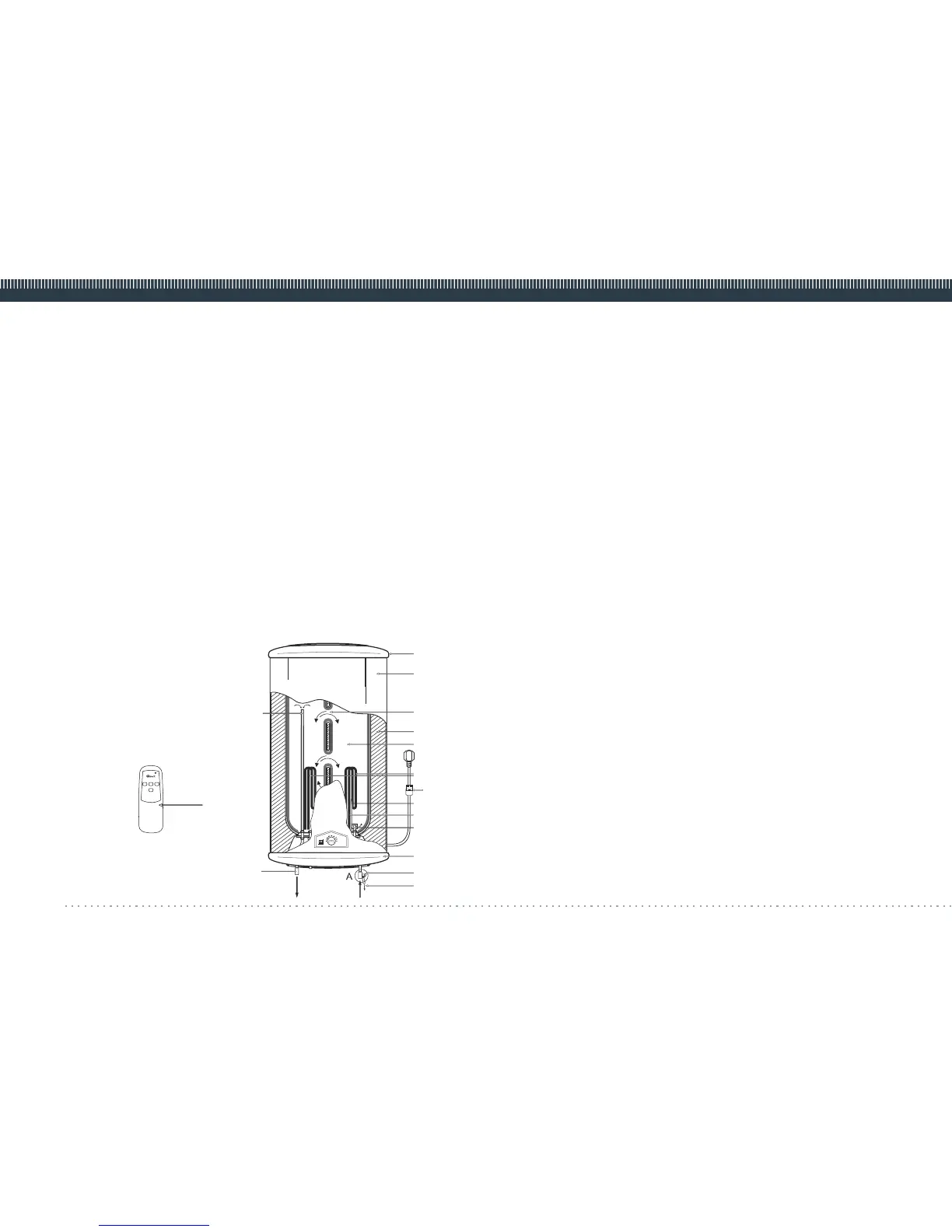

Fig. 4
1
2
3
4
5
6
7
9
8
10
11
12
13
16
14
15
1 the upper composite protective cover
2 external decorative case
3 system of flows (3 overflows)
4 urethane foam heat insulation layer
5 internal tank
6 heating element
7 power cable with GFCI*
8 thermostat sensor pipe
9 protective magnesium anode
10 inlet nozzle with a splitter
11 the lower composite protective cover
12 composite pressure safety valve (make sure to install onto the cold
water supply tube) Pos. A
13 emergency discharge of surplus water pressure (a small water
leakage is possible from the emergency discharge hole when the water
heater is operating. It is normal)
14 hot water outlet nozzle
15 the upper part of the hot water intake tube
16 remote control (FS5)
* Depending on the product batch, GFCI can be located not within the power cable electric plug.
inlet
outlet
