Timberk T-PAC07-P12E - Page 37

IM2023
37

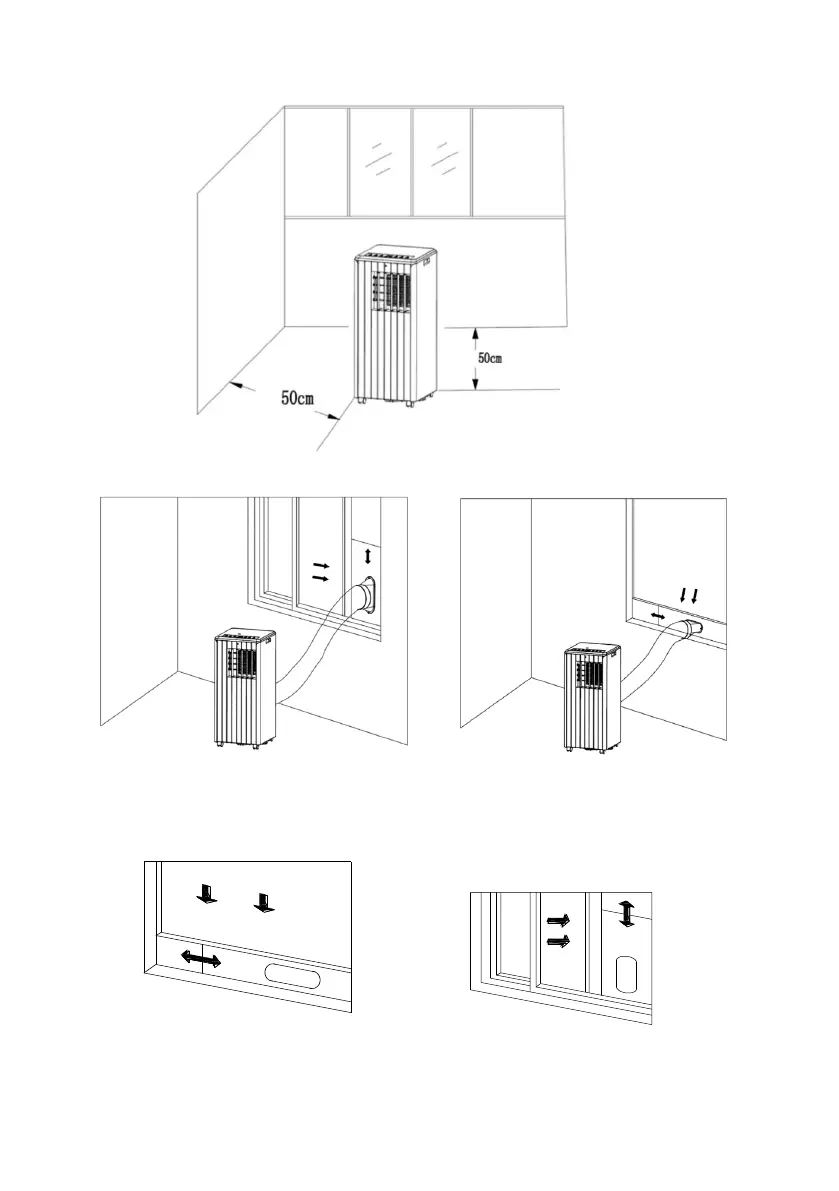

2.2. Adjust the length of the sealing plate according to your window size and fix it.
2.3. Install the air duct hose connection adapter onto the sealing plate
Fig. 3
Fig. 4
2.4. Keep the ventilation of the exhaust pipe not blocked.
Fig. 5 Fig. 6
