7. DEVICE INSTALLATION
Warning: before using the mobile air conditioning, keep it upright for at least two
hours.
The air conditioning can be easily moved in the room. In the moving process, ensure
that the air conditioning is in the upright position and the air conditioning should be
placed on a flat surface. Do not install and use the air conditioning in the bathroom or
other humid environments.

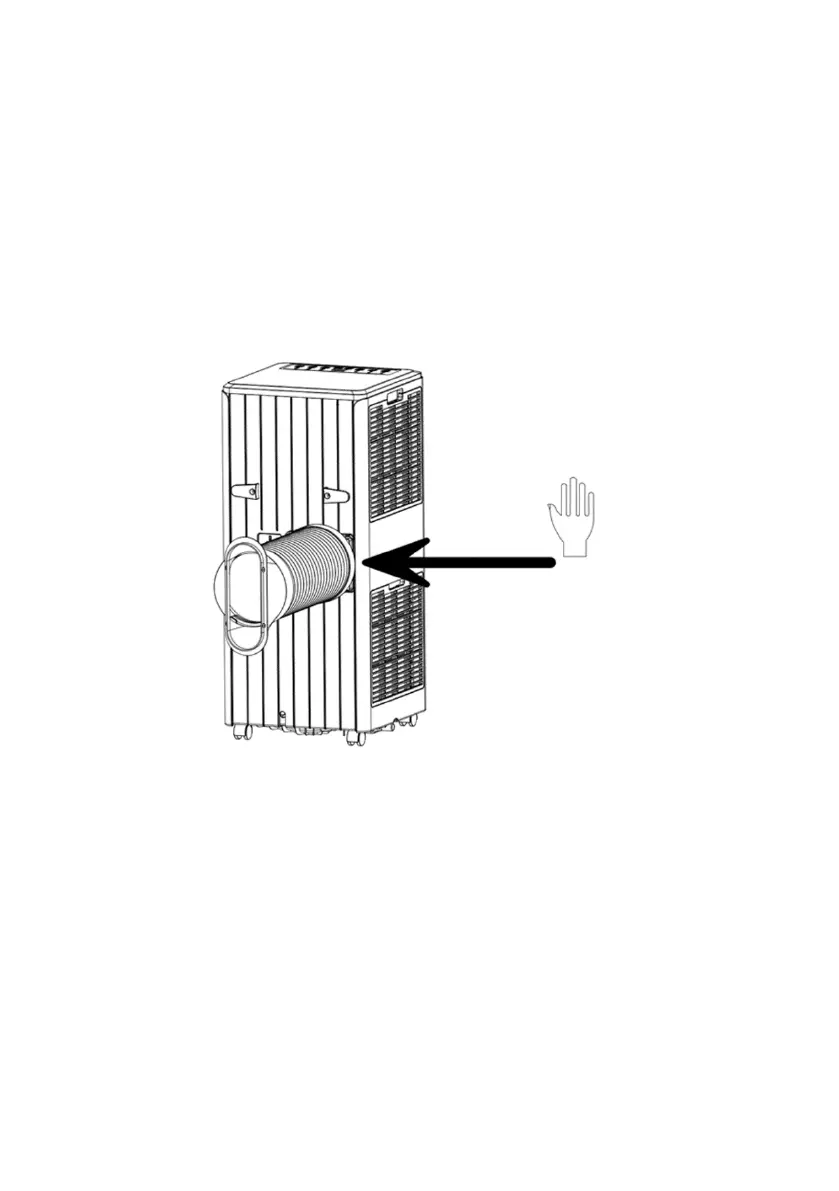

1. Air duct installation (See Fig. 2）
Fig. 2
1.1. Unpack the duct hose and connection adapters
1.2. Install connector adapters on both ends of the hose. To do this, screw the end of
the hose counterclockwise, first onto one adapter, then screw the other end of the hose
onto the second adapter.
1.3. Install the connection adapter to the device. To do this, insert it into the special
slots at the ventilation hole in the back of the case.
2. Installation of components for a compartment window
2.1. Open the window halfway and install the assembled sealing plate on the window
(as shown in fig. 3 and fig. 4). Components can be placed in horizontal and vertical
directions.
