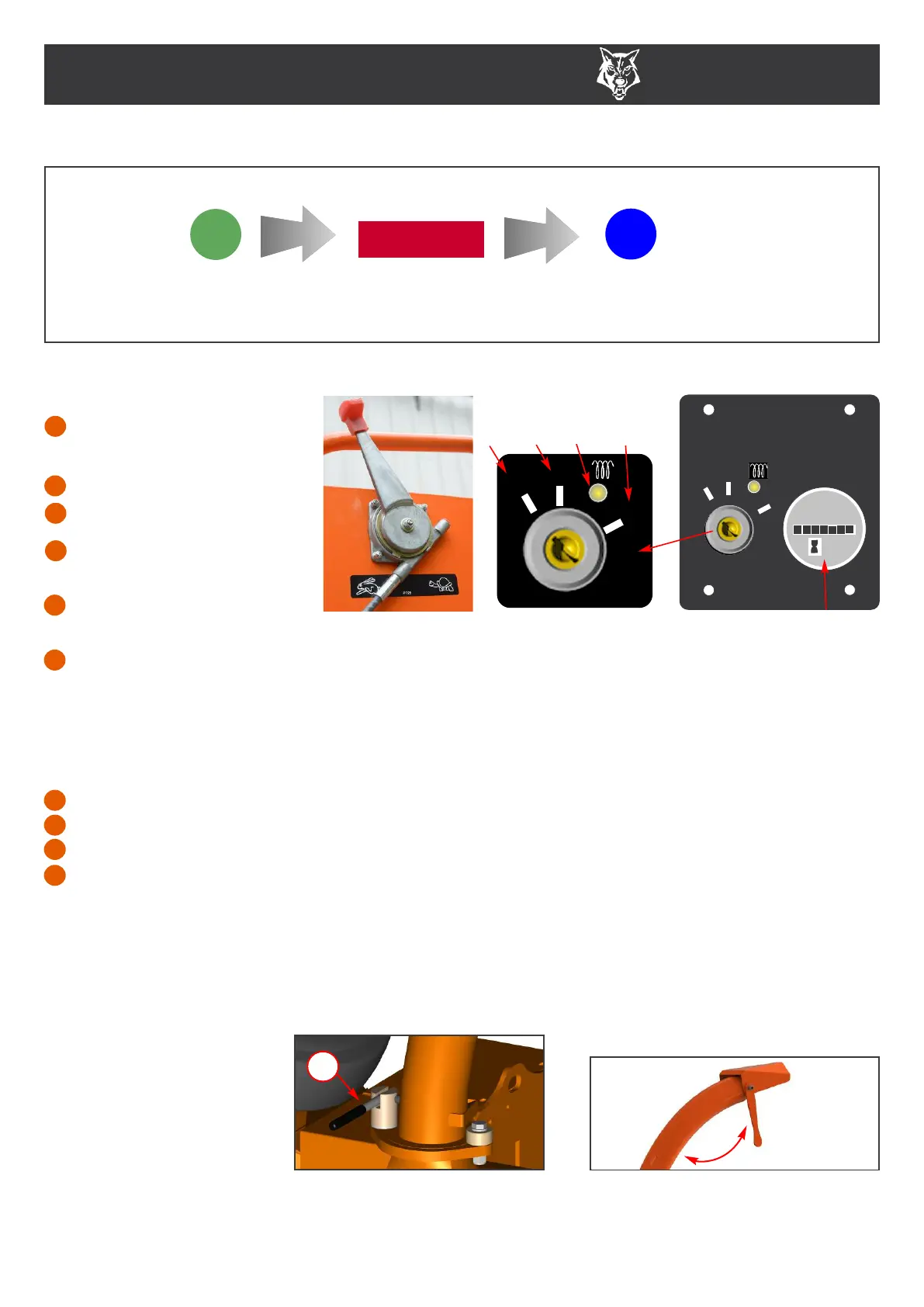

BEFORE USING THE CHIPPER
STARTING THE ENGINE
STOPPING THE ENGINE
OPERATING INSTRUCTIONS
ENSURE throttle lever is in
the slow (tortoise) position.
INSERT key. Turn to heat.
HEATER LED comes on.
WAIT FOR HEATER LED
TO GO OUT.
TURN key to engage starter
motor.
RELEASE key once engine
starts.
0
1
2
HOURS
0
0
0
0
0
0
0
HOURS COUNTER
START
H
EAT
OFF
O
N
0
1
2
Do not engage starter motor for more than 20 seconds - allow one
minute before attempting to start. Investigate reasons for failure to
start.
ROTATION
1. Slacken nut using
integral handle.
2. Rotate tube.
3. Retighten nut.
1
DISCHARGE CONTROLS
Controlling the discharge is an essential part of safe working.
BUCKET ANGLE
4. Adjust the bucket to the desired
angle using the handle provided.
MOVE the throttle lever to the ‘Tortoise’ to reduce the engine speed to idle.
LEAVE the engine running for 1 minute.
TURN the power switch to position 0. The engine should stop after a few seconds.
REMOVE the ignition key.
For more detailed information refer to the Engine Owner’s Manual
3
1
2
PRESS THE GREEN
BUTTON
THE IN-FEED
SHOULD TURN FORWARDS
PRESS THE RED
SAFETY BAR
THE IN-FEED
SHOULD STOP
PRESS THE BLUE BUTTON
THE IN-FEED SHOULD TURN
BACKWARDS ONLY WHILE THE
BUTTON IS PRESSED
WITH THE ENGINE RUNNING AT FULL SPEED
