Timberwolf TW230DHB - Hydraulic System Components; Hydraulic System Parts List

TIMBERWOLF
TW 230DHB
45

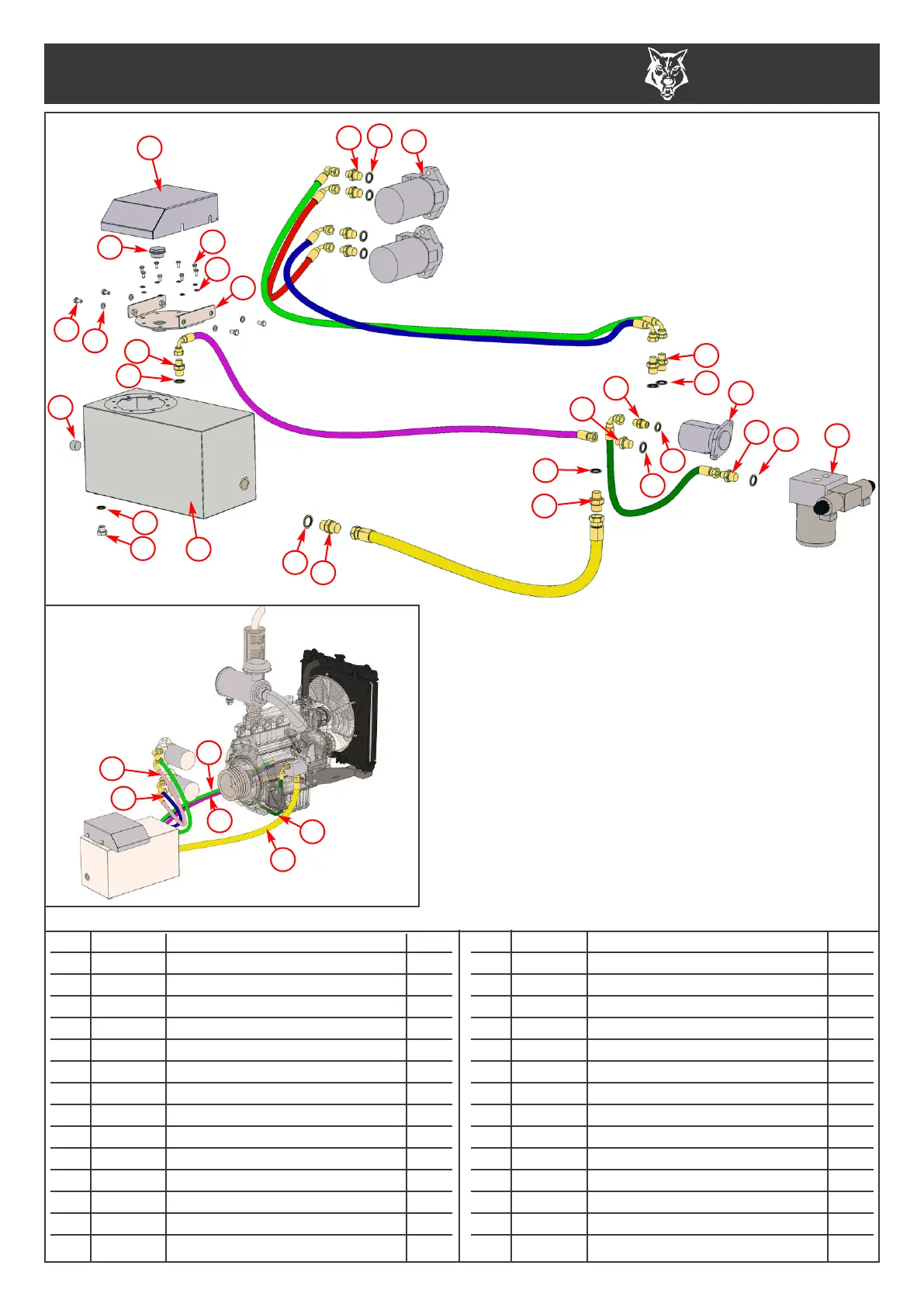

HYDRAULICS
ITEM PART NO DESCRIPTION QTY
1 P*816F Hose Guard 1
2 0026 Adaptor mm 1/2”- 3/8” BSP 8
3 0398 Washer Dowty 1/2” 8
4 2982B Hydraulic Motor 2
5 19272 Filler Cap 1
6 1658 M6/12 Bolt 8
7 0709 M6 C Washer 8
8 P*1079F Top Plate 1
9 0344 M8/16 Bolt 4
10 0712 M8 C Washer 4
11 4219 3/4” Tapered Blanking Plug 1
12 0396 Washer Dowty 3/8” 2
13 0211 3/8” BSP Plug 1
14 P*1703 Hydraulic Oil Tank 1
ITEM PART NO DESCRIPTION QTY
15 0152 Washer Dowty 3/4” 1
16 1766 Adapter 3/4” - 3/4” BSP 1
17 1583 Adaptor 1/2”- 3/4” BSP 1
18 0161 Adaptor mm 3/8”- 3/8” BSP 1
19 1660 Hydraulic Pump 1
20 P*553 Directional Control Valve (DCV) 1
21 P*1115 3/4” Hose 1
22 P*1118 3/8” Hose 1
23 P*1116 3/8” Hose 1
24 P*1120 3/8” Hose 1
25 P*1117 3/8” Hose 1
26 P*1119 3/8” Hose 1
27 P*1454 Return Pipe 1
