3
TIMBERWOLF
TW 230DHB
The TW 230DH(a) chipper has the ability to adjust the towhead height to correspond with the
vehicles towing point.
The preferred towing angle of any chipper is with
the chassis level to the ground. The adjustable
head has the ability to move between 320mm from
the ground to 810mm giving an overall adjustment
of 490mm.
The adjustable towhead fundamentally works the
same as a fixed standard towhead, however the
front section of the head is retained in position via 2
locking rings.
To adjust the height the locking handles located on
the side of the head (1) are turned in an anticlockwise direction to allow for the locking ring to
disengage from its apposing ring. Once the desired height has been achieved the locking handles
are turned clockwise until tight. The latching of the hitch is as normal as is the fitting of the light plug
and breakaway cable as outlined in the ‘Hitching onto the tow ball’ section on page 9.
1

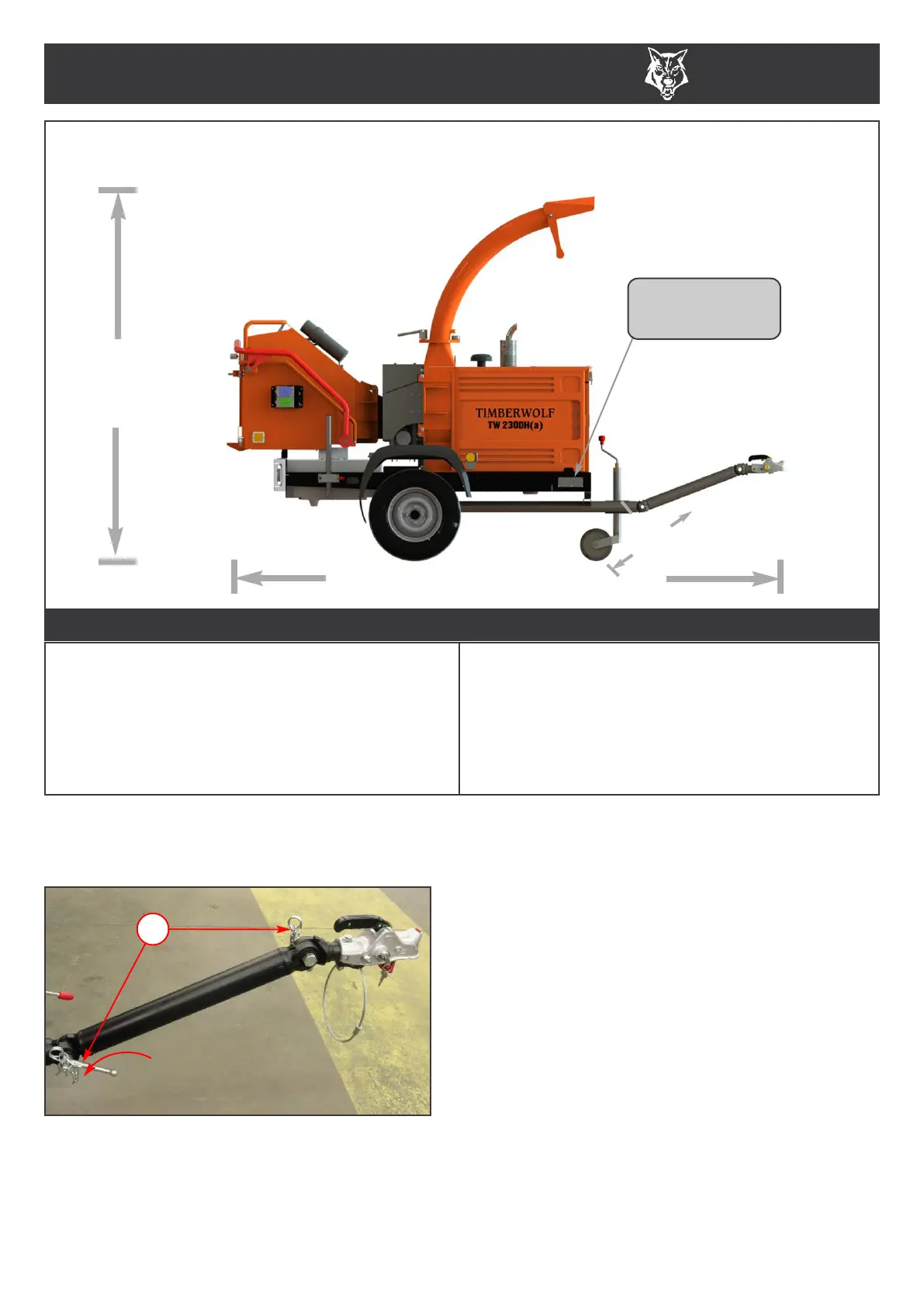

DIMENSIONS - WITH ADJUSTABLE TOWHEAD
TIMBERWOLF TW 230DH(a) (ADJUSTABLE TOWHEAD) SPECIFICATION
Serial No. Location
The serial number can be
found on the identification plate
located on the chassis beam.
ADJUSTING THE TOWHEAD HEIGHT
3500mm (tray up) 3905mm (tray down)
1
5
10
m
m
2191 mm
Engine type: Kubota 4-cylinder diesel
Maximum power: 26kW (35hp)
Cooling method: Water cooled
Overall weight: 749kg
Starting method: Electric
Roller feed: Twin hydraulic motors
Maximum diameter material: 160mm (6
1
⁄3 ")
Fuel capacity: 18 litres
Hydraulic oil capacity: 15 litres
Material processing capacity: up to 5 tonnes/hr
Fuel type: Diesel
