4

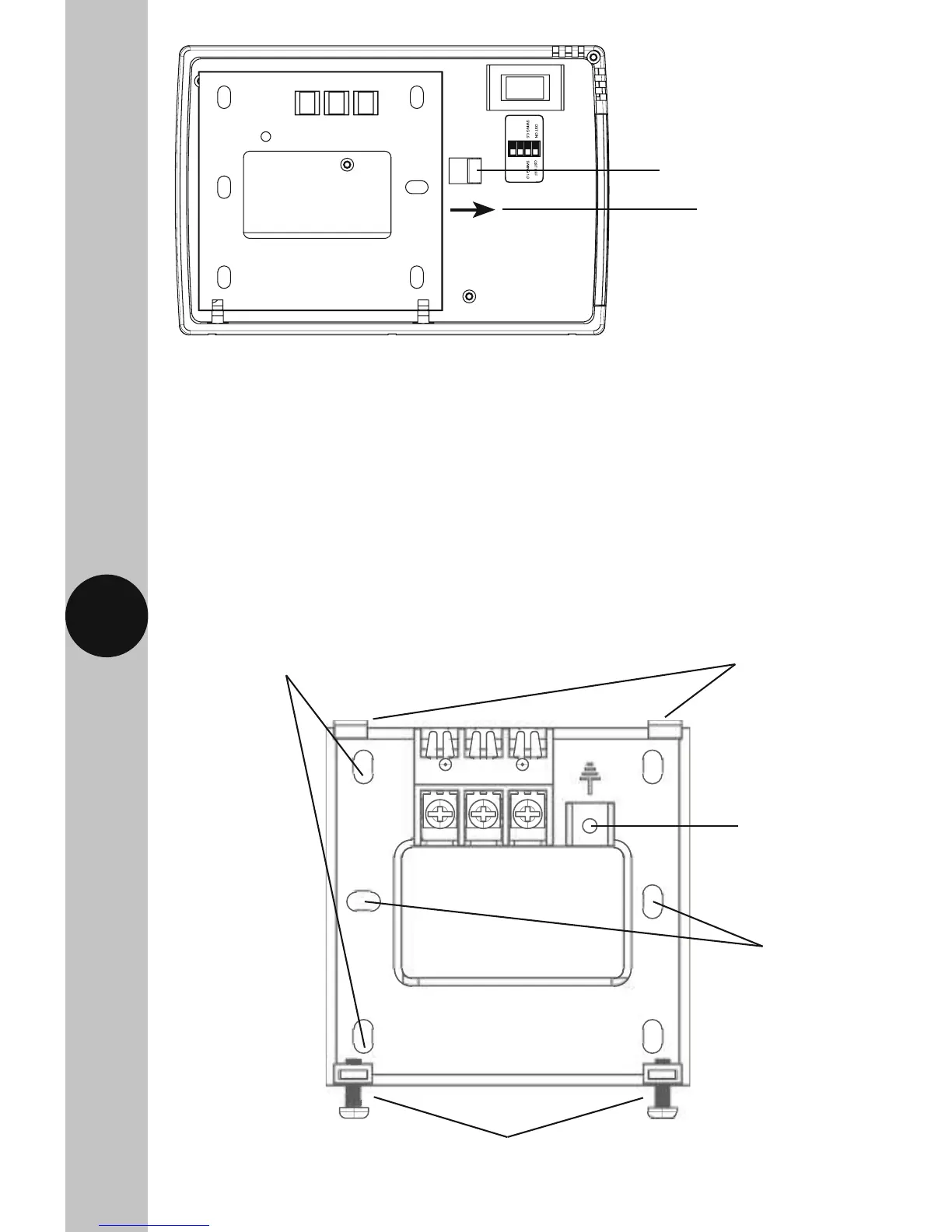

TRT035N Wall Plate
Alternate mounting holes
Wall plate retaining screws
Retaining tabs
Mounting
holes
Loop terminal
Battery compartment lug
Release the lug and
lever out the battery
compartment to the right
5.8 To reinstall the unit onto the wall plate, first ensure the wall plate
retaining screws are loosened enough to clear the TRT035N body,
then engage the top of the TRT035N onto the wall plate retaining tabs,
and push firmly downwards and then upwards. There will be some
resistance from the terminals.
5.9 Once in place, secure with the retaining screws making sure
not to over tighten.
