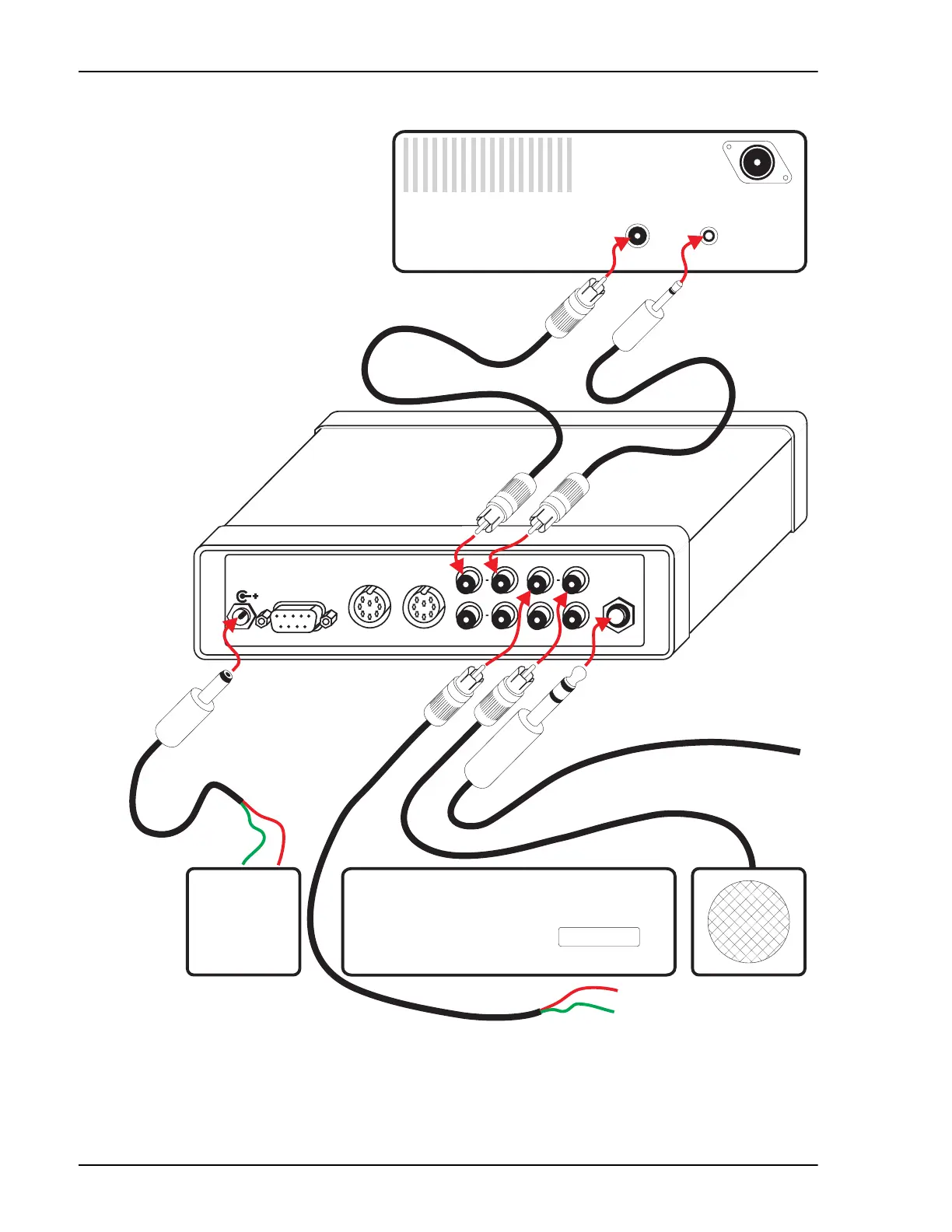

Consult the installation section of this manual for more information on ca-
bles and connections.
Power
12-16 Vdc
RS-232
Radio A
Radio B
PTT
Input
A
B
Audio
Input
Line
Ouput
Speaker
Ouput
Headphones
Timewave Technology Inc.
St. Paul, Minnesota USA.
599-010
Multimode Controller
Rx Audio Input
(PK232, KAM +, or other)
Typical
Transceiver
PTT Out
ANT
Ext Sp
See your Operator Manual
for specific information
about PTT output connections
Speaker
12-16 Vdc 1A
Power
Supply
Center Cond +12Vdc
To Stereo/Mono
Headphones
DSP-599zx
See your Operator
Manual for specific
connector information
