Timotion TA16 User Manual

User Manual-TA16
Version D January 2021
12 of 22
12

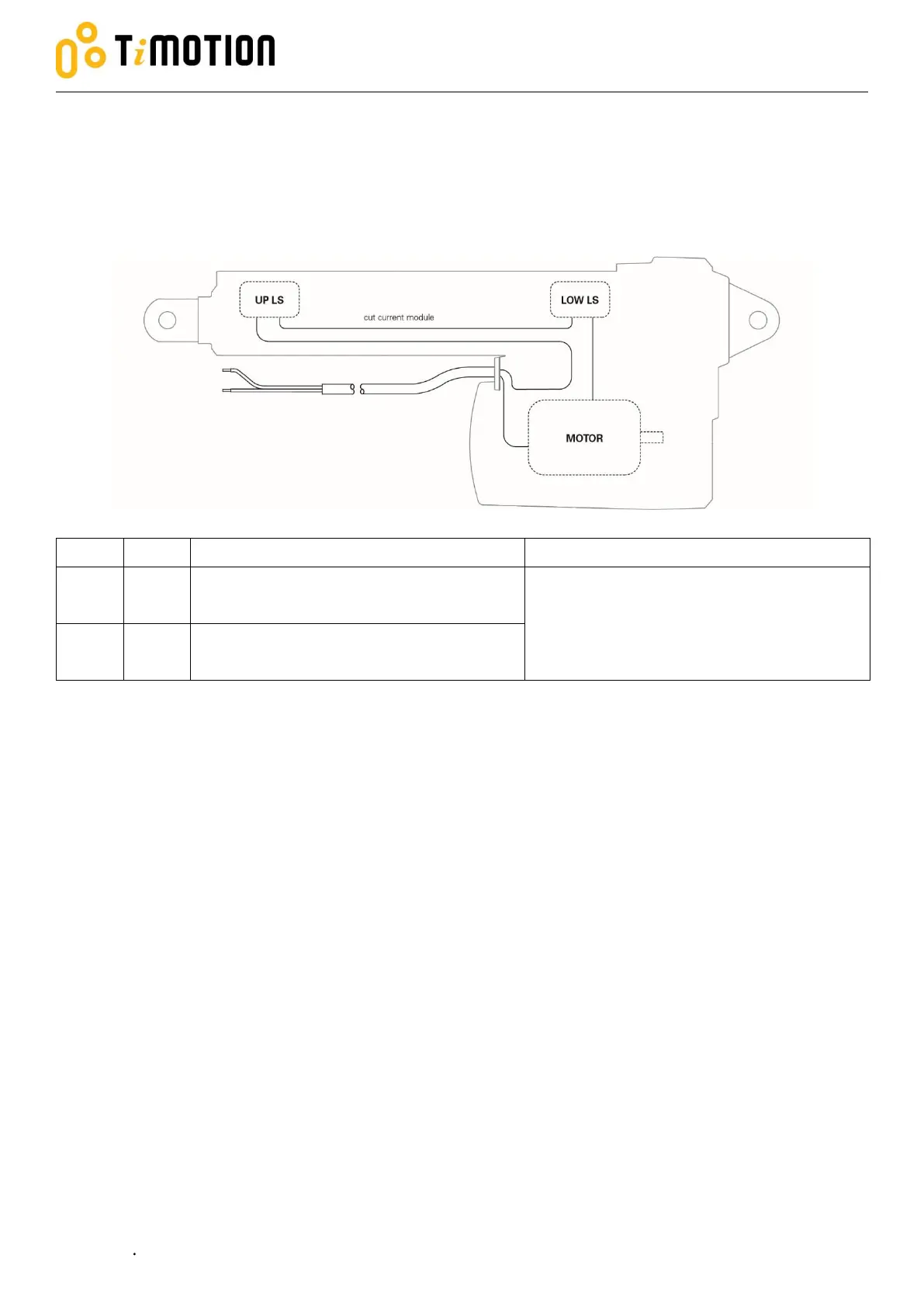

2.3.2 Two limit switches to cut the current (without signal output)
The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to
the end of each stroke and without any output signal.
Wire
AWG
Description
Spec
Green
20
Connect to Vm+ to extend the actuator.
Connect to Vm- to retract the actuator.
24V version: Input voltage 18~32 V DC.
12V version: Input voltage 9~16 V DC.
Yellow
20
Connect to Vm- to extend the actuator.
Connect to Vm+ to retract the actuator.
Yellow
Green
