2. Installation
Mechanical installation2.1
2.1.1 Mounting notice

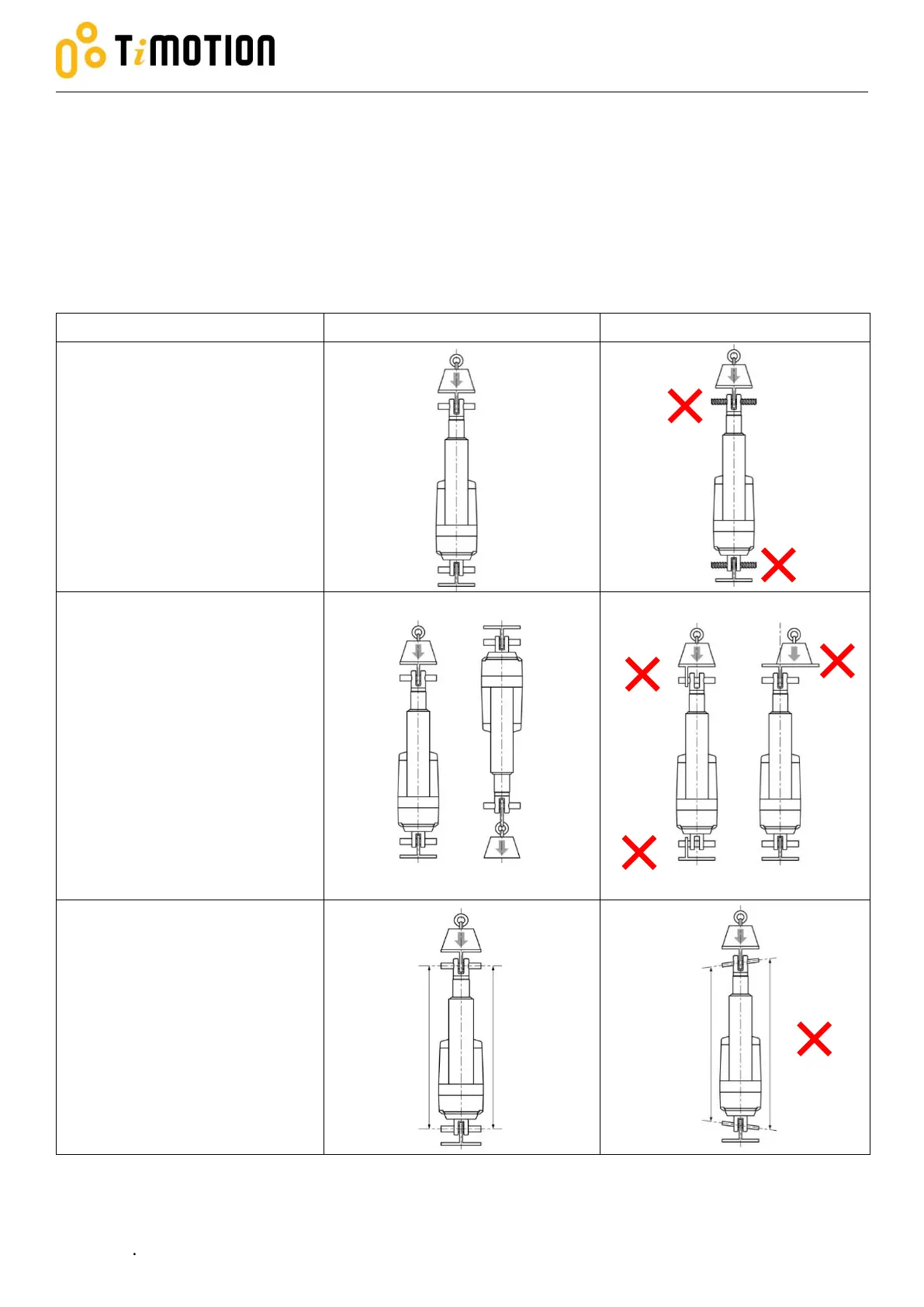

Use solid mounting pins with the proper dimension and support them at both ends.
Please mount the actuator with
the mounting pins of correct
dimension and without threaded
at both ends of the attachments.
Do not mount the actuator with
the pins in different rotated
angles, this could cause stress
on the nut during operation.
The load should act along the
stroke axis of the actuator from
the front attachment, inner tube
to the rear attachment. Off center
or side loads may cause bending
and lead to failure.
Be sure the mounting pins must
be parallel to each other. If the
pins are not parallel to each other
the actuator might be bend and
could be damaged.
