Page 14 of 28

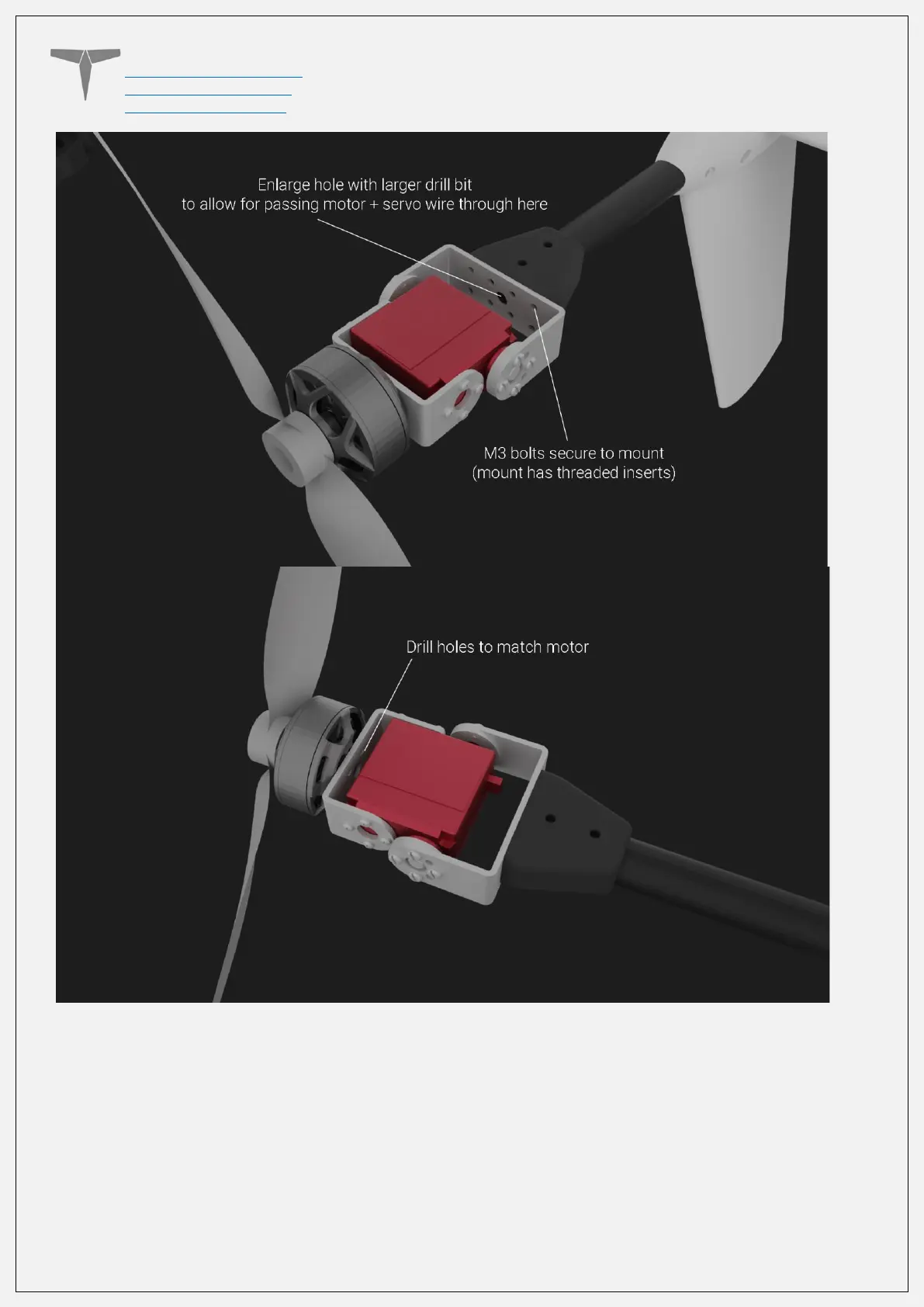

Drilling the 16mm spar for the arms:
Print the nacelle_drilling_jig.stl out of any material, and use it as a guide to drill the spars
for the arms in this orientation where the top/bottom holes face forward. This is where
the tilt servo mount will be bolted to. Print this part upright (tall) to ensure good fitment
of the spar. Push the spar into this part and drill the holes through it. An M3 bolt goes
through each hole, and a locknut goes on the other end to retain it.
