FINCH II Installation & Operation Manual
TPM 010, Rev 7.0
www.titanlogix.com Pg. 8
2.4 FINCH II Electrical Wiring Instructions

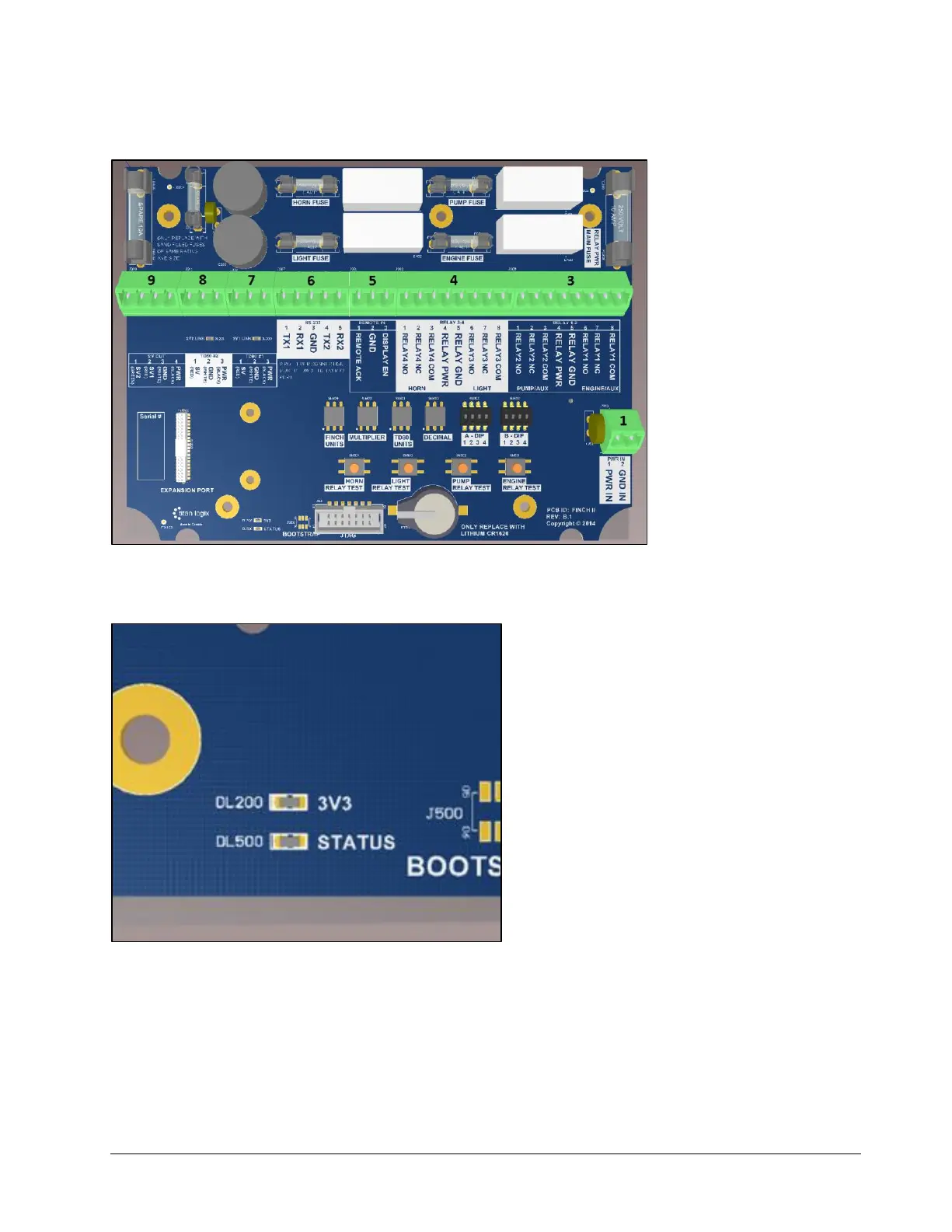

Figure 2-3B, FINCH II Terminal Board, Revision B
Figure 2-3C, FINCH II Terminal Board 3V3 LED

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Titan Logix FINCH II and is the answer not in the manual?

Titan Logix FINCH II Specifications

Power IconPower
power8-30 VDC
current consumption300mA at 12V
fuse ratings5A (HORN, LIGHT, PUMP/AUX and ENGINE/AUX), 10A (RELAY MAIN)
relay ratings3.3A Max on any individual relay, 6.6A Max across all 4 relays
Operating Environment IconOperating Environment
ambient temperature range40°C to +65°C
humidityRH 95% max
altitude2000 m
Communications IconCommunications
communicationsRS-232, TD100 SVBus
