Commissioning Units TPxxxHMB/HMBE
Controls
The fan speeds of the Titon HRV Q Plus will require adjustment to ensure the ow rates achieved provide adequate
ventilation. The Titon HRV Q Plus has 2 standard fan speed settings Continuous Speed and Boost Speed.
The Continuous Speed and Boost Speed are programmed by placing the controller into Program Mode via the Program/
Run Switch and changing the position of rotary potentiometers.
When applying power for the rst time, the unit can take up to four minutes to start operating.
Prior to the rst commission set Continuous Speed potentiometers to minimum and Boost Speed potentiometers to
maximum or reset the controller.
Control Parameters
 The Boost Speed cannot be set lower than the Continuous Speed.
 The Continuous Speed cannot be set higher than the Boost Speed.
 All switching inputs are disabled when the Program/Run Switch is in Continuous or Boost positions.
 Speed control potentiometers are disabled when the Program/Run switch is in centre Run position.
For the commissioning settings to be stored the unit needs to be powered up.
Continuous Supply & Extract Speeds:
1. Move Program/Run Switch to Continuous position.
2. Rotate supply fan Continuous Speed adjustment potentiometer to achieve required supply continuous air ow.
3. Rotate extract fan Continuous Speed adjustment potentiometer to achieve required extract continuous air ow.
4. Return Program/Run Switch to centre position to exit commissioning.
Boost Supply & Extract Speeds:
1. Move Program/ Run Switch to Boost position.
2. Rotate supply fan Boost Speed adjustment potentiometer to achieve
required supply boost air ow.
3. Rotate extract fan Boost Speed adjustment potentiometer to achieve
required extract boost air ow.
4. Return Program/Run Switch to centre position to exit commissioning.
Humidity
Timer
Program
Switch
Potentiometers
Extract Supply
Run
Continuous
Boost
Boost Overrun Timer
Humidity Sensor
Extract
Supply

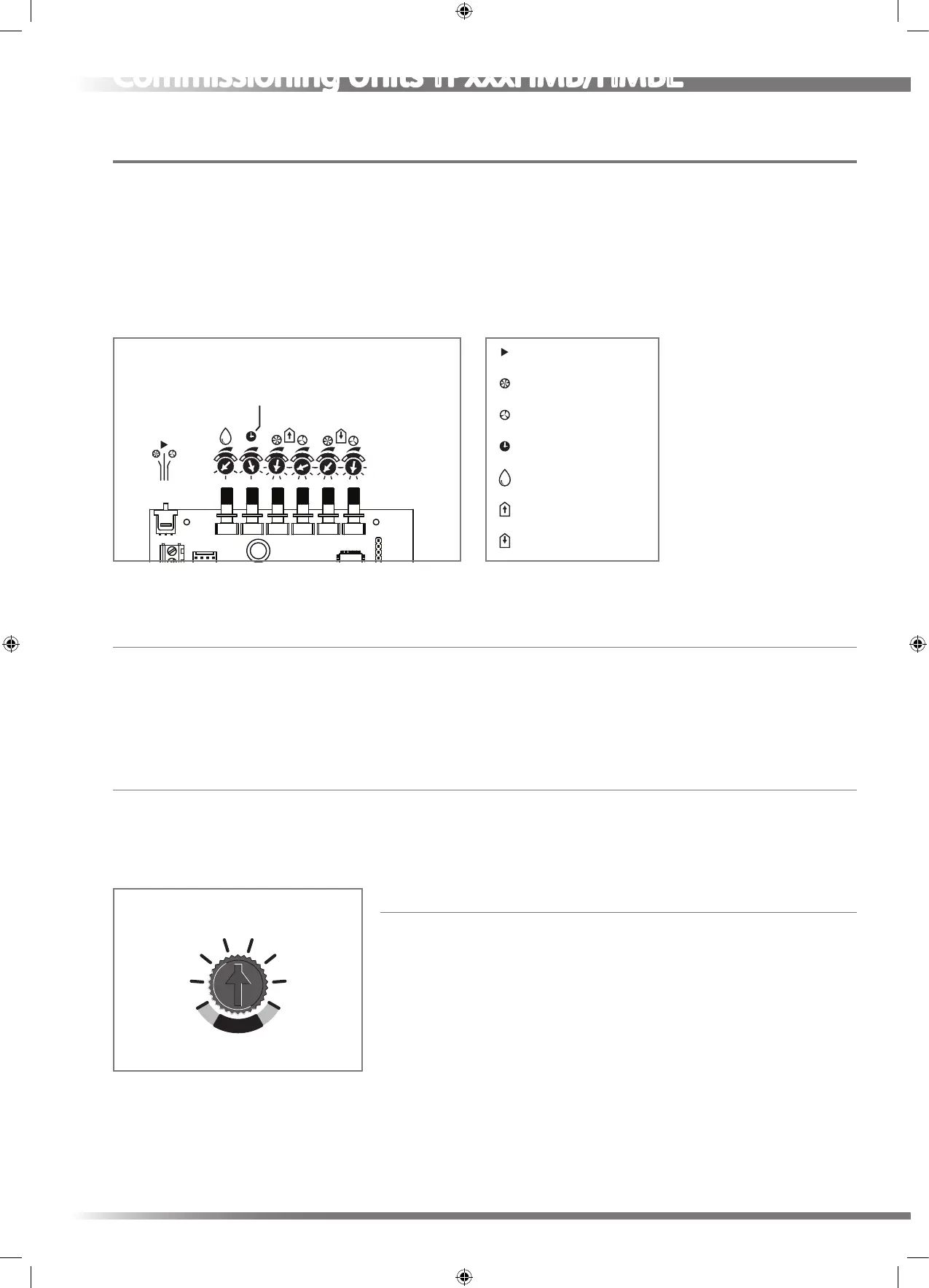

Control Identication
Humidity
Timer
Program
Switch
Potentiometers
Extract Supply
Run
Continuous
Boost
Boost Overrun Timer
Humidity Sensor
Extract
Supply
Boost
Overrun
Timer
Program
Switch
Run
Continuous
Boost
Boost Overrun Timer
Extract
Supply
Potentiometers
ExtractSupply
BP 40262/099
BoostCont
1
2
3
4
5
6
7
8
0
60
30
DO 4937 iss 01
Commissioning Pot positions
16
