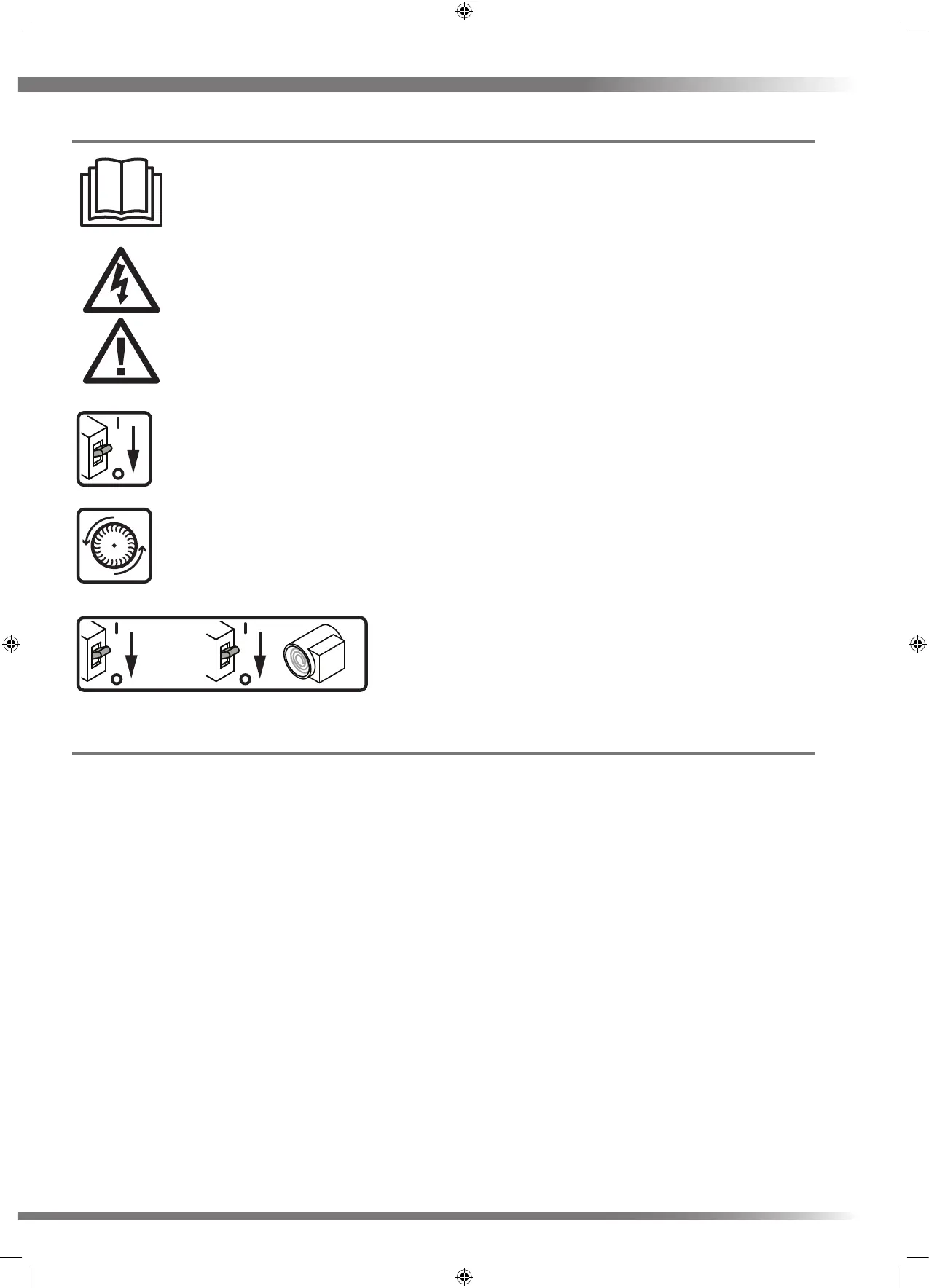

Explanation of symbols on the appliance.
Read instruction Manual.
Risk of Electric Shock.
General hazard safety alert.
Disconnect the mains supply before removing this cover.
Wait until all machine components have completely stopped before touching
them.
Disconnect the mains supply before removing this
cover.
&
Before obtaining access to terminals or removing this
cover, all supply circuits must be disconnected.
Titon Recommend:
1. A short piece of exible ducting, approximately 200mm long is used to connect the unit to the ducting system.
2. Any exible ducting used must be pulled taut.
3. A minimum distance of 200mm between the HRV unit and any sharp bends in duct work.
4. Ducting should be insulated where it passes through unheated areas and voids with the equivalent of at least 25 mm
of a material having a thermal conductivity of ≤0.04 W/(m.K) to reduce the possibility of condensation forming. Where
a duct extends externally above roof level the section above the roof should be insulated or a condensate trap should
be tted just below roof level.
5. Ducts within the building heated envelope between the external terminals and the unit’s From Atmosphere and To
Atmosphere ports should be insulated and wrapped additionally with a vapour barrier outside the insulation.
6. Where ducts pass through re barriers, they must be appropriately re stopped in accordance with the requirements
of Building Regulations.
7. A ducting condensate drain must be tted to vertical To Atmosphere duct work.
8. Ducting must be installed in such a way that resistance to airow is minimised.
9. Ducting connected to the From Atmosphere & To Atmosphere ports, must be to/from the external air outside the
building envelope.
10. Duct joints to the unit’s duct ports must be xed using a method that ensures a long term seal is achieved. If using a
short piece of exible ducting secure using a hose clamp, do not over tighten.
11. A minimum distance of 2m exists between the external supply and exhaust terminals .
+
