Titon TP408HMBE - Duct Heater; Sensor Installation

Duct Heater
If a Duct Heater is required it must be tted to the From Atmosphere ducting.

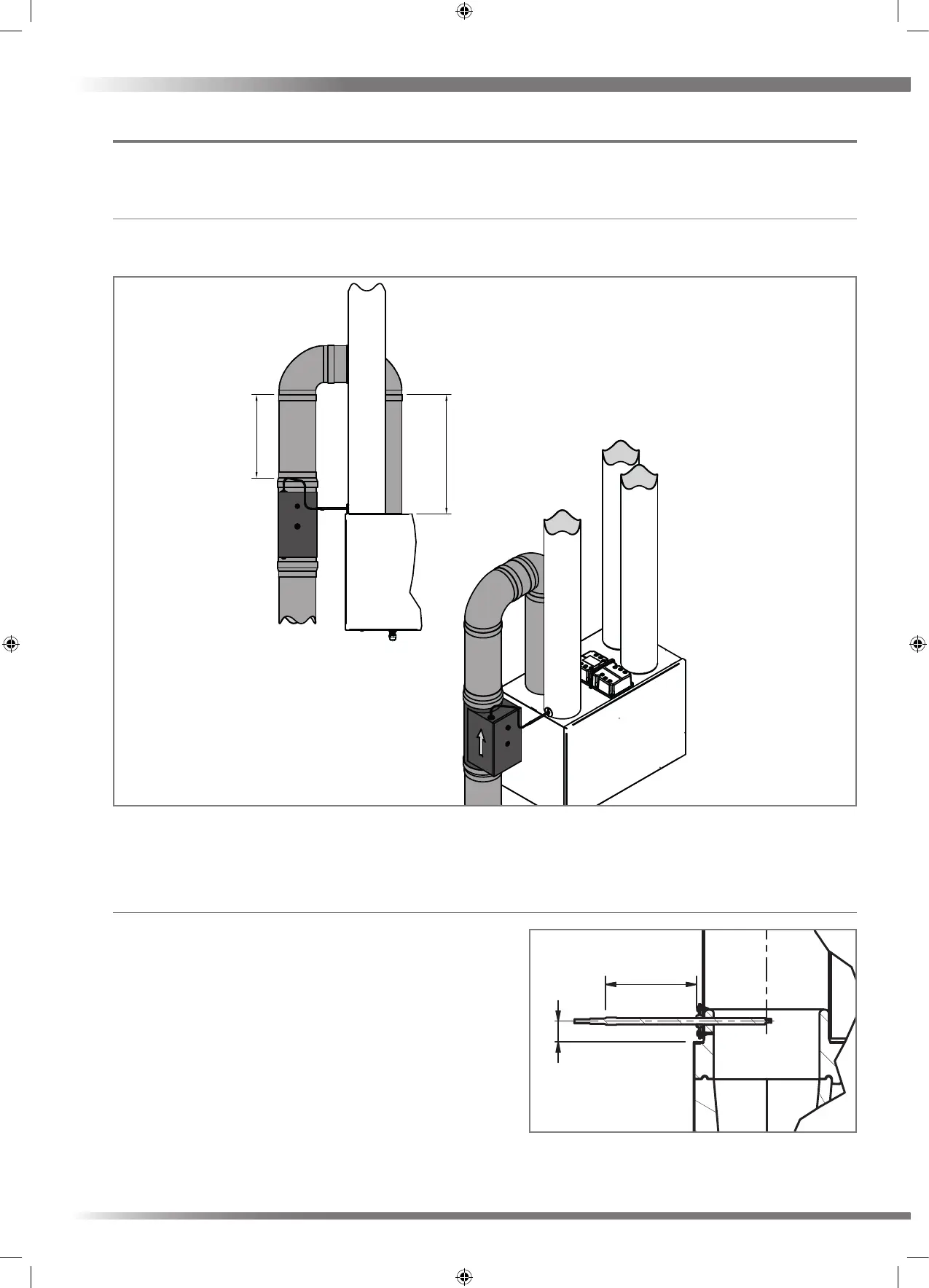

Ducting Layout
To ensure From Atmosphere air is thoroughly mixed with air heated by the duct heater; ducting must be tted using two
90° bends and the dimensions below.
Duct heater to be installed in accordance with the manufacturers instructions
Sensor Installation
The TJ-K10K sensor is positioned in the To Atmosphere (Stale air
Out) duct.
1. An Ø 8.0 mm hole is drilled through the duct and the EPP of
the HRV unit in the position shown on the diagram.
2. The sensor is secured to the ducting with two Ø3.0mm self-
tapping screws (must be suitable for the ducting material),
using the two holes in the ange on the sensor.
3. Apply a suitable sealant around the outside diameter of the
ange to seal around the duct.
4. The sensor position may need adjustment to ensure that
the temperature of the airow at the centre of the duct is
measured. See diagram for positioning dimensions.
>500mm
>350mm
B ( 1 : 5 )
25
110
Left Hand HRV shown
Location of Probe
24
