Titon TP408HMBE - Page 23

TPxxxB/BC/BE/BAR Units ONLY

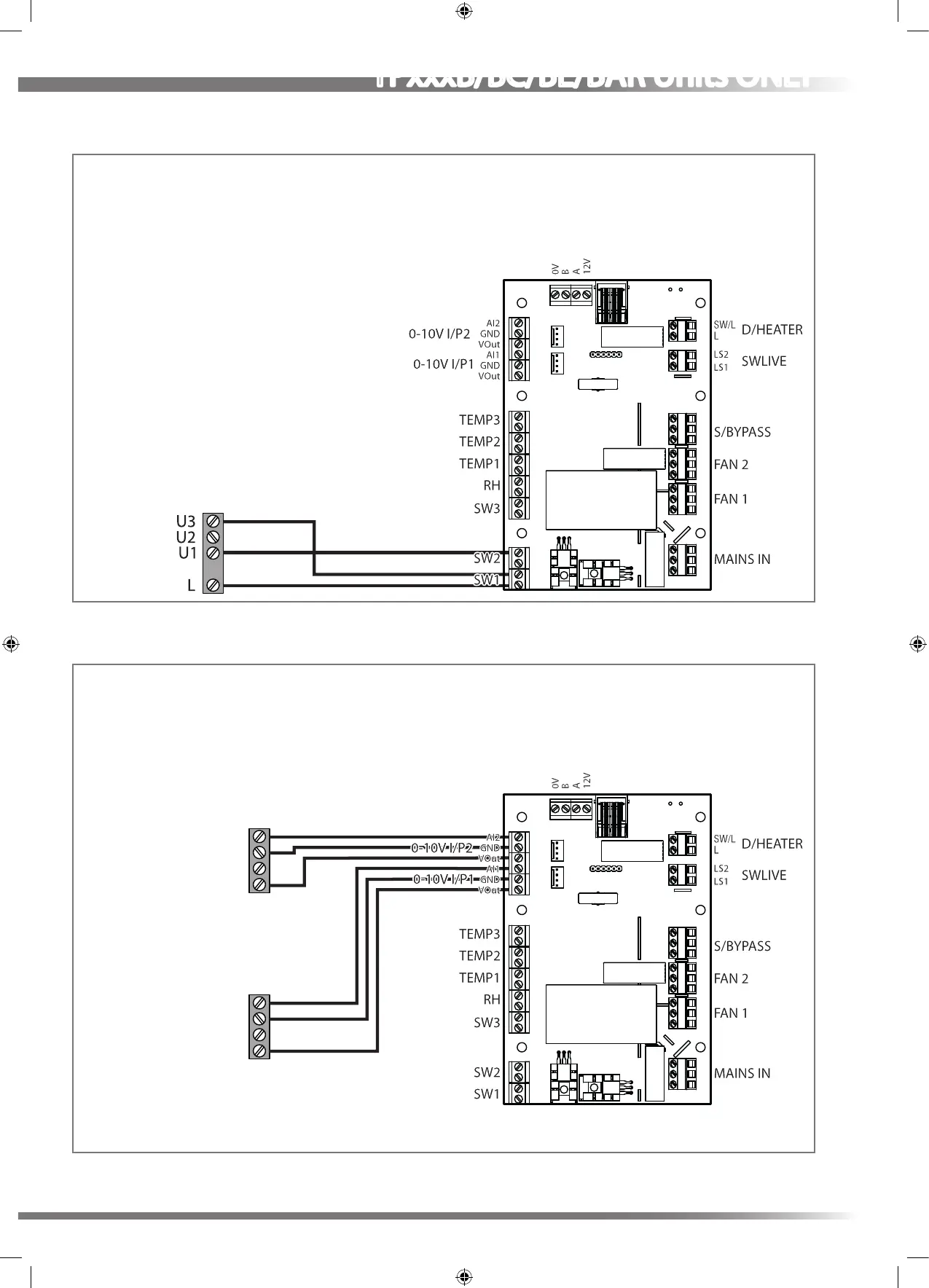

0-10V Sensor connections Ref EE161
If sensors are tted with switches ensure they are switched to VDC
Vin
GND
AO1
Vin
GND
AO1
Room Sensor 1
(default TP542 RSH
Room Humidity Sensor)
Room Sensor 2
(default TP541 RSC Room
CO Sensor)
Additional Options:
TP540 RSQ Room Air Quality Sensor
TP543 RST Room Temperature Sensor
VOut =24Vdc
Combined sensor load
must not exceed 4W
3-Way rotary switch Ref EE162
Switch Positions TP508 Three Position Rotary Switch
1 - Setback Speed
2 - Continuous Speed
3 - Boost Speed
For this conguration to function correctly;
S1-1 Needs to be set to a Kitchen or Wet Room Boost switch,
S1-2 Needs to be set to a Setback switch.
23
