Duct Heater Set Point
With the TJK10K sensor positioned as shown, the duct heater set point must be set to 6˚C using the potentiometer on the
front electrical cover of the duct heater.
Wiring
Installer to ensure correct rated Fuse is tted and used.

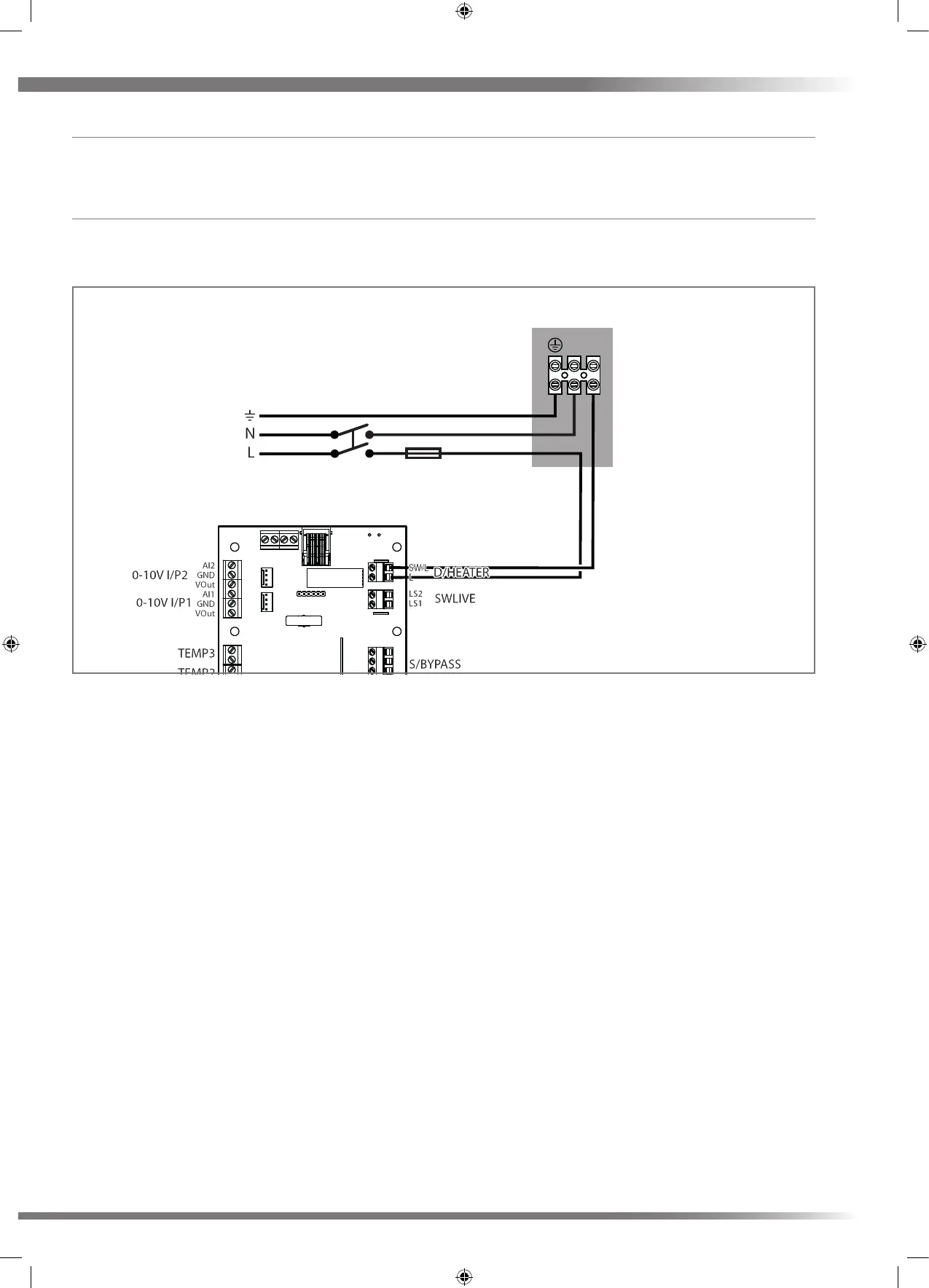

Typical Connection of Duct Heater
230V~
2 Pole
Isolator
Fuse
N L
Duct Heater
