Installation Manual-DISPLACEMENT VENTILATION DIFFUSERS
Redefine your comfort zone. ™ | www.titus-hvac.com
IOM
DVCP / DVVC / DVHC
DVBC / DVRI / DVIR

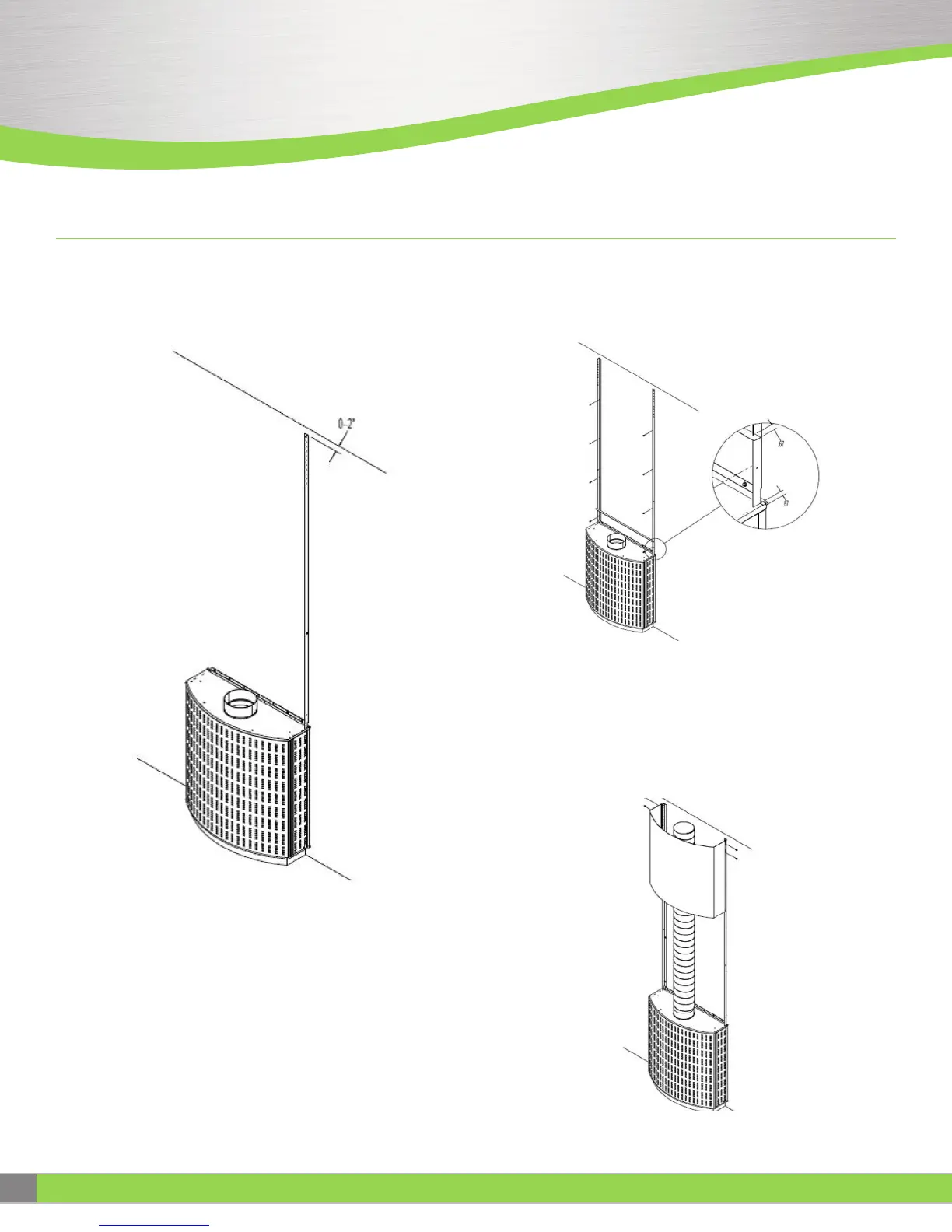

DVBC Duct Cover Installation (continued)
STEP 1
Cut the brackets according to the ceiling height keeping 0-2” distance
between the ceiling and top of the bracket.
STEP 2
Using spacers align the brackets to the end of the unit keeping 0.67”
distance from the end face of the unit. Screw the left and right brackets
to the wall.
STEP 3
Install the duct onto the unit. Align the top edge of the brackets with the
top face of the extension and install the extension assembly onto the
brackets using screws.
Figure 1
Figure 2
Figure 3
