CON4 Universal Control Card Set Up (Model ENV1028)
CON4 UNIVERSAL CONTROL CARD - PRODUCT OVERVIEW
Titus’s ENV1028 Universal Control Card provides MODBUS network and
analog control capabilities to a Titus Fan Filter Unit equipped with an
electrically commutated motor. Three different control modes provide
installation versatility by allowing the FFU to be controlled via MODBUS
RTU network, analog 0-10 VDC control signal, or by adjusting the onboard
potentiometer. The ENV1028 Universal Control Card is fully compatible
with all of Titus’s plug & play System Control Consoles using MODBUS
RTU. Additional details of the controls modes are provided on page 7.
FEATURES
• Networkable Via MODBUS RTU
• 0-10 VDC Analog Control
• Manual Control Via Onboard Potentiometer
• Simple Connections
• RJ45 For Networking Connection
• Screw Terminals For Analog Control
• Test Probe Jacks For DC mV Signal Output Of The Following:
• RPM
• Motor Control Set Point
• LED Diagnostics
• Support for external LED (10mA) remote status notification via 2
Pin MTA connector
• Onboard green LED for Board Status notification
• Onboard red LED for Network Traffic
• Powered from Network or Local Supply

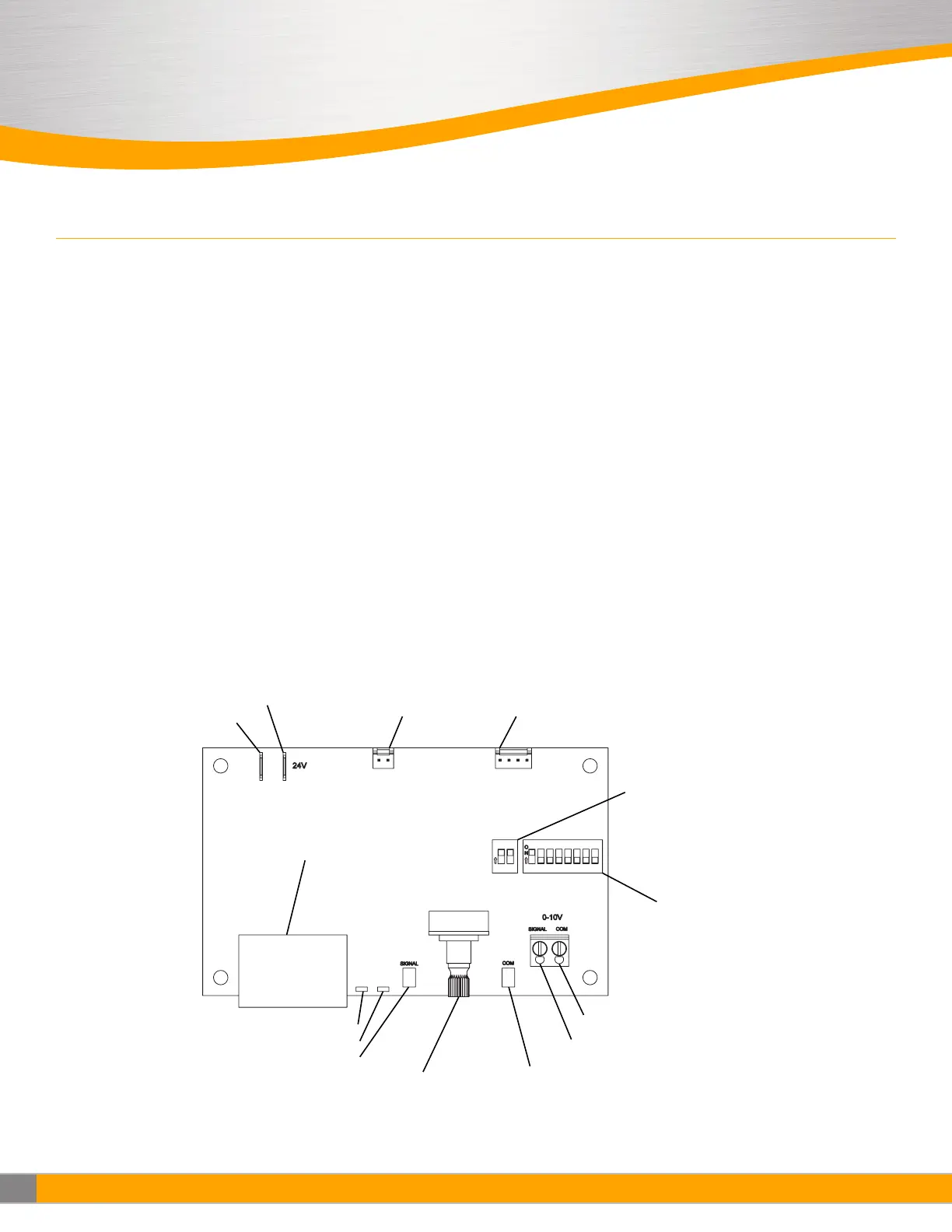

CONTROL DIP SWITCH
ADDRESSING DIP SWITCH
DUAL RJ-45 JACKS FOR CAT 5 CABLE
RED LED FOR NET ACTIVITY
GREEN LED FOR SYSTEM/RPM STATUS
RPM TEST PROBE JACK "SIGNAL"
MANUAL SPEED POT
RPM TE
S
T PR
O
BE
J
A
C
K "
CO
M"
ANALOG INPUT "SIGNAL"
ANALOG INPUT "COM"
INCOMING POWER 24VAC
COMMON
CONTROL HARNESS CONECTOR
LED CONNECTOR
