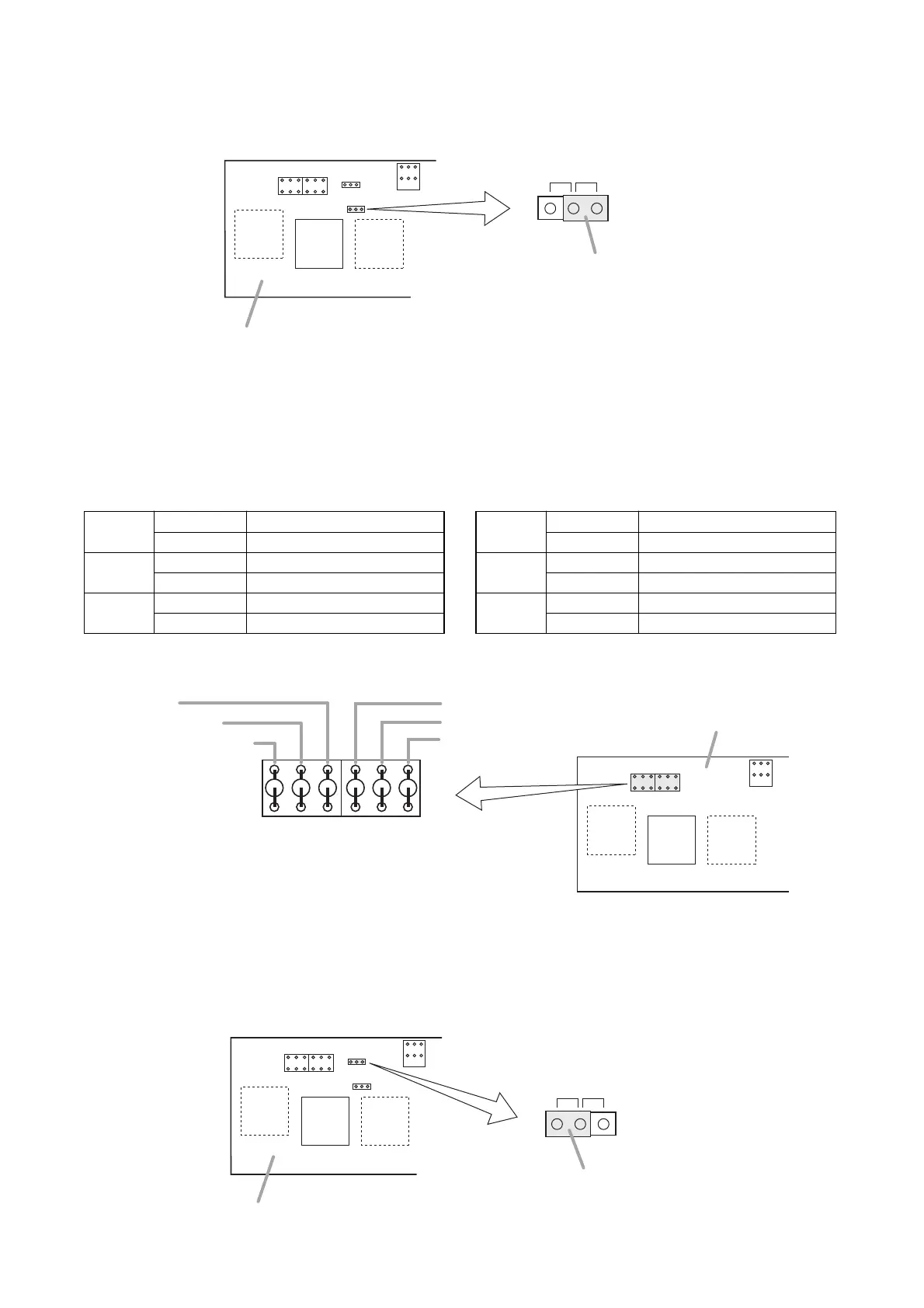

9.4. Phantom Power On/Off Setting for Microphone Input
The phantom power is set to ON or OFF with the unit's internal jumper switch JP201.
It is factory-preset to OFF.
9.3. AUX, PROGRAM, MODULE (BGM) Output Selection
Operations shown in the following tables can be enabled with the unit's internal jumper settings.
Jumpered AUX: ON
Cut AUX: OFF
Jumpered PROGRAM: ON
Cut PROGRAM: OFF
Jumpered MODULE (BGM): ON
Cut MODULE (BGM): OFF
JP210
JP211
JP212
Jumpered AUX: ON
Cut AUX: OFF
Jumpered PROGRAM: ON
Cut PROGRAM: OFF
Jumpered MODULE (BGM): ON
Cut MODULE (BGM): OFF
JP213
JP214
JP215
T203
T202 T201
JP210: AUX
JP211: PROGRAM
JP212: MODULE (BGM)
Preamplifier board
JP215: MODULE (BGM)
JP214: PROGRAM
JP213: AUX
[OUTPUT 15 W / 30 W / 60 W / 120 W] [OUTPUT 1 W, MOH]
T203
T202 T201
Jumper switch JP201
ONOFF
Preamplifier board
9.2. TEL Input Impedance Selection
The impedance is factory-preset to 10 kΩ. To switch to 600 Ω, change the position of the unit's internal jumper
switch JP204.
T203
T202 T201
Jumper switch JP204
10 kΩ600 Ω
Preamplifier board
[OUTPUT 15 W / 30 W / 60 W / 120 W] [OUTPUT 1 W, MOH]
