Toa BG-1015 - Changing MIC and PROGRAM Input Types; MIC Input; Program Input; 10 Installation

13

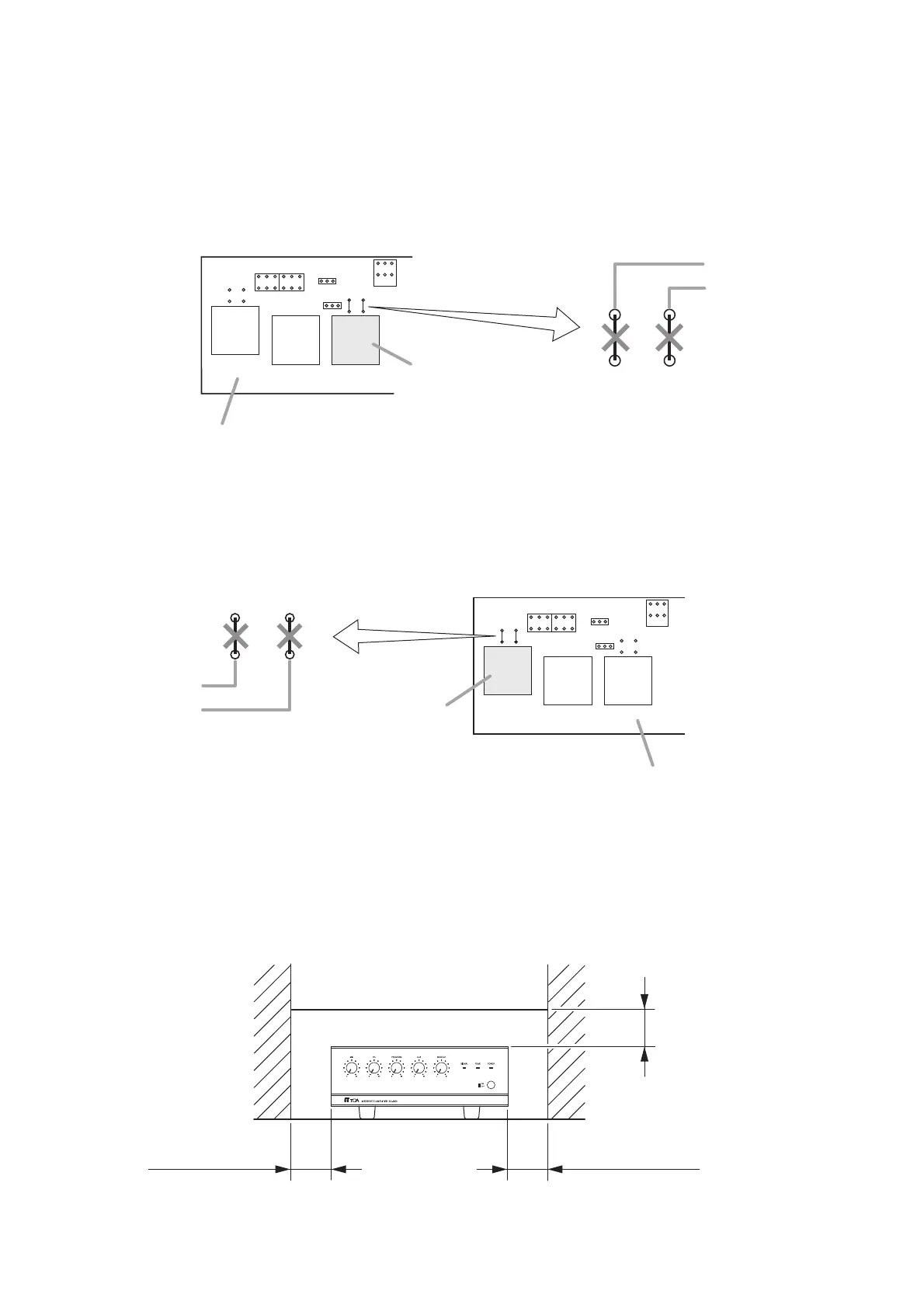

9.5.2. Program input
• Install an optional IT-453A Line Transformer on the preamplifier board as shown below.
• Cut off both JP205 and JP206 jumper wires.
JP205
JP206
T202 T201
Line Transformer
IT-453A
Preamplifier board
10. INSTALLATION
Keep the amplifier over 10 cm (3.94") away from objects that may obstruct air flow to prevent the unit's
internal temperature rise.
Over 10 cm (3.94”)
Over 10 cm (3.94”)
Over 10 cm (3.94”)
9.5. Changing MIC and PROGRAM Input Types
Both MIC and PROGRAM inputs can be changed from electronically balanced to transformer balanced types
with the following procedures.
9.5.1. MIC input
• Install an optional IT-450 Line Transformer on the preamplifier board as shown below.
• Cut off both JP202 and JP203 jumper wires.
JP202
JP203
T203
T202
Preamplifier board
Line Transformer
IT-450
