Toa P-75D User Manual

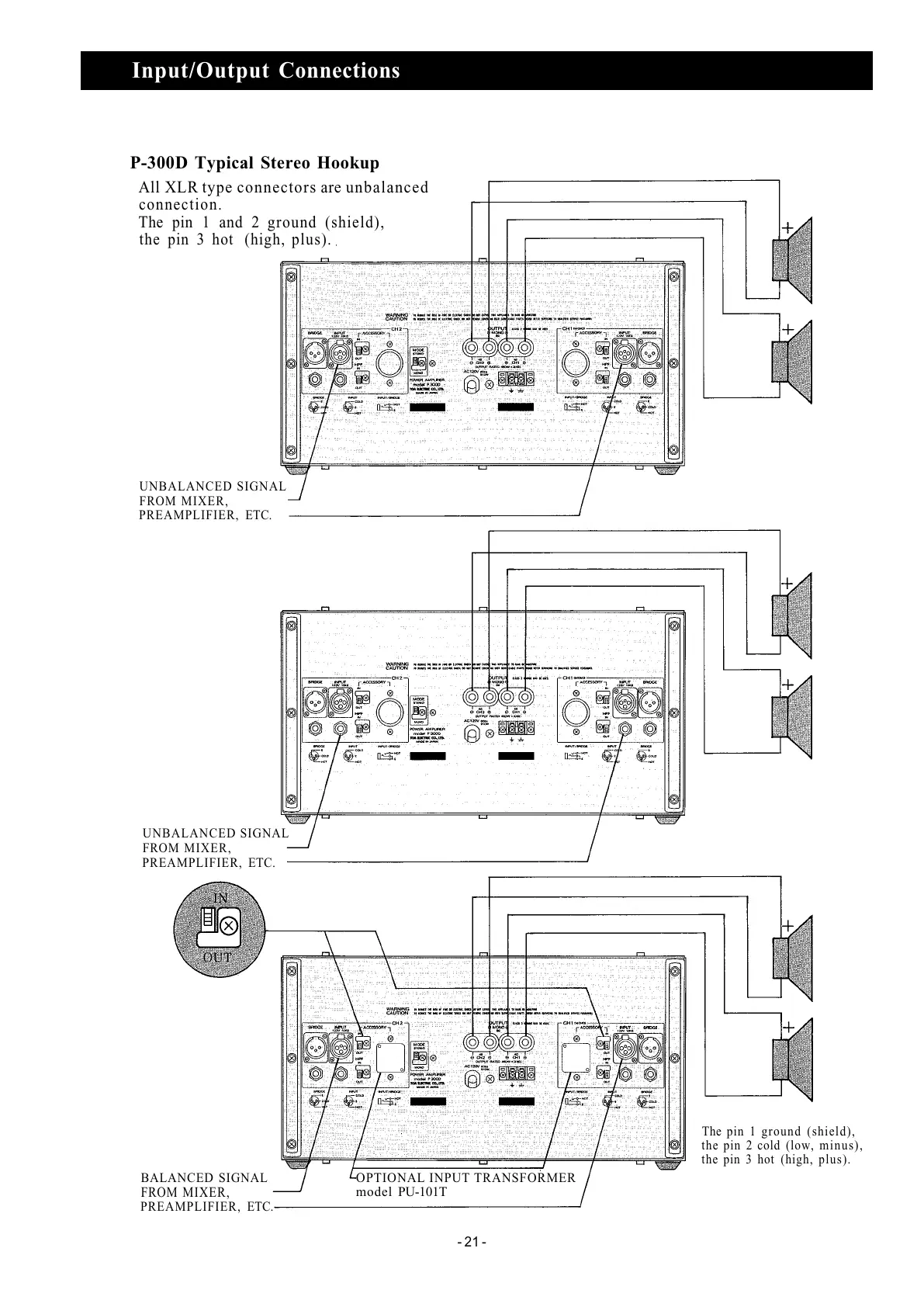

Input/Output Connections
P-300D Typical Stereo Hookup
All XLR type connectors are unbalanced
connection.
The pin 1 and 2 ground (shield),
the pin 3 hot (high, plus).
UNBALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
UNBALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
BALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
OPTIONAL INPUT TRANSFORMER
model PU-101T
The pin 1 ground (shield),
the pin 2 cold (low, minus),
the pin 3 hot (high, plus).
- 21 -
