Toa P-75D User Manual

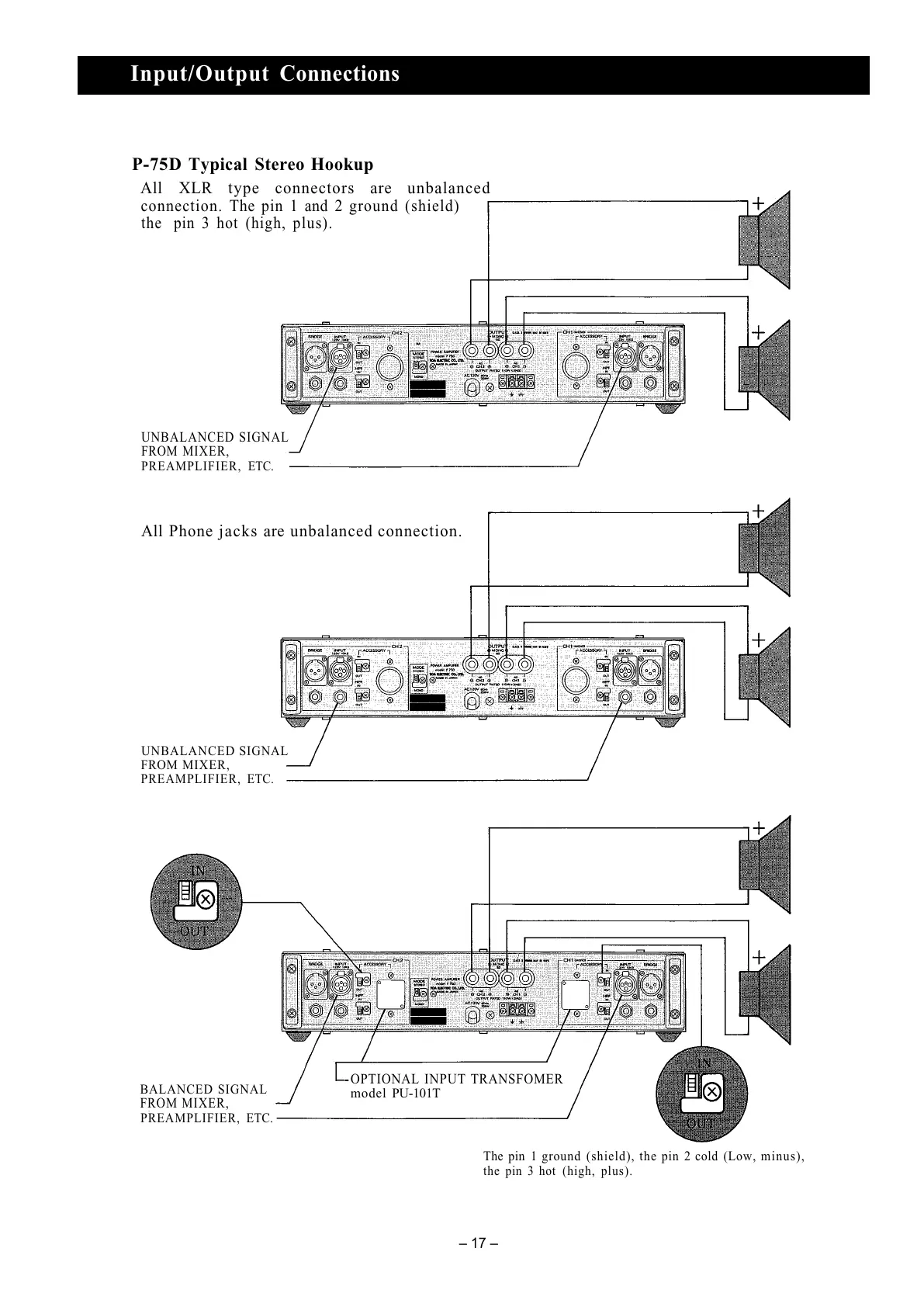

P-75D Typical Stereo Hookup
All XLR type connectors are unbalanced
connection. The pin 1 and 2 ground (shield)
the pin 3 hot (high, plus).
UNBALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
All Phone jacks are unbalanced connection.
UNBALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
BALANCED SIGNAL
FROM MIXER,
PREAMPLIFIER, ETC.
OPTIONAL INPUT TRANSFOMER
model PU-101T
The pin 1 ground (shield), the pin 2 cold (Low, minus),
the pin 3 hot (high, plus).
– 17 –
Input/Output Connections
