Toa RM-300MF - Sw Pcb; Emg Sw Pcb; Connector Pcb; Handmic Pcb

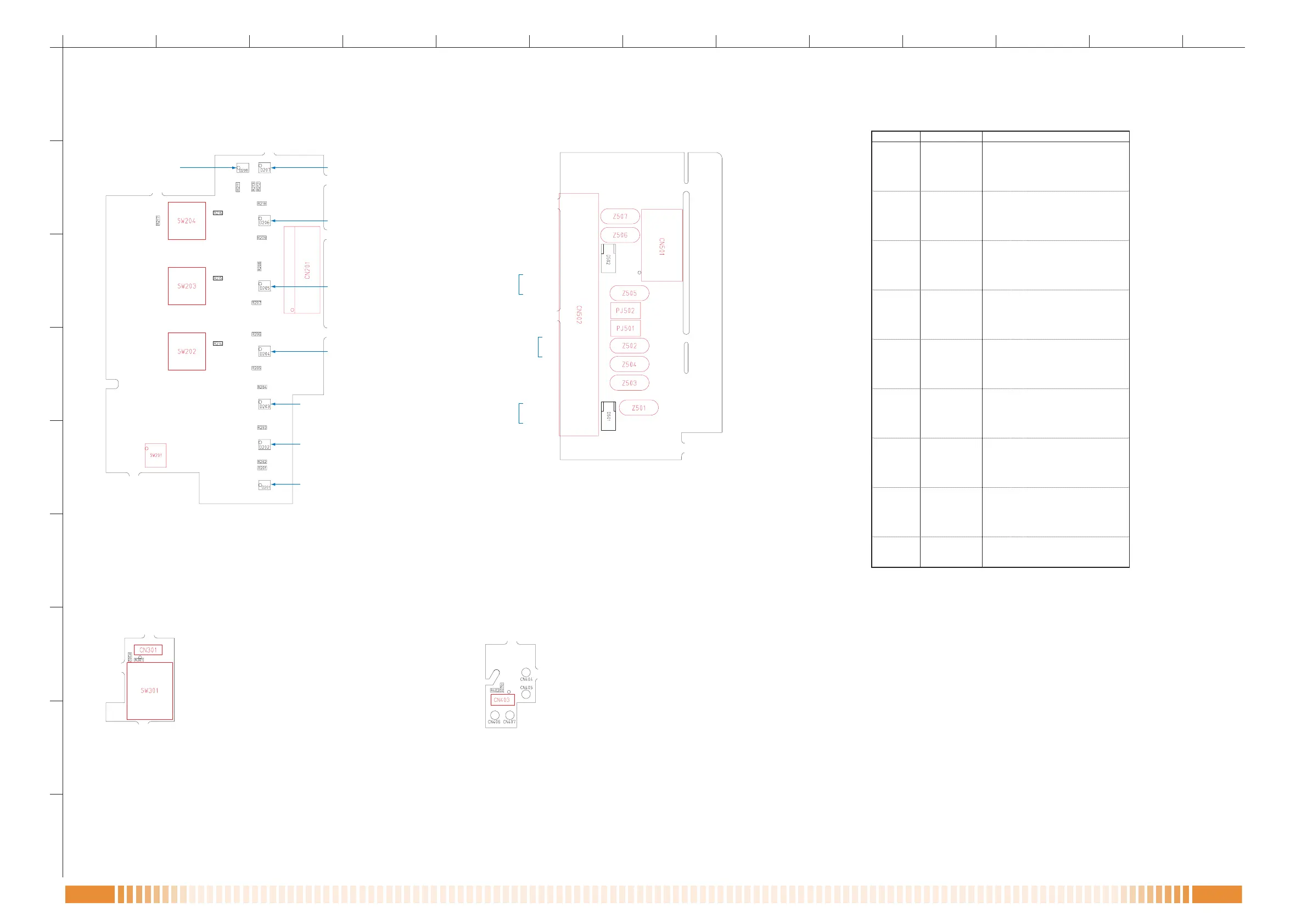

MOUNTING DIAGRAMS AND PARTS LIST
1
A
B
C
D
E
F
G
H
23 654 789 11121310
I
11 11
RM-300MF
• EMG SW PCB (Part Code : 700-04-442-70)
Emergency
Activation Switch
• SW PCB (Part Code : 700-04-439-50)
Evacuation Announcement
Start Key
Alert Announcement
Start Key / Lamp Test Key
Emergency Reset Key
RM Reset Key
Power Indicator
Communication
Failure Indicator
CPU OFF Indicator
Evacuation
Announcement Indicator
Alert Announcement
Indicator
Emergency Reset
In-Progress Indicator
External Emergency
Equipment In-Use Indicator
Emergency Microphone
In-Use Indicator
• CONNECTOR PCB (Part Code : 700-04-440-30)
SHIELD
SHIELD
DATA(–)
DATA(+)
AUDIO OUT
DC IN
24V
+
–
DC IN
24V
+
–
H
C
• HANDMIC PCB (Part Code : 700-04-441-40)
Designator Part Code Description
BZ101 110-06-020-40 SOUNDER, PKM13EPY-4000
BZ102 110-06-020-40 SOUNDER, PKM13EPY-4000
BZ103 110-06-020-40 SOUNDER, PKM13EPY-4000
C40 113-42-094-60 CAPACITOR, LXZ 6.3VB 3300M
C44 113-42-094-60 CAPACITOR, LXZ 6.3VB 3300M
C59 113-42-093-90 CAPACITOR, 50VB 220M J20
C60 113-42-093-90 CAPACITOR, 50VB 220M J20
C61 113-42-093-90 CAPACITOR, 50VB 220M J20
CN1 123-36-207-60 CONNECTOR S08B-XASK-1
CN2 123-26-276-90 CONNECTOR, B3B-EH-A
CN3 123-36-204-30 CONNECTOR 19FE-BT-VK-N
CN5 123-36-207-60 CONNECTOR S08B-XASK-1
CN6 124-04-318-70 TERMINAL, P-820
CN101 123-26-277-20 CONNECTOR, B4B-EH-A
CN201 123-36-205-20 CONNECTOR, 19FE-ST-VK-N
CN301 123-39-730-20 CONNECTION CABLE W/PLUG 3P
CN403 123-39-377-70 CONNECTION CABLE, W/PLUG 3P
CN501 123-36-207-60 CONNECTOR S08B-XASK-1
CN502 124-02-785-50 TERMINAL, DT-25-A01W-10
D22 111-04-161-30 POLYSWITCH, RXE185
M4 111-06-783-90 IC, AQV210E
M6 101-08-464-40 HEATSINK, DC/DC-IC VX2000
M105 111-06-851-90 IC, NJM2073D
PJ501 111-04-118-1R PTH8L07BD100N2B510
PJ502 111-04-118-1R PTH8L07BD100N2B510
SW1 115-51-138-90 SWITCH, DIP, EAM108L (E)
SW2 115-12-242-00 SWITCH, SLIDE SSSF012SA3-NT
SW201 115-14-476-1X SWITCH, TACT SFKHML2420-NT
SW202 115-14-486-80 SWITCH, B3F-5001
SW203 115-14-486-80 SWITCH, B3F-5001
SW204 115-14-486-80 SWITCH, B3F-5001
SW301 123-05-319-80 SOCKET, SW 50-015-01
T1 114-03-080-70 INPUT TRANS,IT-423
VR101 112-06-934-00 POT.,6G-6-401KW 10KOHM(B) ADJ
VR102 112-06-934-00 POT.,6G-6-401KW 10KOHM(B) ADJ
X1 115-46-082-90 X-TAL, AT-49 9.8304MHZ
Z501 111-04-115-20 ABSORBER,ERZ-V10D820
Z502 111-04-115-20 ABSORBER,ERZ-V10D820
Z503 111-04-115-20 ABSORBER,ERZ-V10D820
Z504 111-04-115-20 ABSORBER,ERZ-V10D820
Z505 111-04-115-20 ABSORBER,ERZ-V10D820
Z506 111-04-115-20 ABSORBER,ERZ-V10D820
Z507 111-04-115-20 ABSORBER,ERZ-V10D820
• PARTS LIST
*
The parts not listed are not supplied.
