Toa RM-300MF - Wiring Diagram

1
2
3
4
CPU PCB
HANDMIC
PCB
CONNECTOR PCB
EMG SW PCB
SW PCB

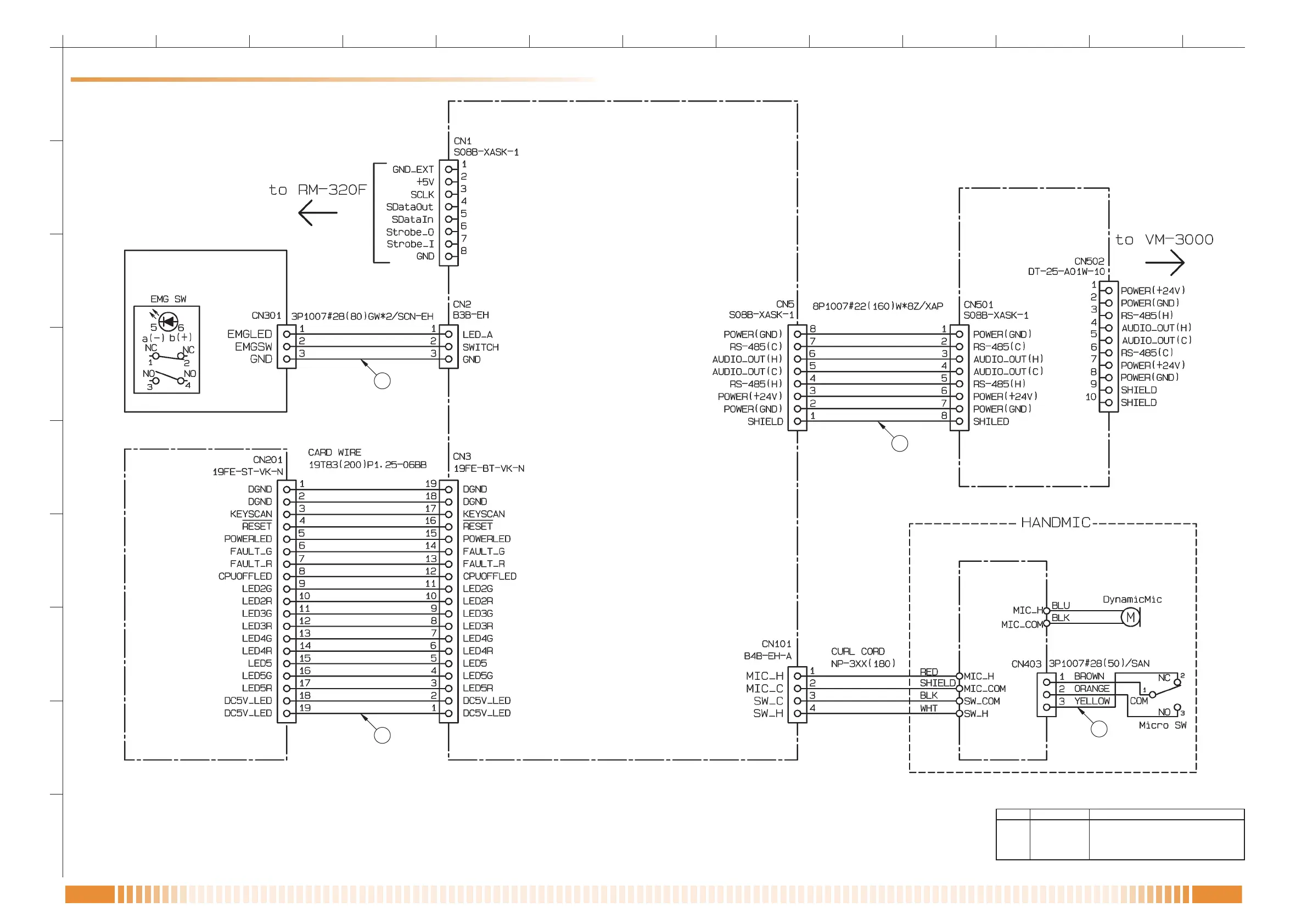

WIRING DIAGRAM
1
A
B
C
D
E
F
G
H
23 654 789 11121310
I
5 5
RM-300MF
WIRING DIAGRAM
Ref.No. Part Code Description
1 123-39-730-20 CONNECTION CABLE W/PLUG 3P
2 124-04-316-90 FLAT CABLE, 19T83(200)P1.25
3 123-49-486-50 CONNECTION CABLE W/PLUG 8P
4 123-39-377-70 CONNECTION CABLE, W/PLUG 3P
· HARNESS LIST
*
The parts not listed are not supplied.
Please refer to page 9
Please refer to page 8
Please refer to page 6-7
Please refer to page 8
Please refer to page 9
