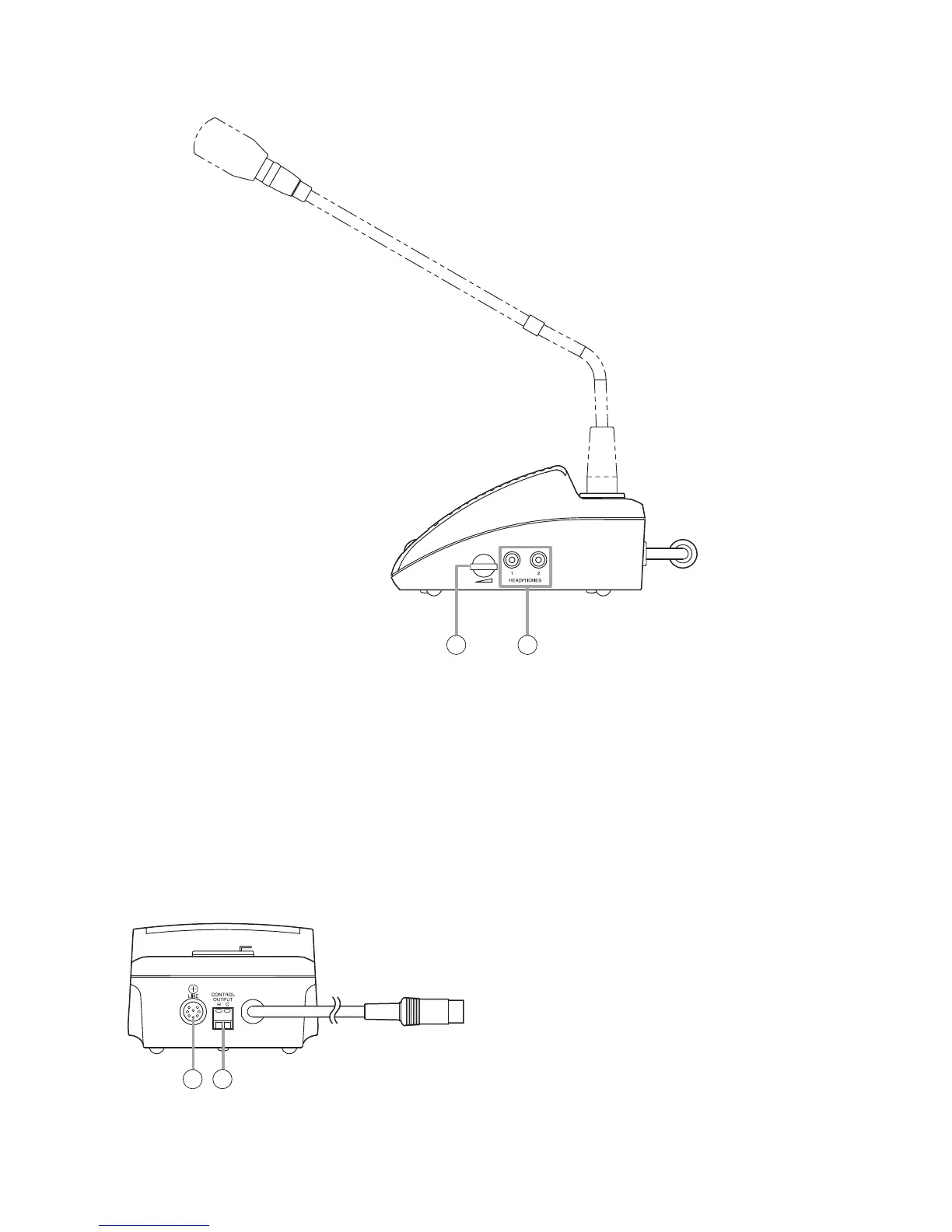

[TS-771/TS-772 Side]
7 8
7. Volume control
Adjusts the sound volume from the
Recording/Headphone Output Terminal.
Note
Use the volume control of the TS-770 Central unit
to adjust the sound output volume from the
internal speaker (3).
8. Recording/Headphone output terminals
[HEADPHONES]
Connect recording equipment or headphones to
these terminals. No sound is output from the
internal speaker (3) while this terminal is in use.
[TS-771/TS-772 Rear]
9 10
9. Line connection terminal [LINE]
Connect the following linked conference unit's
line connection cord to this terminal.
10. Control output terminal
[CONTROL OUTPUT]
This terminal is an open collector output
interlocked with the Microphone in-use indicator,
and is enabled when in speech mode.
(24 V DC, Max. 50 mA)
