GENERAL PURPOSE BROADCAST REMOTE MICROPHONE
VM Amplifier Connection to
the Remote Microphone
4-2-3
RM-200M
AC Adapter
RM-200M
AC Adapter
Pattern 2Pattern 1

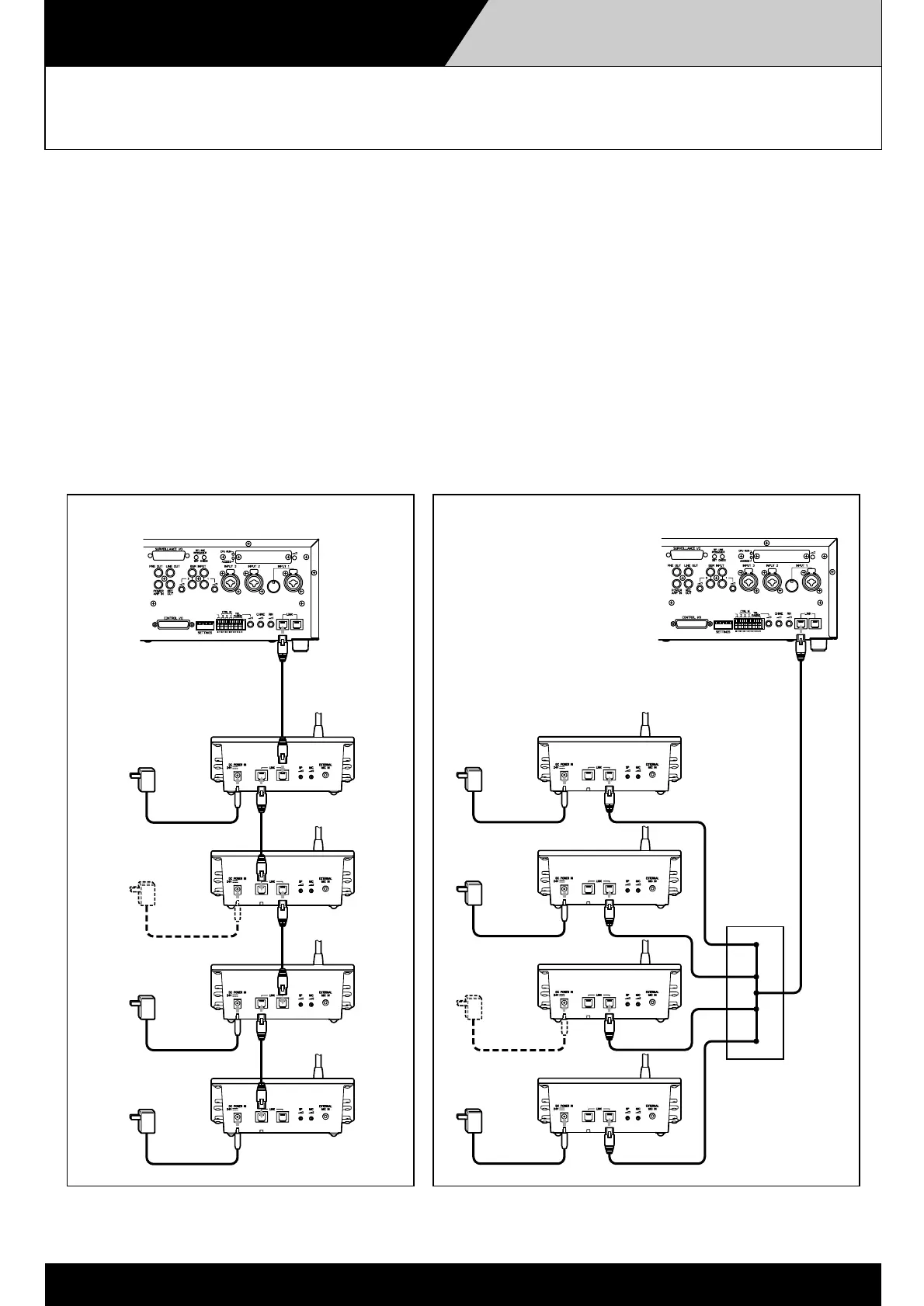

VM amplifier Connection to the Remote Microphone (Pattern 1)
[Operation]
All 4 Remote Microphones connected to the VM amplifier can enable the same operation. Two different
priority levels can also be assigned to the connected Remote Microphones, depending on application.
[Connection]
Connect each Remote Microphone in series using the Category 5 STP cable and RJ-45 connectors.
VM-2000 Connection to the Remote Microphone (Pattern 2)
Install a terminal panel between the VM amplifier and the Remote Microphone to sort wiring from each
remote control unit. The terminal panel also contributes to more adequate and economical cable routing,
depending on construction conditions.
Unit No. 1
Unit No. 2
Unit No. 3
Unit No. 4
Unit No. 1
Unit No. 2
Unit No. 3
Unit No. 4
To Next Page
