6.3.InstallingModules(VX-200SZ-2,VX-200SP-2)intheVX-2000SFFrame
Notes
• The slot number and module type to be installed must be identical to those designated by the PC software.
• Equate the VX-2000SZ-2 as VX-200SZ, and the VX-200SP-2 as VX-200SP when setting them on the PC
software.
• Cover idle slots with the supplied blank panels to prevent dust from getting into the equipment.

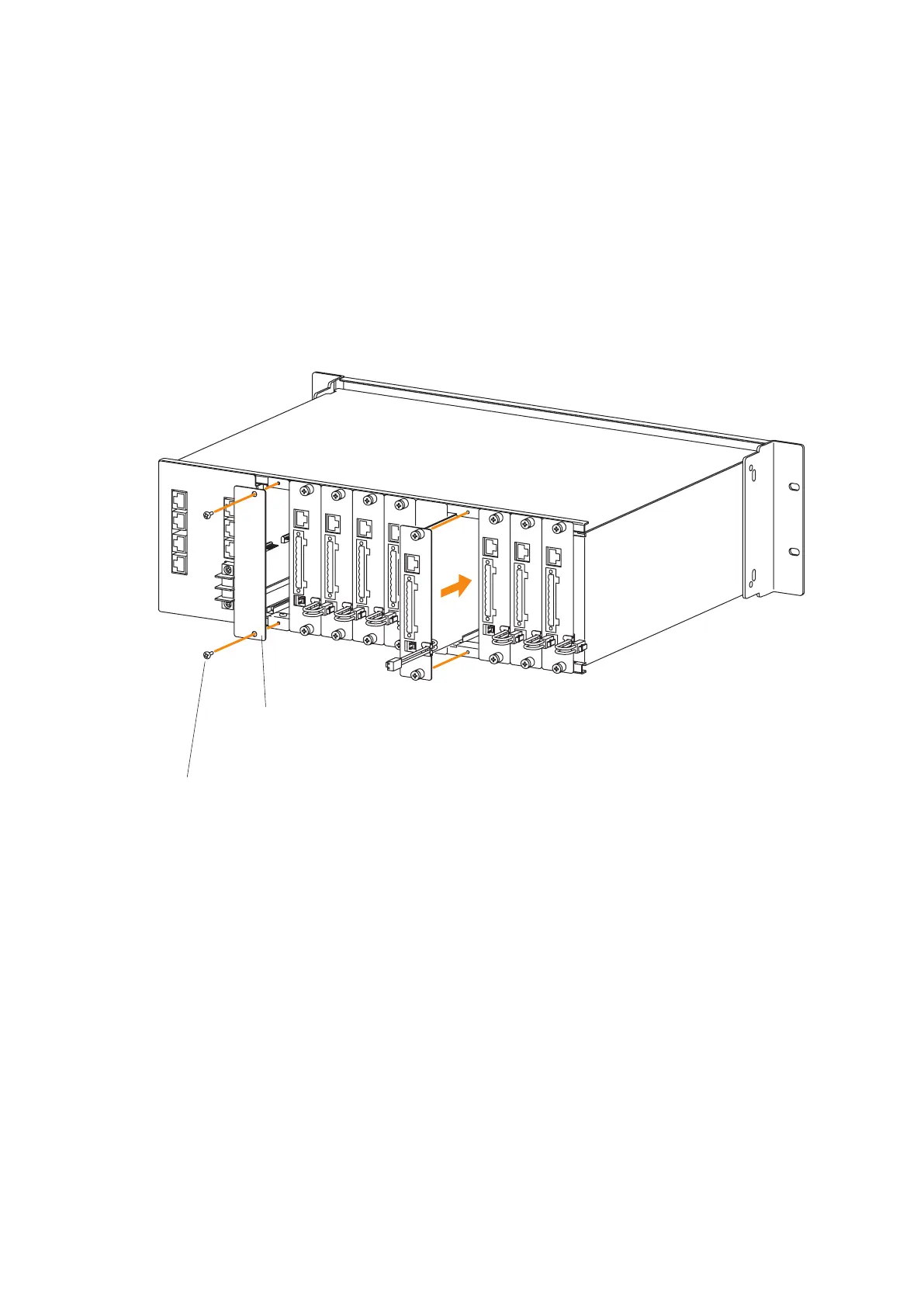

Step 1. Align the module with the rails inside the VX-2000SF Frame, then push the module in to plug its
connector strip securely into the VX-2000SF's internal connector.
Step 2. Tighten both the top and bottom screws.
Blank panel
(supplied with the VX-2000SF)
Machine screw M3 x 6
(supplied with the VX-2000SF)
