Chapter 2 INDICATOR STATUS OF REMOTE MICROPHONES
2.8. Indicator State at the Time of Failure Output Receipt
When the VX-3000 system is set to enable "Surveillance function," the failure output receipt function can be
assigned to a function key.
When the failure output receipt function has been assigned to the Function key, the 2 indicators to the left of
the key indicate the occurrence and failure output receipt status of the failure output pattern.
Notes
• Forinstructionsonsettingthesurveillancefunction,seetheseparateSettingSoftwareInstructions,"BASIC
SETTINGS."
• For instructions on assigning functions to function keys, see the separate Setting Software Instructions,
"EVENT SETTINGS."

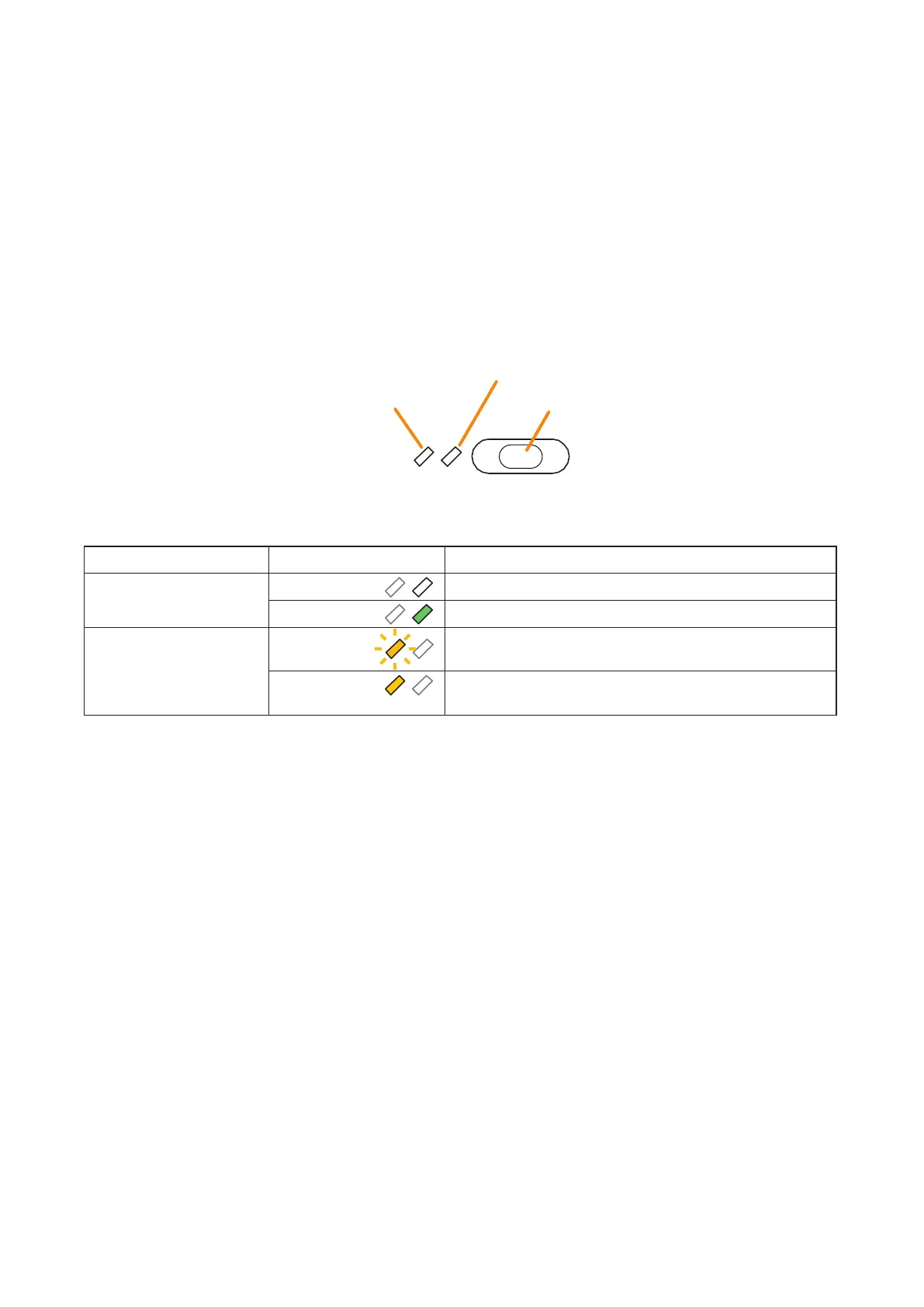

Failure Output Receipt State Indicator
Key ON/OFF Indicator
Function key (Failure output receipt key)
The meanings of the 2 indicators next to the Function key are as follows:
Indicator Status Meaning
Key ON/OFF Indicator Unlit
When the function key is not pressed
Lights green
When the function key is pressed (as long as it is pressed)
Failure Output Receipt
State Indicator
Flashes yellow
When the failure output pattern assigned to the function key
has occurred
Lights yellow
Failure output pattern has been acknowledged after pressing
the function key.
