3-19
Chapter 3 OPERATION

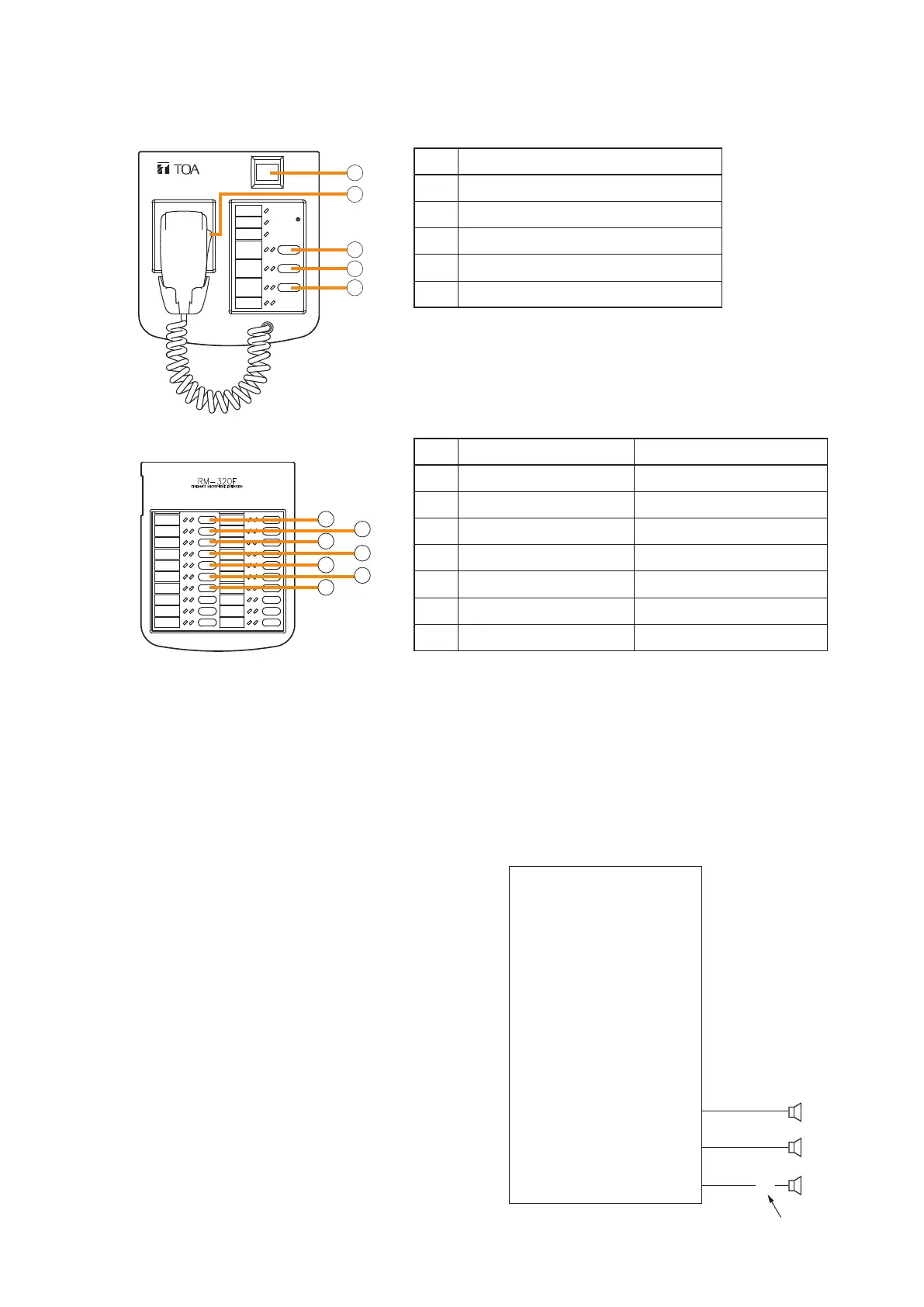

[RemoteMicrophone'sFunctionkeysetting]
FIREMAN'S MICROPHONE
RM-200SF
RM-200SF
RM-320F
1
2
3
4
5
6
7
8
9
10
11
12
Notes
• For instructions on assigning functions to function keys, see the separate Setting Software Instructions,
"EVENT SETTINGS."
• For instructions on setting failure pattern, see the separate Setting Software Instructions, "PATTERN
SETTINGS."
5.2.CaseExampleofMalfunction
The example here assumes that the speaker terminal for
the Zone 2F is disconnected.
VX-3004F
1F
2F
GF
ZONE 1F
ZONE 2F
ZONE GF
RS-LINK
AUDIO
INPUT 1
AUDIO
INPUT 2
Fault
Key Set function
(1) (Not set)
(2) Talkkey(xed)
(3) Zone Clear
(4) Failure Output Reset
(5) Lamp Test
Key Set function Contents (failure pattern)
(6) Failure Output Receipt VX-3004F
(7) Failure Output Receipt AmplierZONEGF
(8) Failure Output Receipt AmplierZONE1F
(9) Failure Output Receipt AmplierZONE2F
(10) Failure Output Receipt Speaker ZONE GF
(11) Failure Output Receipt Speaker ZONE 1F
(12) Failure Output Receipt Speaker ZONE 2F
