Chapter 3 OPERATION

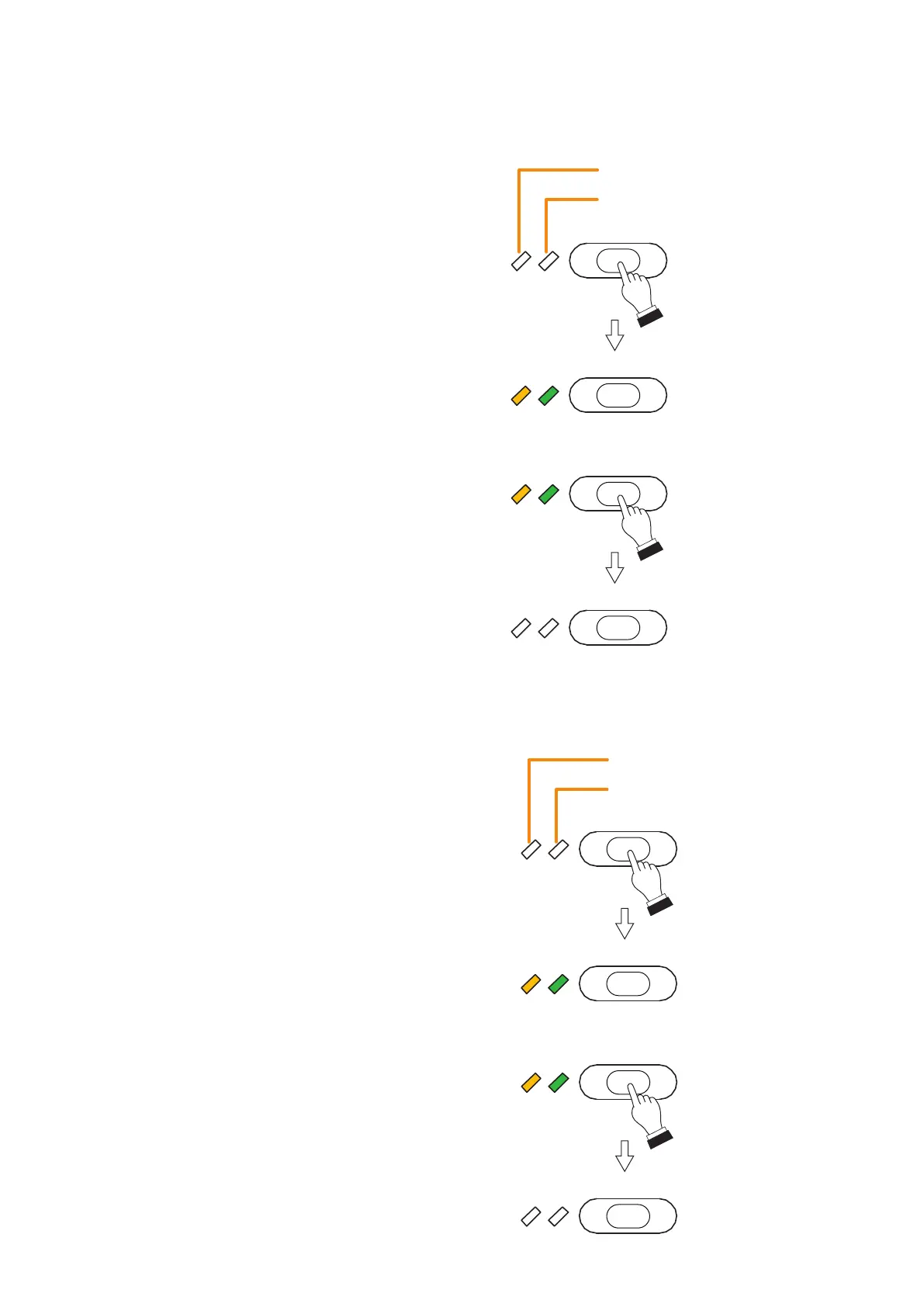

Step 1. Press the Intended control input key when the
Control status indicator is unlit.
The control input assigned to the Intended
control input key becomes active and the
Control status indicator lights yellow.
Note
Operation is invalid even if you press the
Intended control input key when the Control
status indicator is lighting yellow though its key
is not pressed. This is such a case when the
control input is placed in Active state through
other switch operation.
Step 2. Press the Intended control input key again to
make the control input Inactive.
The Control status indicator will go off.
7.2. Intended Control Input Operation
The Intended control input of the VX-3000F can be operated using the Remote microphone's function key.
Step 1. Press the Intended control output (pulse) key
when the Control status indicator is unlit.
The Control output pattern assigned to the
Intended control output (pulse) key is activated
and the Control status indicator lights yellow.
Note
Operation is invalid even if you press the
Intended control output (pulse) key when the
Control status indicator is lighting yellow though
its key is not pressed. This is such a case when
the control output pattern is being activated by
other Event.
Step 2. Press the Intended control output (pulse) key
again to end Control output pattern activation.
The Control status indicator will go off.
7.3.IntendedControlOutputOperation(Pulse)
The intended control output of the VX-3000F can be operated using the Remote microphone's function key.
