ENGINE OPERATION 57
7

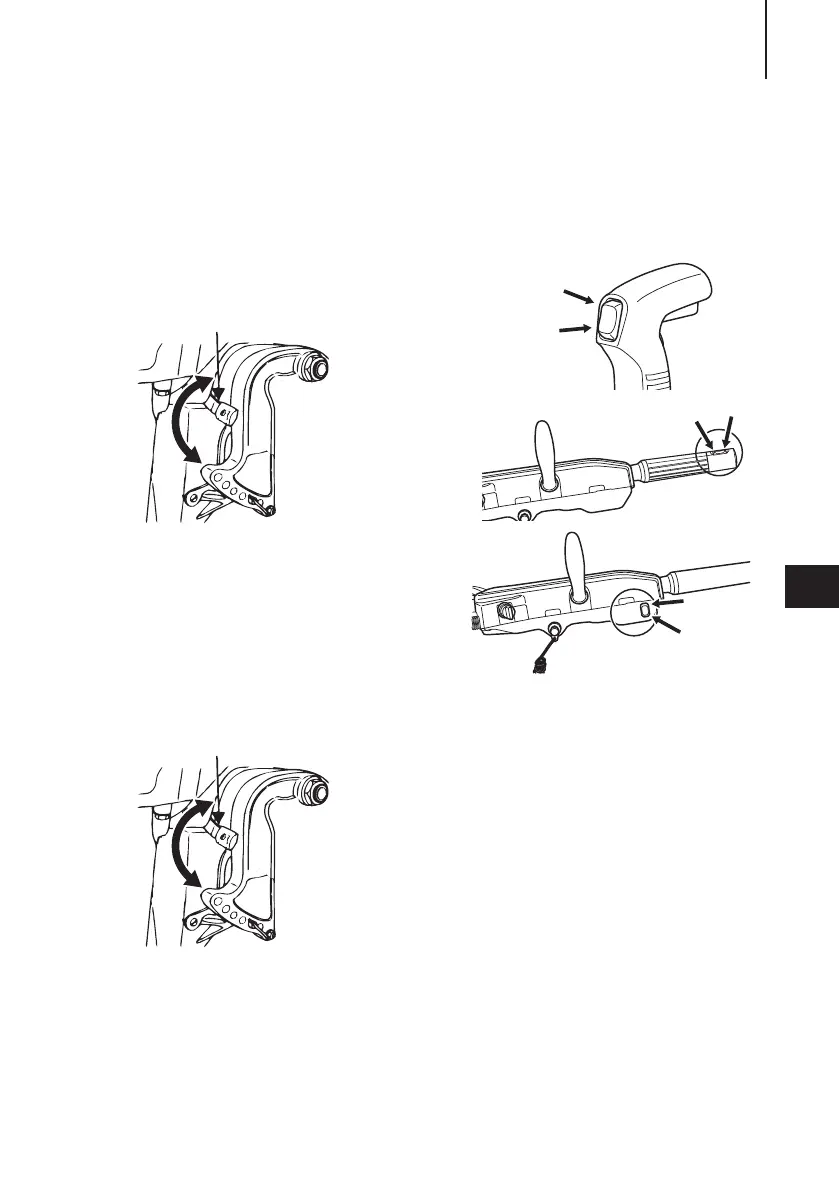

Manual tilt type
1. Shallow water running position:
Put the reverse lock lever in the tilt up
position, and tilt up the outboard
motor to put the outboard motor in
the shallow water running position.
1. Reverse lock lever
2. Tilt down position
3. Tilt up position
2. Return to normal running position:
Put the reverse lock lever in the tilt
down position, slightly lift up the out-
board motor, and then put it down.
1. Reverse lock lever
2. Tilt down position
3. Tilt up position
ENOM00069-A
Power Tilt type
1. Operate the Power Tilt switch and tilt
the outboard motor up into desired
shallow water running position.
1
2
3
ENOF00059-0
