INSTALLATION 19
5

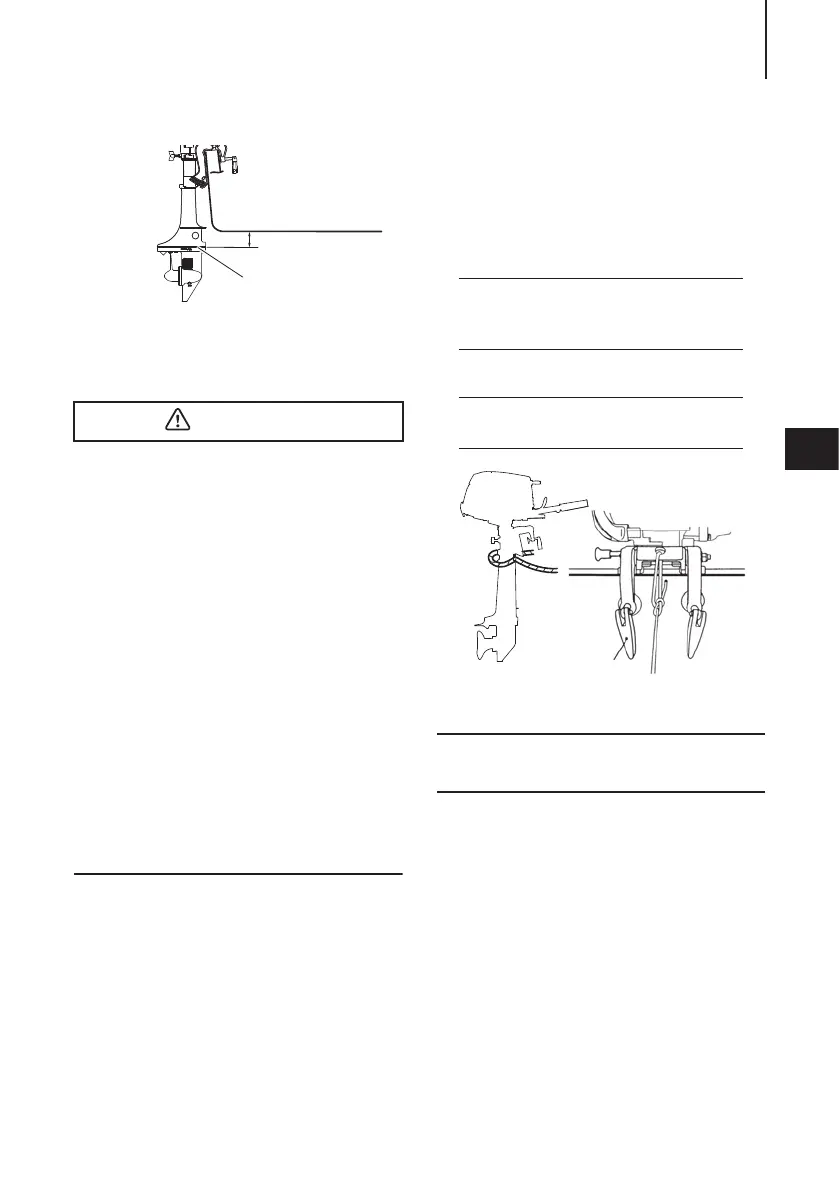

1. Bottom of hull
2. Anti ventilation plate
ENOW00007-A
z Before beginning the running test, check
that the boat with maximum capacity
loading floats on the water in a proper
attitude. Check the position of water sur-
face on the driveshaft housing. If the
water surface is near the bottom cowling,
in high waves, water may enter the engine
cylinders.
z Incorrect outboard motor mounting
height or existence of underwater
object(s), such as hull bottom design,
bottom surface conditions or underwater
accessories, can cause water spray possi-
bly reaching the engine through an open-
ing of the bottom cowling during cruising.
Exposing the engine to such conditions for
extended periods can lead to severe
engine damage.
z Tighten the clamp screws sufficiency,
otherwise falling down of outboard could
be happened.
ENOM00830-1
Mounting the outboard motor
1. Set the outboard motor to appropri-
ate position.
2. Tighten the clamp screws by turning
their handles.
3. Secure the outboard motor to the
boat with a rope to prevent acciden-
tal loss of the outboard motor over-
board.
ENON00930-0
Note
Do not use tools to tighten clamp screws.
Over tightening could result in damage to
the clamp screws and clamp brackets.
ENON00002-0
Note
A rope is not included in the standard
accessories.
1. Clamp screw
ENOM00726-A
High altitude:
When engine operates at high altitude
(over 1000m/3280ft) engine may need to
have a high altitude kit installed. Other-
wise, operating the engine at high altitude
may increase its emissions and decrease
fuel efficiency and performance. Contact
authorized Tohatsu dealer for more
detail.
CAUTION
1
2
30−50 mm
(1.2−2 in)
ENOF01608-0
2. Altitude adjustment kit
requirement
To Next Page
