INSPECTION AND MAINTENANCE50
10
ENOW00928-0
Wipe off gear oil well immediately if spilled
and dispose of it in accordance with local
fire prevention and environment protection
regulations.
ENON00032-0
Note
If water in the oil, giving it a milky colored
appearance. Contact your dealer.
ENOM00232-B
Propeller replacement
ENOW00084-0
z Do not begin propeller removal and instal-
lation procedure with spark plug caps
attached, shift in forward or reverse,
main switch at other than “OFF”, engine
stop switch lock attached to the switch,
and starter key attached, or engine could
accidentally start leading to serious per-
sonal injury. Disconnect battery cable if
possible.
z The propeller edge is thin and sharp. Wear
the groves during replacement to protect
your hands.
ENOW00208-0
z Do not install propeller without thrust
holder, or propeller boss could be dam-
aged.
z Do not reuse split pin.
z After installing split pin, spread the pin
apart to prevent it from falling out which
could lead to the propeller coming off
during operation.
A worn-out or bent propeller will lower
the motor's performance, and cause
engine trouble.

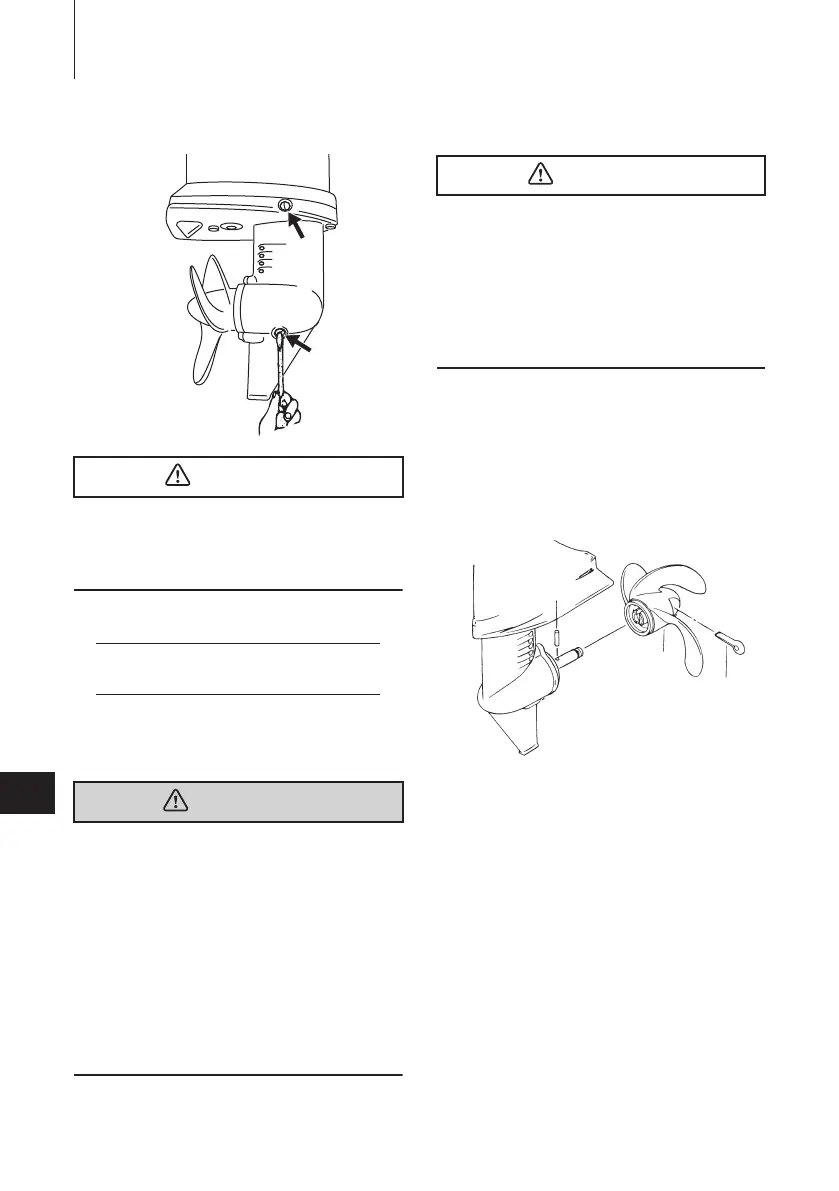

1. Pull out the split pin from the propel-
ler boss and remove the propeller
from the shaft.
1. Shear pin
2. Propeller
3. Split pin
2. Remove the shear pin from the shaft.
3. Apply water proof grease to the pro-
peller shaft before installing a new
propeller.
4. Install the propeller with a new shear
pin.
CAUTION
WARNING
CAUTION
2
3
1
ENOF00242-0
To Next Page
