Modular Conversoin Receiver Model: R-CM
5-2. Installation/Remove way of DIN rail
5-2-1. How to attatch on DIN rail
[Preparation]
● 35mm width DIN rail * R-CM standard accessory
* Should be attached R-CM on the DIN ral and install the extension BOX IO-CM and BZ-CM.

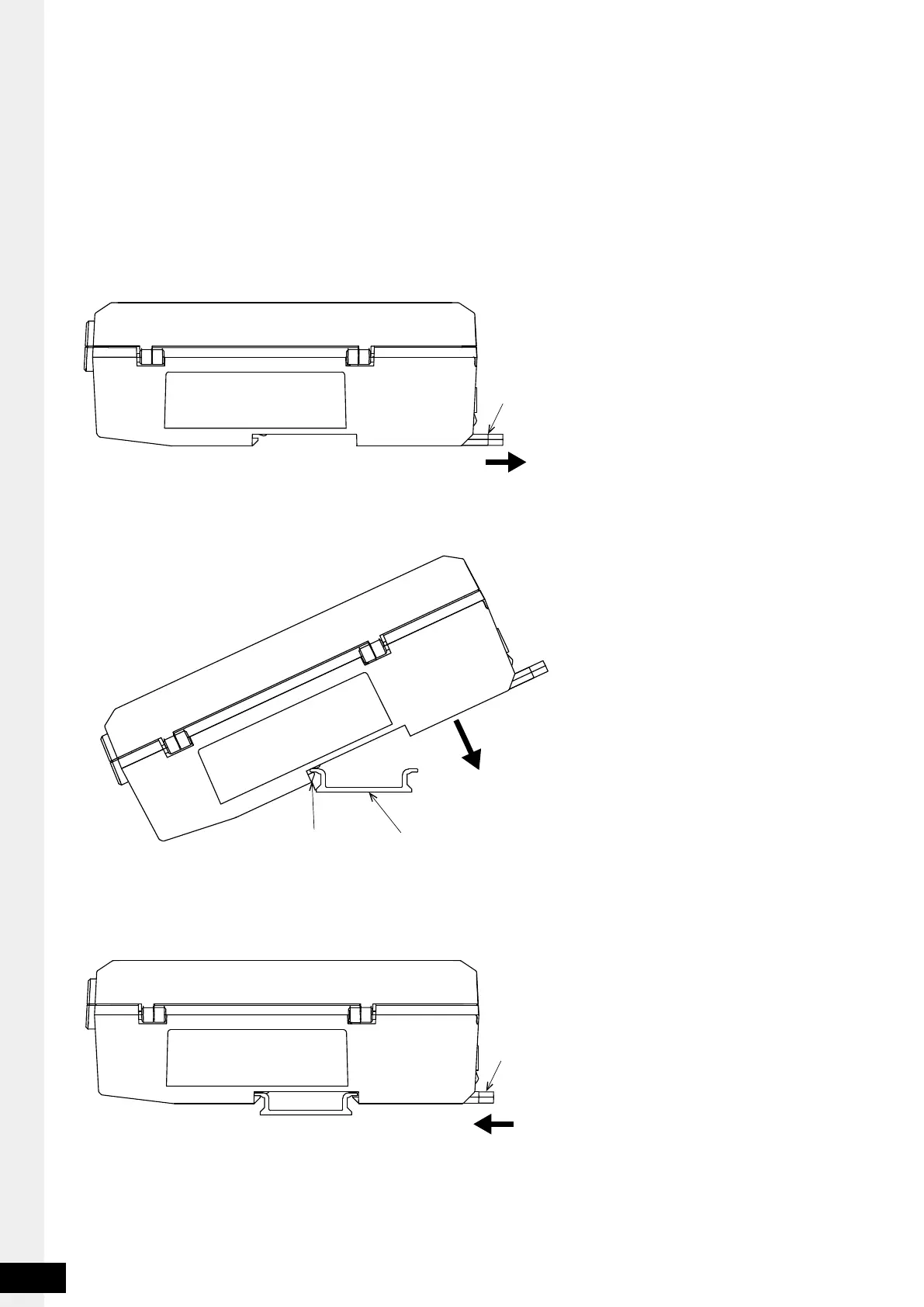

1. Pull out the white rocker on the R-CM in the direction of the arrow until it clicks into place.
Locker
2. Hook the nail of the R-CM body on the DIN rail.
Nail DIN rail
3. Push the extracted rocker in the direction of the arrow until it clicks.
Conrm R-CM is securely xed to the DIN rail.
Locker
