Modular Conversion Receiver Model: R-CM
11

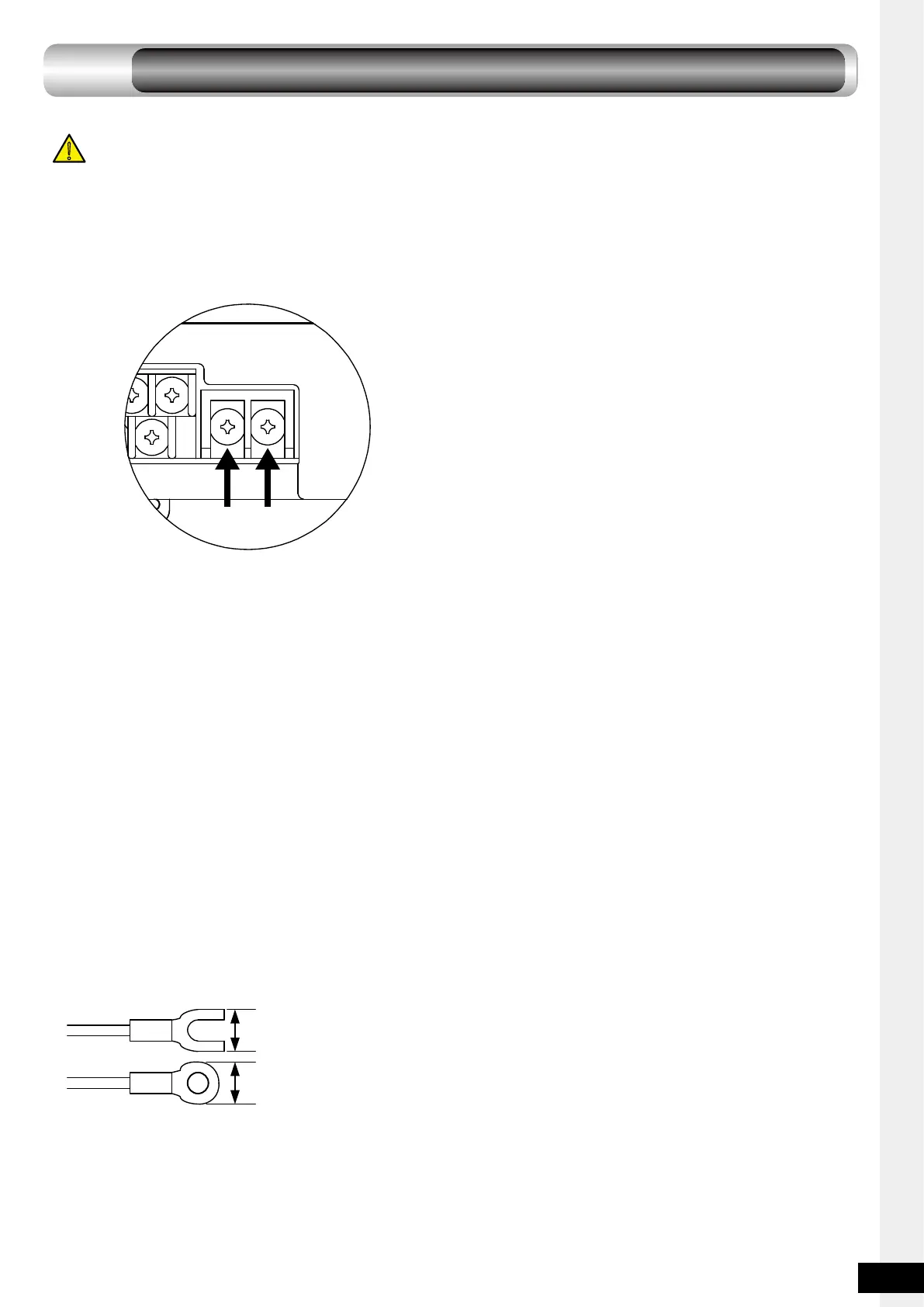

4 Precaution for Use
4-1. Power Source
[ Caution ]
Be sure to use 24 V DC for the R-CM power supply.
* An optional AC adapter BA-8R is required to use AC100V - 240V power source
* Tightening torque of terminal screws are T = 50cN • m.
* Be careful not to attach 24 VDC and GND in reverse.
！
GND DC24V
4-2. Usage Environment
● Use the product where there is no metal structure around as much as possible.
● Do not place the antenna of the receiver in the immediate vicinity of metal pillars, electric wires,
iron pipes, etc. Especially when the antenna and piping are parallel, the communication status may
deteriorate.
● Avoid using in the vicinity of machines that generate electromagnetic noise, such as welding machines,
electrical discharge machines, and personal computers.
R-CM Power Terminals
4-3. In/Output Terminals
● Make sure that the power of the equipment connected to the receiver is turned off
before wiring.
● Use crimp terminals with the following sizes for wiring to the OUT PUT terminal and
power supply terminal.
* Tightening torque of terminal block screws are T = 50cN • m.
Bellow 5.8mm
Bellow 5.8mm
To Next Page
