3-4. In/Output Connector and LED
Receive LED3
Receive LED4
Receive LED1 Receive LED2

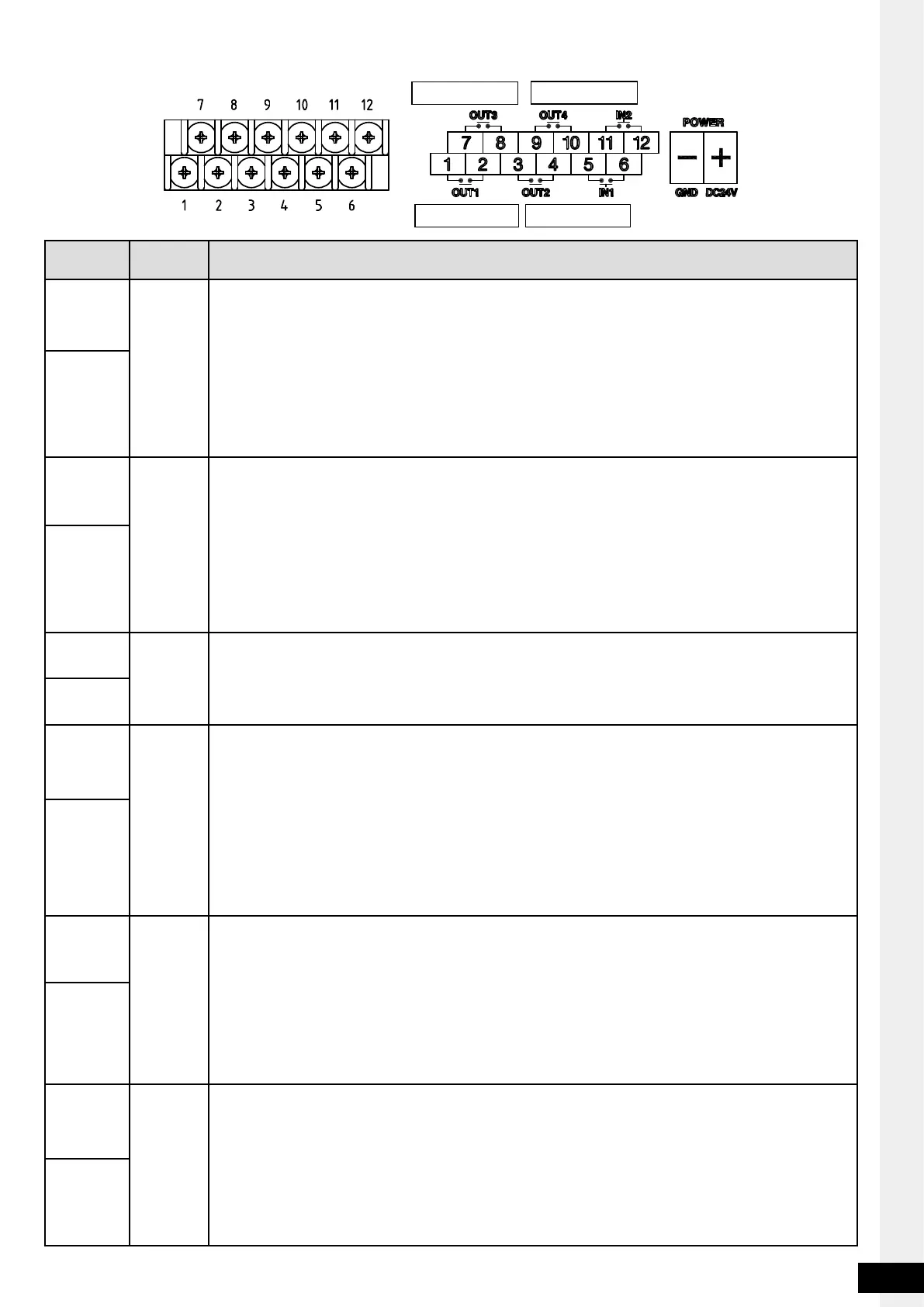

Pin No. Terminal Function
1
OUT1
Completion signal type:
Output a relay signal when receive the same ID signal set at OUT1.
Data transfer type:
When the tightening torque value from the wrench registered in ID1 is within the
set Hi/Lo limit values, a signal outputs from OUT1.
* No polarity due to no voltage contact output.
* Receive LED No.1 lights up during output.
2
3
OUT2
Completion signal type:
Output a relay signal when receive the same ID signal set at OUT2.
Data transfer type:
When the tightening torque value from the wrench registered in ID1 is not within
the set Hi/Lo limit values, a signal is outputs from OUT2.
* No polarity due to no voltage contact output.
* Receive LED No.2 lights up during output.
4
5
IN1
Input terminla for reset input.
Input a reset signal to reset relay signal output.
Required 0.1 seconds or more of pulse input.
6
7
OUT3
Completion signal type:
Output a relay signal when receive the same ID signal set at OUT3.
Data transfer type:
When the tightening torque value from the wrench registered in ID2 is within the
set Hi/Lo limit values, a signal is outputs from OUT3.
was within Hi/Lo judgment range.
* No polarity due to no voltage contact output.
* Receive LED No.3 lights up during output.
8
9
OUT4
Completion signal type:
Output a relay signal when receive the same ID signal set at OUT4.
Data transfer type:
When the tightening torque value from the wrench registered in ID2 is not within
the set Hi/Lo limit values, a signal is outputs from OUT4.
* No polarity due to no voltage contact output.
* Receive LED No.3 lights up during output.
10
11
IN2
When the torque wrench is out of use, LS torque wrench can be wired to LS-IN
and COM for back-up.
* The no voltage contact output will not be sent by inputting a LS-IN signal.
* During cont checker function is activate, this terminal take a role of END input
terminal.
Required 0.1 seconds or more of pulse input.
