Tomco DE89RB100-US - Hydraulic and Compression Cylinder Exploded View

OPERATION & MAINTENANCE
4.13
HYDRAULIC CYLINDER ROD BEARING SEAL
COMPRESSION CYLINDER PISTON WEAR BANDS
HYDRAULIC CYLINDER PISTON ROD
ROD COUPLING

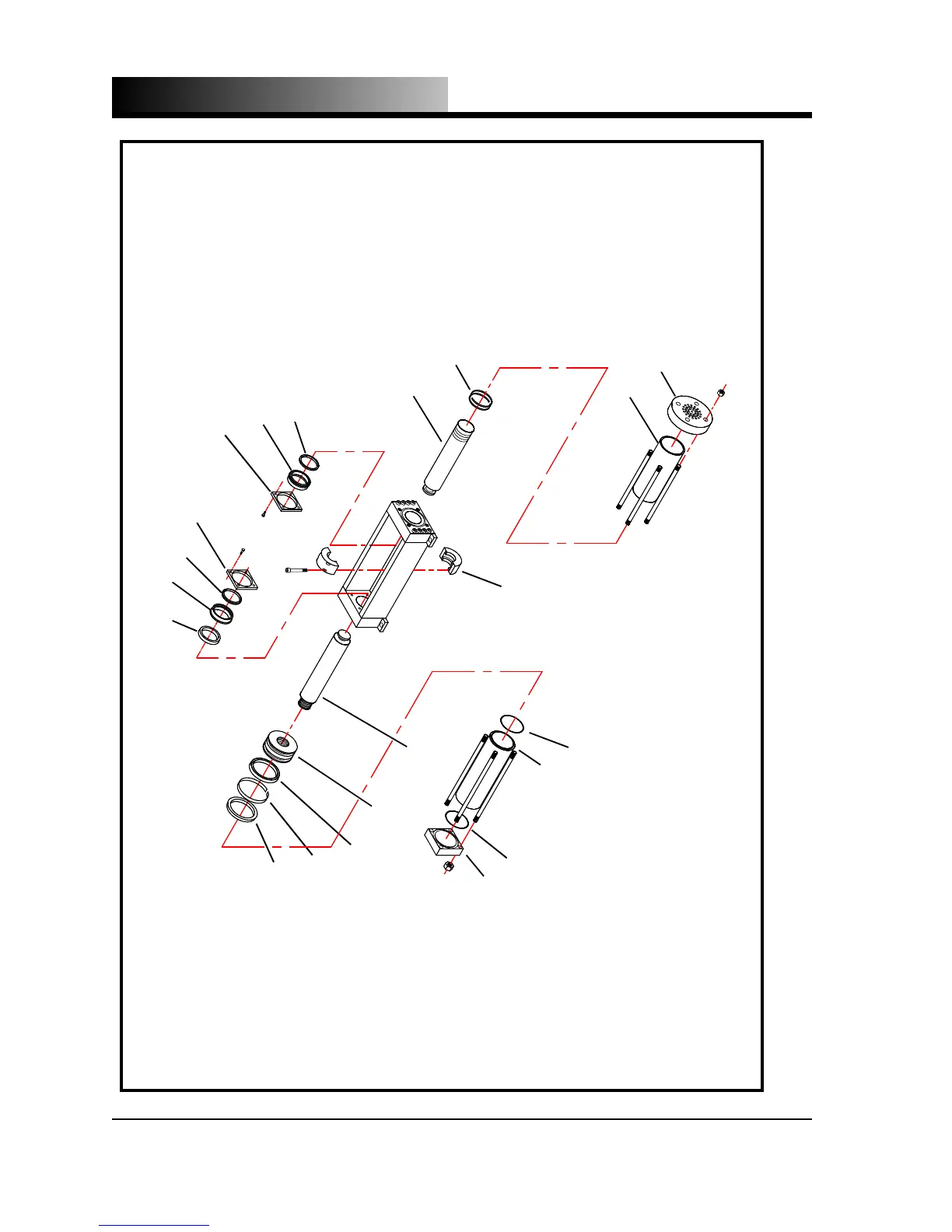

Figure 4.2.1 - Models DE89RB-100-US, HP-200 & LB-450 Hydraulic and Compression Cylinder Exploded View
COMPRESSION CYLINDER ROD & PISTON
RETAINING PLATE
COMPRESSION CYLINDER
EXTRUSION DIE
HYDRAULIC CYLINDER ROD WIPER
RETAINING PLATE
HYDRAULIC CYLINDER ROD BEARING
O-RING
HYDRAULIC CYLINDER END CAP
HYDRAULIC CYLINDER PISTON
HYDRAULIC CYLINDER PISTON SEAL
HYDRAULIC CYLINDER PISTON WEAR BAND
HYDRAULIC CYLINDER PISTON SEAL
O-RING
HYDRAULIC CYLINDER
COMPRESSION CYLINDER PISTON
COMPRESSION CYLINDER PISTON BEARING
