Alternative Mounting
23
EN
1. Remove the rubber cap from the GPS
antenna connector.
2. Insert the plug of the GPS antenna into the
GPS antenna connector on the LINK 300/
310.

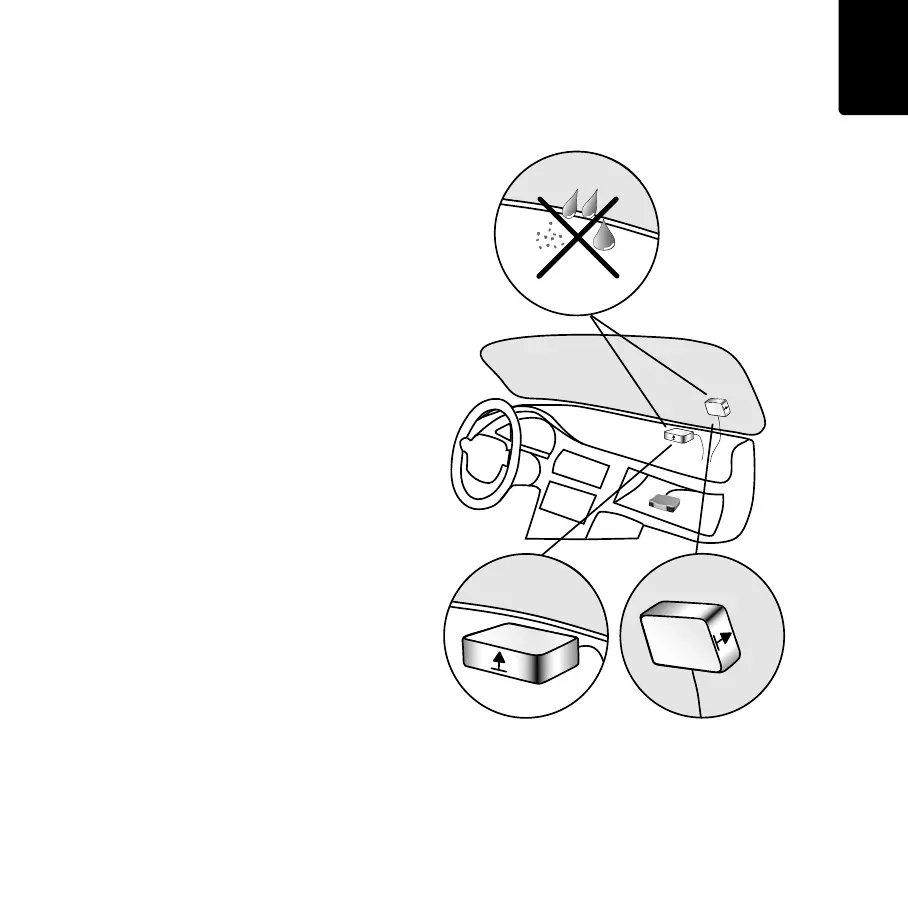

3. Prepare a smooth, clean, oil free and dry
surface in the windscreen.
4. Attach the antenna to the prepared surface
so that the top side has clear view of the
sky. Either locate a smooth metal surface or
use the extra adhesive pad.
