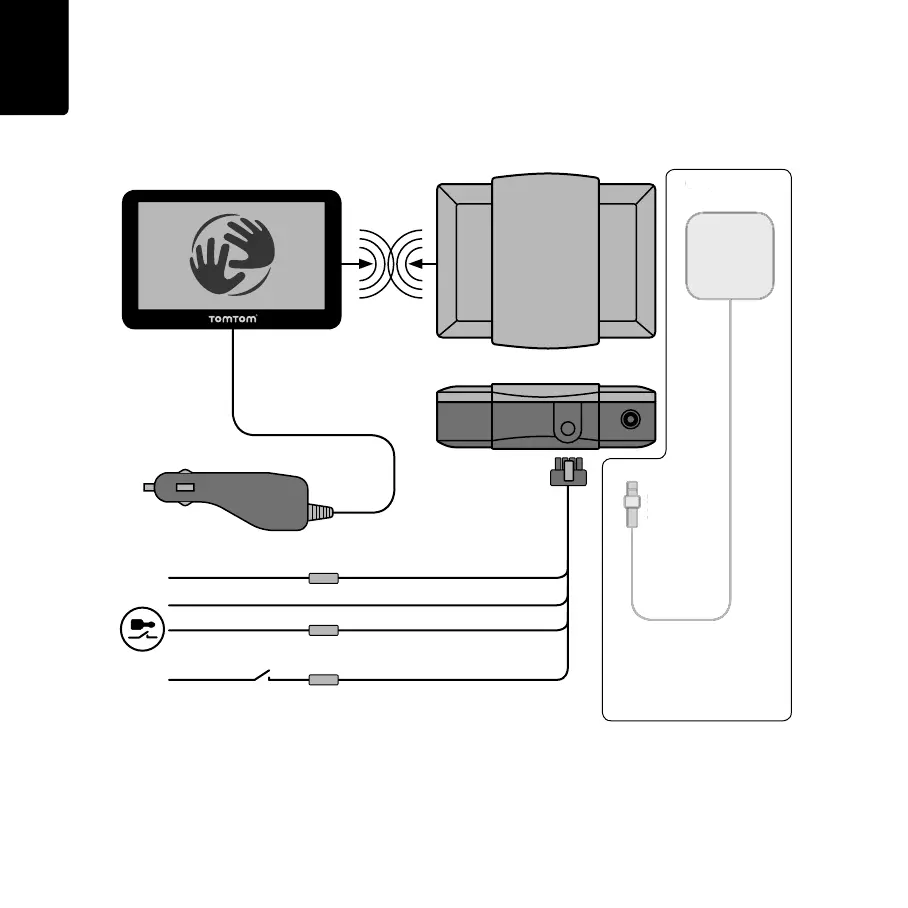

Connection overview
10
EN
Connec-
tion
overview
* See Technical data on page 27
** Make sure this wire is fused with 15 A.
SMB
GPS Antenna
S
MB
G
P
S
Antenna
TomTom GO 7000
TomTom PRO 7xxx
TomTom LINK 300/310
Bluetooth
TM
Power Cable
+9-30VClamp 30**
GNDClamp 31
IN 1+9-30V (green/blue)
(brown)
(red)
F1 2Af*
F2 2Af*
F3 2Af*
(black)
IGN
(+9-30V)Clamp 15**
Optional
IG_EN.book Page 10 Friday, June 10, 2011 3:26 PM
