Page 22

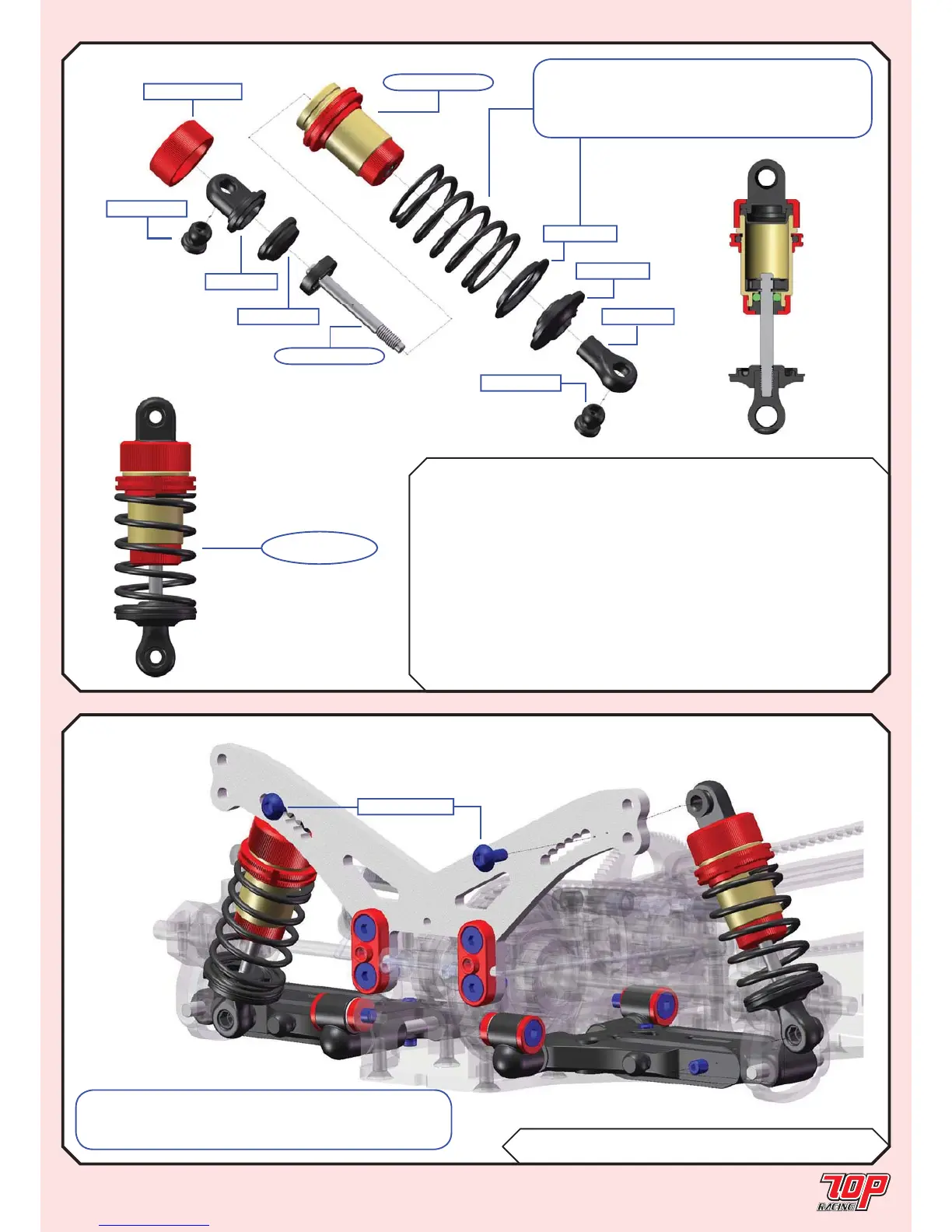

SHOCKS (cont’d)

STEP 30 (Make 4)

Rubber Foam

FRFR

BAG J Mold H-01-1 Ball Cup - 10.5mm x 2 x 2 x 2 x 2

Mold H-04-1 Damper Top Ring (Shock Top) x 2 x 2 x 2 x 2

Mold M-04-1 Damper Spring Holder x 2 x 2 x 2 x 2

Mold M-05-1 Spring Adjust Nut Spacer - 14mm x 2 x 2

TC-PSH002-1 Shock Bladder x 2 x 2 x 2 x 2

TC-PSH005RD-1 Shock Cap x 2 x 2 x 2 x 2

PA-HBS003-1 5.3mm Ball (Steel) x 4 x 4 x 4 x 4

PS-TR15600 Shock Spring (14 x 1.5 x 6.00) x 2

PS-TR15650 Shock Spring (14 x 1.5 x 6.50) x 2

PS-TF17675 Shock Spring (13 x 1.7 x 6.75) x 2

PS-TF14625 Shock Spring (13 x 1.4 x 6.25) x 2

STEP 30

FINISHED

STEP 31 (REAR)

BAG J PA-BM0306BK-1 M3x6mm Button Head Screw x 2

TC-PSH005RD-1

PA-HBS003-1

Mold H-04-1

TC-PSH002-1

from STEP 28

from STEP 29

Mold M-05-1

Mold M-04-1

Mold H-01-1

PA-HBS003-1

Note: Read the parts table very carefully to

correctly locate different parts for the front and

rear shocks of rubber asphalt edition and foam

carpet edition, respectively.

PA-BM0306BK-1

Note: Please follow the standard setup sheets on

pages 29-30 as inital setups for shock locations of rubber

asphalt edition and foam carpet edition, respectively.
