Top Photon - Shocks, Bumpers, and Control Systems

Page 21

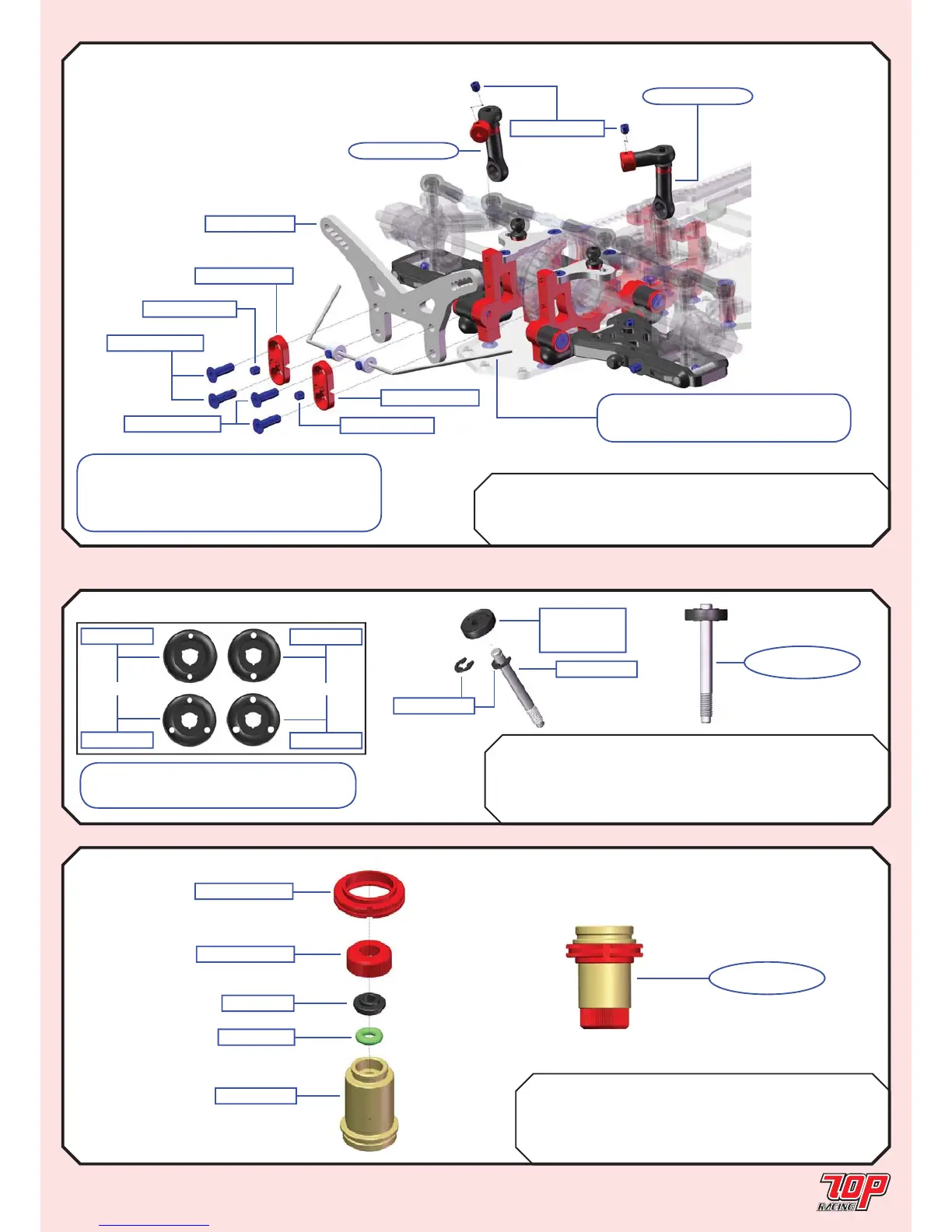

SHOCK TOWERS (FRONT)
STEP 27
BAG I TC-PCHS006-1 Front Shock Tower (3.0mm) x 1
TC-PSU006RD-1 Stabilizer Mount x 2
PA-SS0303BK-1 M3x3mm Set Screw x 4
PA-CM0310BK-1 M3x10mm Countersunk Screw x 4
SHOCKS
STEP 28 (Make 4)
TC-PCHS006-1
PA-CM0310BK-1
PA-CM0310BK-1
PA-SS0303BK-1
PA-SS0303BK-1
TC-PSU006RD-1
TC-PSU006RD-1
PA-SS0303BK-1
from STEP 25
from STEP 25
Rubber Edition: from STEP 24 (Rubber)
Foam Edition: from STEP 04 (Foam)
Rubber Foam
BAG J Mold R-01-1 Shock Piston 1.0 - 3 hole x 4
Mold-R-02-1 Shock Piston 1.2 - 3 hole x 4
TC-PSH007-1 Shock Shaft x 4 x 4
PA-ER0020-1 E-Clip x 8 x 8
BAG J TC-PSH004-1 Shock Body x 4
TC-PSH006RD-1 Shock Bottom x 4
TC-PSH003RD-1 Shock Spring Adjuster x 4
Mold R-05-1 Damper O-Ring Holder x 4
PP-010320-1 3mm Silicon O-ring x 4
STEP 29 (Make 4)
Mold R-0x-1
See parts table
for piston size
TC-PSH007-1
TC-PSH007-1
STEP 28
FINISHED
TC-PSH003RD-1
TC-PSH006RD-1
Mold R-05-1
PP-010320-1
TC-PSH004-1
STEP 29
FINISHED
Note: You could choose from a variety
of shock piston to suit your needs.
Mold R-03-1
Mold R-01-1
Mold R-04-1
Mold R-02-1
1.2mm hole
1.0mm hole
Note: Apply small amount of Locktite
at M3x3 set screw to secure it from its
position inside the stabilizer mount to hold the
stabilizer bar in place without loosening.
