Rubber Foam

BAG I Mold H-01-1 Ball Cup - 10.5mm x 4 x 2

Mold H-02-1 Ball Cup - 14.5mm x 4 x 2

TC-PSU003RD-1 Threaded Sway Bar Adjuster x 4 x 2

PA-HBS003-1 5.3mm Ball (Steel) x 4 x 2

AW-S250RD-1 3 x 5.5 x 2.5mm Collar (Red) x 4 x 2

PA-SS0310BK-1 M3x10mm Set Screw x 4 x 2

Page 20

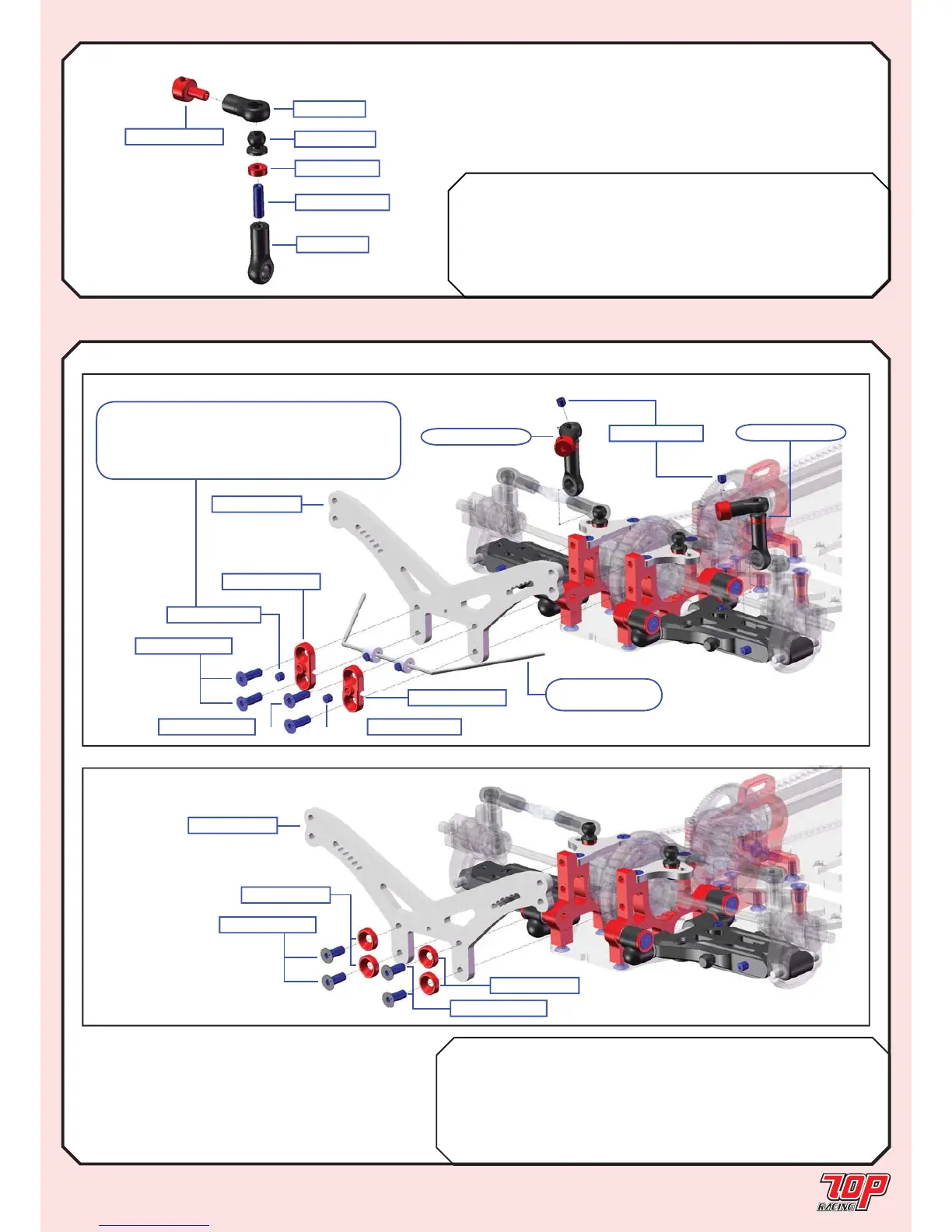

STABILIZER LINK

STEP 25 (Rubber Asphalt Edition - Make 4; Foam Carpet Edition - Make 2)

Rubber Foam

BAG I TC-PCHS007-1 Rear Shock Tower (3.0mm) x 1 x 1

TC-PSU006RD-1 Stabilizer Mount x 2

PA-SS0303BK-1 M3x3mm Set Screw x 4

PA-CM0310BK-1 M3x10mm Countersunk Screw x 4

AW-BW32RD-1 Large Bevel Washer (Red) x 4

PA-CM0308BK-1 M3x8mm Countersunk Screw x 4

SHOCK TOWERS (REAR)

STEP 26

TC-PSU003RD-1

Mold H-01-1

TC-HBS003-1

AW-S250RD-1

PA-SS0310BK-1

Mold H-02-1

Foam Carpet Edition

PA-CM0308BK-1

TC-PCHS007-1

PA-CM0308BK-1

AW-BW32RD-1

from STEP 24

(Rubber)

Rubber Asphalt Edition

TC-PCHS007-1

PA-CM0310BK-1

PA-SS0303BK-1

TC-PSU006RD-1

PA-SS0303BK-1

from STEP 25

Note: Apply small amount of Locktite

at M3x3 set screw to secure it from its

position inside the stabilizer mount to hold the

stabilizer bar in place without loosening.
