Page 3

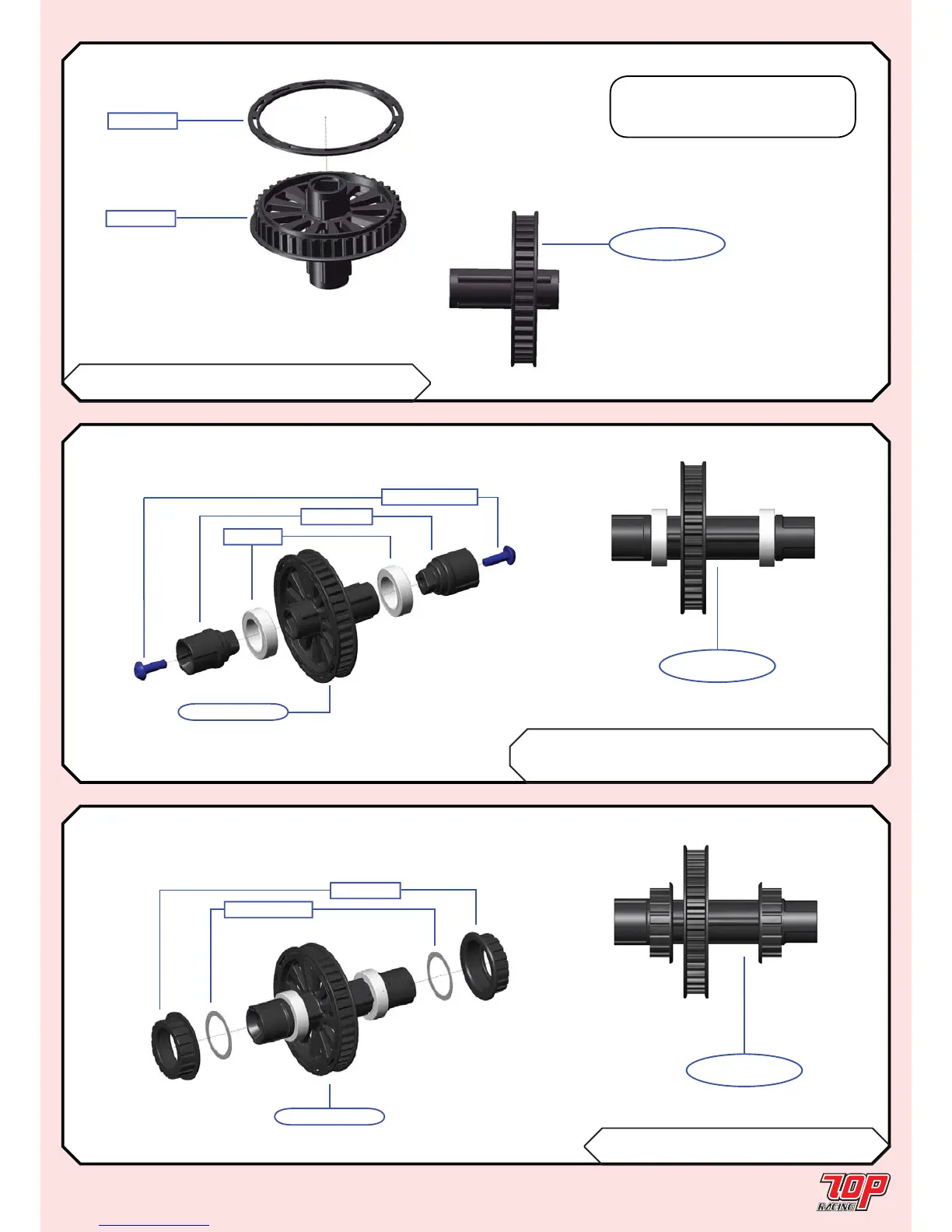

Mold J-03-1

Mold J-01-1

STEP 01

FINISHED

SPOOL (Rubber Asphalt Edition Only)

BAG A Mold J-01-1 Spool x 1

Mold J-03-1 40T Flange - One-way/Spool x 1

Note: Apply small amount of

instant glue in between Mold J-03-1

and Mold J-01-1.

STEP 01

BAG A 6700ZZ-1 10 x15 x 4mm Bearing x 2

PA-BM0314BK-1 M3x14mm Button Head Screw x 2

Mold K-01-1 Spool Outdrive x 2

STEP 02

BAG A PA-101215-C-1 12 x 0.3mm Shim x 2

Mold L-01-1 Bearing Cam x 2

STEP 03

STEP 02

FINISHED

from STEP 01

6700ZZ-1

Mold K-01-1

PA-BM0314BK-1

PA-101215-C-1

Mold L-01-1

from STEP 02

STEP 03

FINISHED
