19-3
19 SPECIAL ACCESSORIES

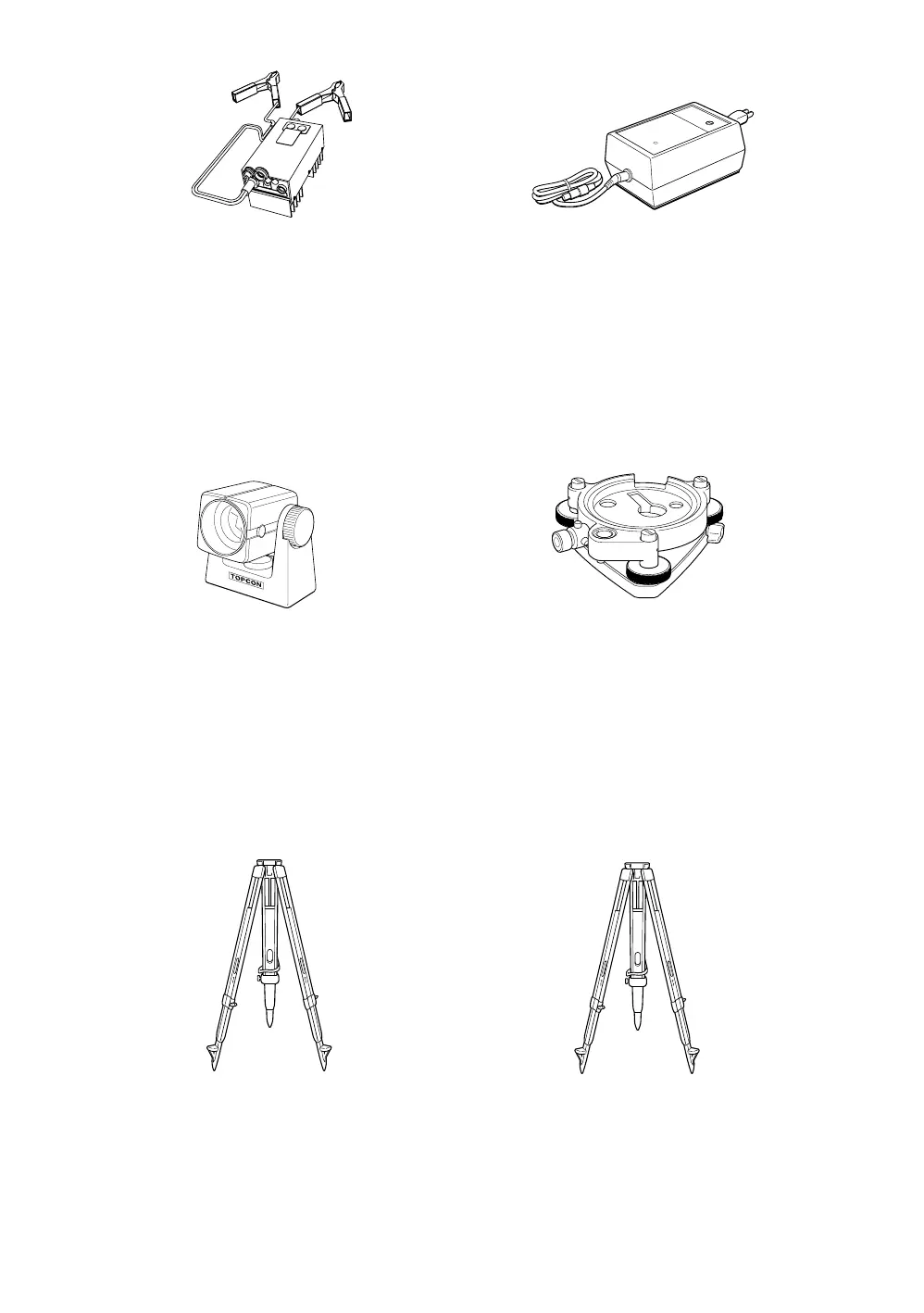

Auto Converter AC-6
● Input voltage : DC12V
● Output voltage : DC 8.4V
±5%
● Current rating : 3A
● Connection cable length : Approx. 3m
● External dimensions :
100(L) x 50(W) x 52(H) mm
● Weight : Approx. 0.3kg
Battery charger BC-6 (for BT-3L)
● Input voltage:100, 120, 220, 240V
AC: ±10% 50/60 Hz
● Power consumption: 15VA approx.
● Charging time:
approx. 15 hour (+20°C) to charge BT-3L
● Operation temperature range:
+10°C to +40°C (+50 to +104°F)
● External dimensions:
142(L) × 96(W) × 64(H) mm
● Weight:1.0kg
Mini prism
The mini prism (25.4mm) is made from precision
ground glass and mounted in high impact plastic
housings.
● The mini has the unique capability of being
positioned either at a "0" or "–30" with the same
prism
Prism sets
See the description on 21 “PRISM SYSTEM”.
Optical plummet tribrach
This is detachable tribrach having built-in optical
plummet telescope.
(Compatible with Wild)
Aluminum extension leg tripod, Type E
● Flat head 5/8" × 11 threads with adjustable legs.
Wide-frame extension leg tripod, Type E (Wood)
● Flat head 5/8" × 11 threads with adjustable
legs.
To Next Page
