132
7 CHECK AND ADJUSTMENT
7.5.2
Showing Compensation Systematic Err
or of Instrument
1

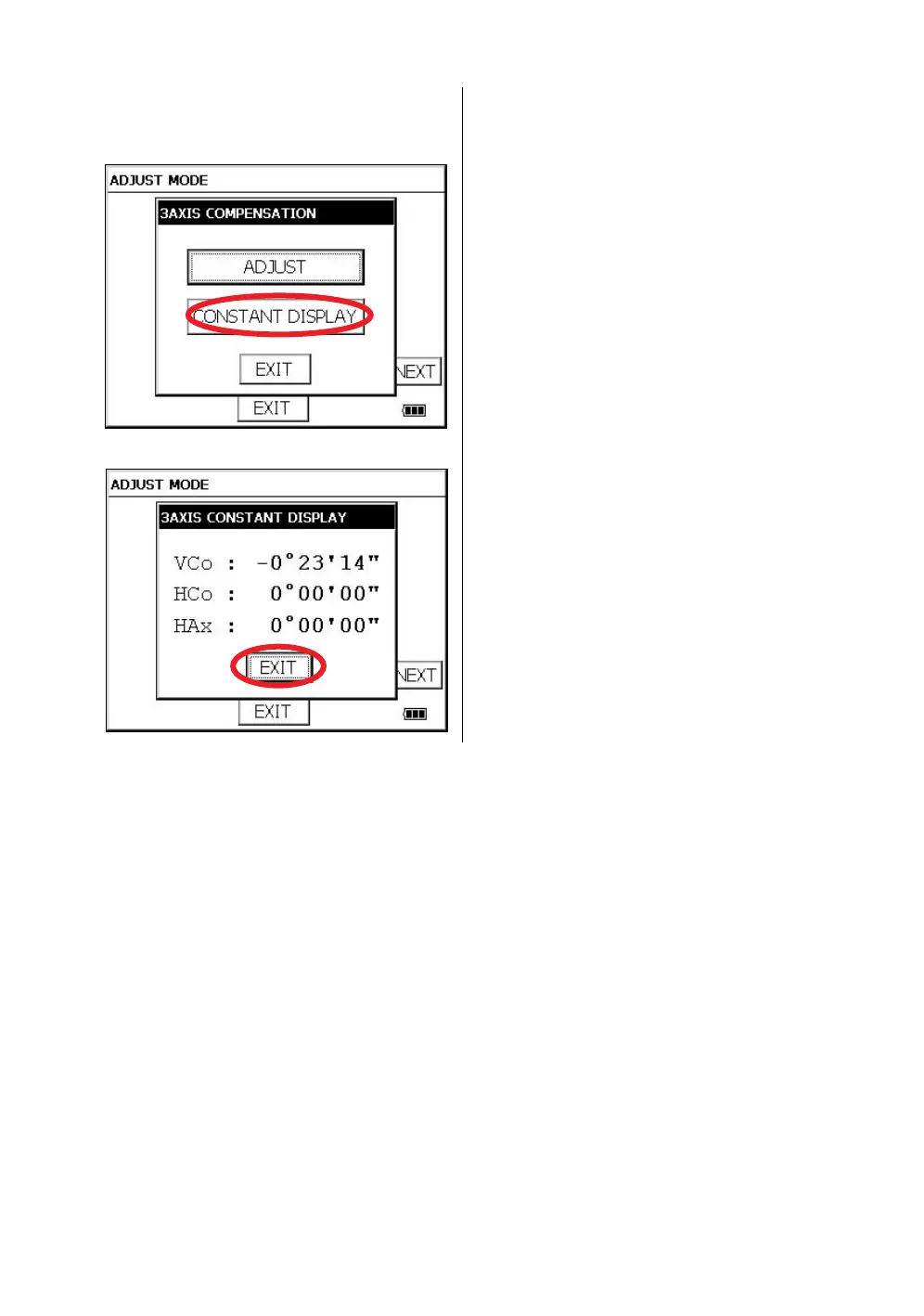

Press the [ADJUST] icon from the main menu.
2
Press the [3AXIS COMPENSA
TION] ke
y
.
3
Press the [CONST
ANT DISPLA
Y] ke
y
.
4
Press the [EXIT] ke
y
.
The display returns to previous men
u.
